Omron V680S Series User Manual

Section 8
Reader/Writer Installation Precautions
V680S-HMD66-EIP

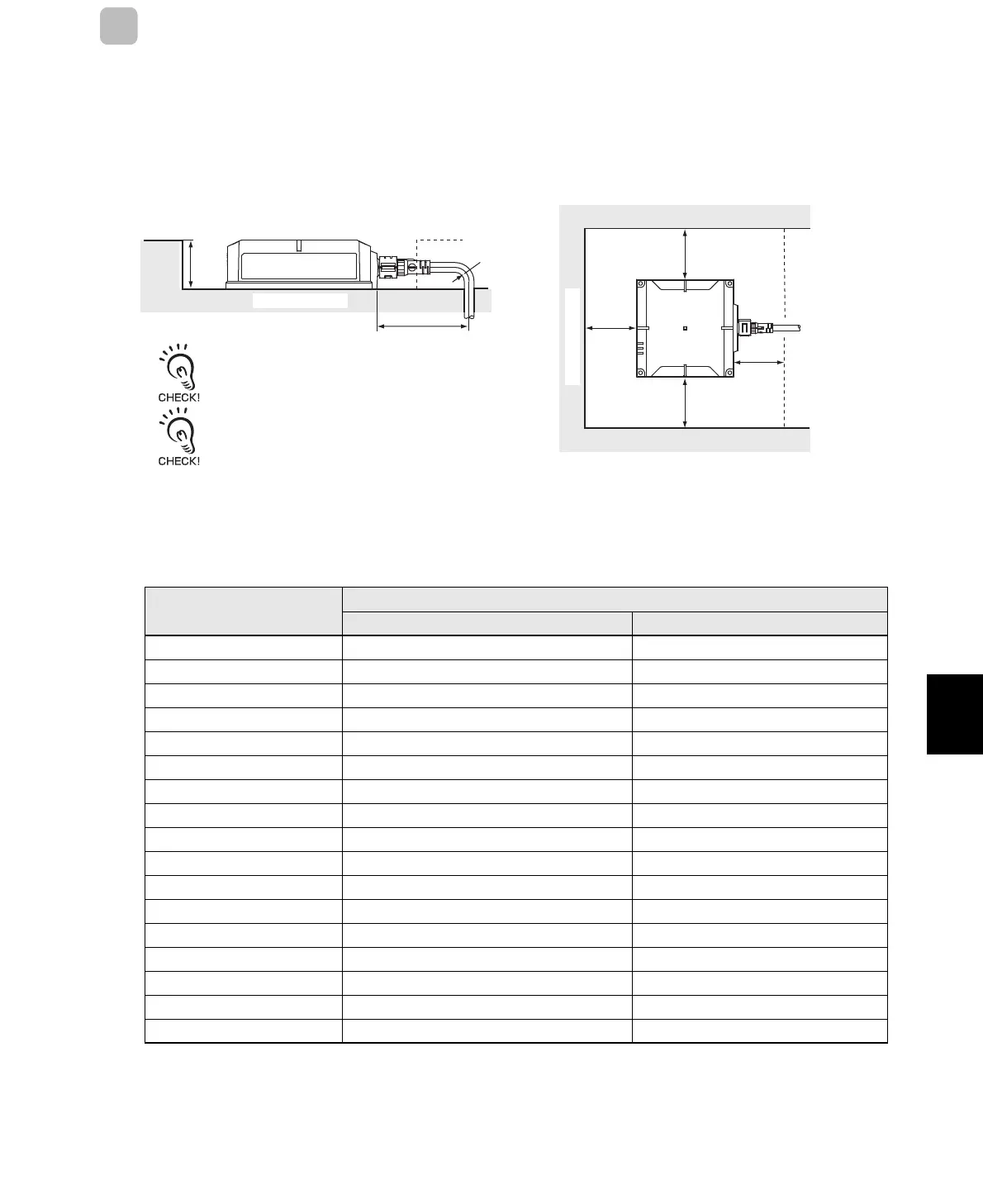

 Influence of Surrounding Metal on Reader/Writer
The Reader/Writer can be surface-mounted or it can be embedded in metal to protect it from collisions.
If you embed the Reader/Writer in metal, separate it at least 160 mm from any metallic surface to
prevent malfunctions. If the distance between surrounding metal and the Reader/Writer is less than
160 mm, the Reader/Writer communications range will be greatly reduced.
Do not allow the height of the metal to exceed the height of the Reader/Writer.
 Mutual Interference of Reader/Writers
To prevent malfunctioning due to mutual interference when using more than one Reader/Writer, leave
sufficient space between them as shown in the following diagrams.
If the distance between the Reader/Writers is too short, read / write distance will be reduced.
RF Tag model
Mounting distance
Installing the Reader/Writer facing each other Installing the Reader/Writer in parallel
V680-D1KP54T 340 mm 190 mm
V680-D1KP66T 410 mm 190 mm
V680-D1KP66MT 300 mm 180 mm
V680-D1KP66T-SP 410 mm 190 mm
V680-D1KP58HTN 500 mm 170 mm
V680-D8KF67 360 mm 150 mm
V680-D8KF67M 280 mm 160 mm
V680-D8KF68A (horizontally) 510 mm 180 mm
V680-D8KF68A (Vertically) 500 mm 170 mm
V680S-D2KF67 460 mm 230 mm
V680S-D2KF67M 300 mm 230 mm
V680S-D8KF67 580 mm 250 mm
V680S-D8KF67M 280 mm 220 mm
V680S-D2KF68 750 mm 220 mm
V680S-D2KF68M 420 mm 220 mm
V680S-D8KF68 600 mm 240 mm
V680S-D8KF68M 360 mm 220 mm
40 mm
max.
Radius:
40 mm min.
90 mm min.
160 mm min
160 mm
min.
160 mm min.
160 mm
min.
Metallic material
Metallic material
Provide a Cable bending radius of 40 mm or more.
The communications range will be reduced significantly
if the Reader/Writer is installed closer than 160 mm to
metal surfaces.
