Omron V680S Series User Manual

Section 8
RF Tag Installation Precautions
 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.

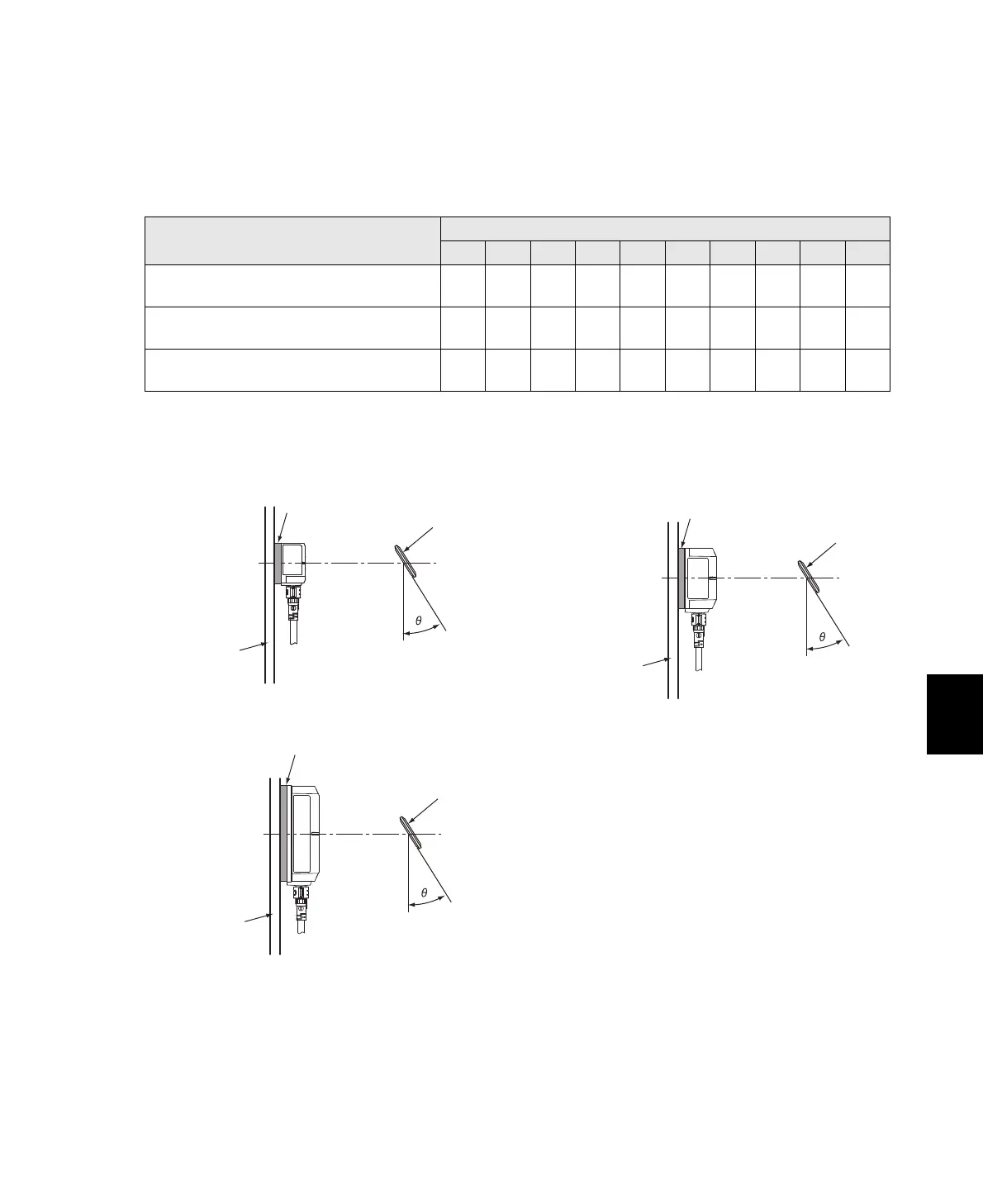

 Rates of Change in Communications Range for Inclination of V680-D1KP54T
 Measurement Conditions
RF Tag inclination ()
0 10 20 30 40 50 60 70 80 90
V680S-HMD63-EIP and V680-D1KP66T
0% 0% -2% -5% -9% -14% -21% -32% -49% ---
V680S-HMD64-EIP and V680-D1KP54T
0% -1% -3% -6% -12% -19% -29% -43% -70 ---
V680S-HMD66-EIP and V680-D1KP54T
0% -1% -3% -6% -11% -18% -27% -42% -67 ---
• V680S-HMD63-EIP and V680-D1KP54T • V680S-HMD64-EIP and V680-D1KP54T
• V680S-HMD66-EIP and V680-D1KP54T
RF Tag
Metallic material
Reader/Writer
Non-metallic material
RF Tag
Metallic material
Reader/Writer
Non-metallic material
RF Tag
Metallic material
Reader/Writer
Non-metallic material
