Omron V680S Series User Manual

Section 8 RF Tag Installation Precautions
 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.

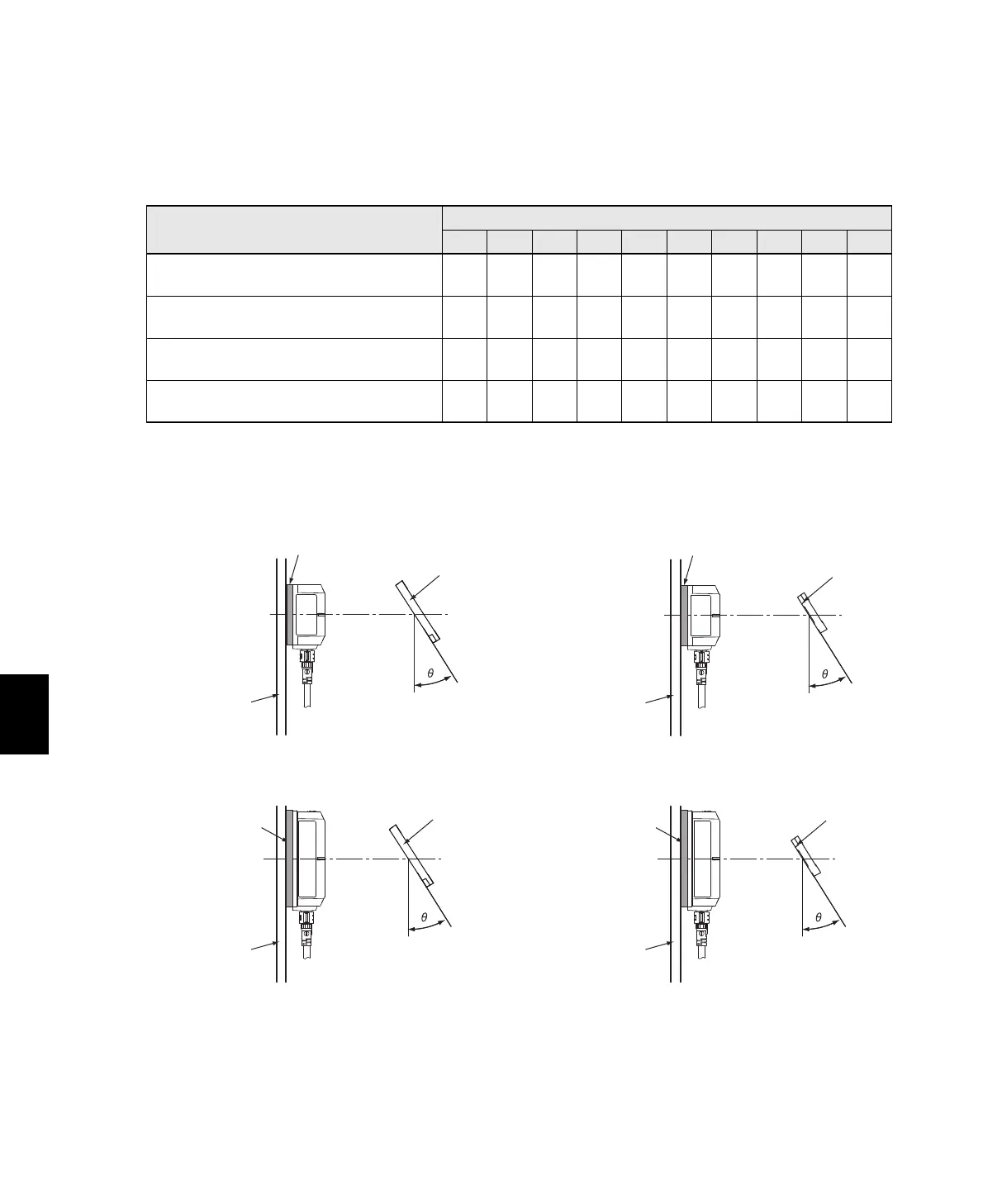

 Rates of Change in Communications Range for Inclination of V680S-D2KF68M
 Measurement Conditions
RF Tag inclination ()
0 10 20 30 40 50 60 70 80 90
V680S-HMD64-EIP and V680S-D2KF68M
horizontally
0% 0% -1% -3% -5% -9% -17% -32% --- ---
V680S-HMD64-EIP and V680S-D2KF68M
vertically
0% -2% -4% -7% -12% -19% -31% -51% --- ---
V680S-HMD66-EIP and V680S-D2KF68M
horizontally
0% -1% -2% -4% -8% -13% -23% -43% --- ---
V680S-HMD66-EIP and V680S-D2KF68M
vertically
0% -1% -4% -7% -12% -21% -33% -58% --- ---
• V680S-HMD64-EIP and V680S-D2KF68M
Horizontally
• V680S-HMD64-EIP and V680S-D2KF68M
Vertically
• V680S-HMD66-EIP and V680S-D2KF68M
Horizontally
• V680S-HMD66-EIP and V680S-D2KF68M
Vertically
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
Metallic material
RF Tag
Non-metallic material
Reader/Writer
Metallic material
RF Tag
