Omron V680S Series User Manual

Section 2 Functions
RFID System Maintenance
Communications performance can be affected by environmental factors around the RFID System
(including metal objects, the positional relationship between the Reader/Writer and RF Tags, and
noise). You can use the RFID System maintenance functions to check the leeway in communications
and achieve more stable device operation.
Refer to GET FIRMWARE VERSION in Section 5 Host Communications Specifications for the procedure to check the firmware
version.
p.132
You cannot use the maintenance functions if you are using the FIFO Repeat communications option.
 Communication Diagnostic
This function diagnoses the communications leeway whenever the Reader/Writer communicates with
an RF Tag, displays the results on an operation indicator, and reports the results to the host device. It
will help you achieve a more stable Reader/Writer and RF Tag installation and enable monitoring the
status of operations.
The operation indicator lights green for a stable communication, yellow for an unstable communication,
and red for a communications error.
Yellow, which indicates an unstable communication, means that there is only 10% to 30% leeway in
relation to the maximum communications range.

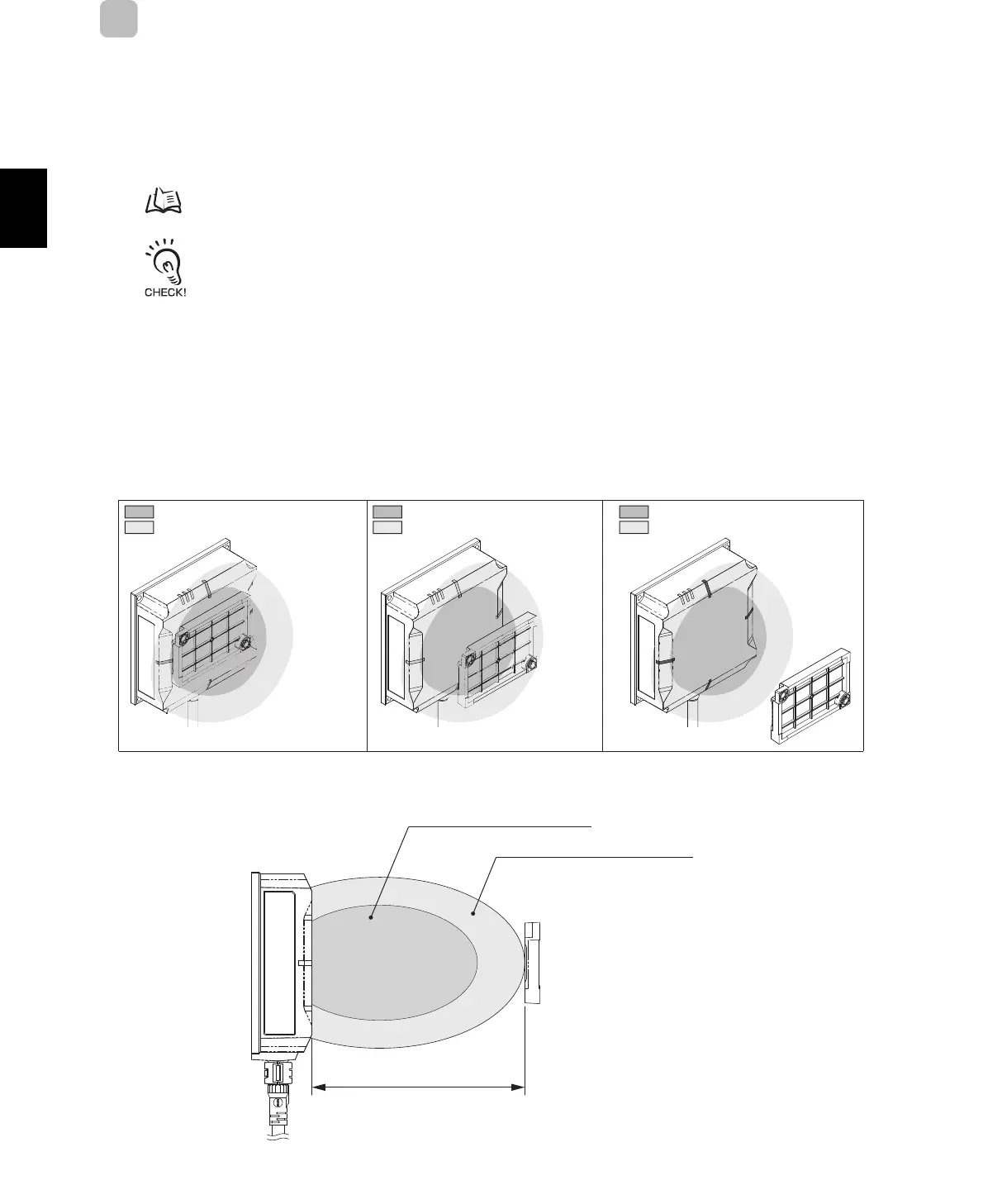

Area of stable communications
Area of unstable communications
Area of stable communications
Area of unstable communications
Area of stable communications
Area of unstable communications
Area of stable communications
Area of unstable communications
Maximum communications range
