Section 2
Using Multi
-Reader/Write
r Operation
7.
The f

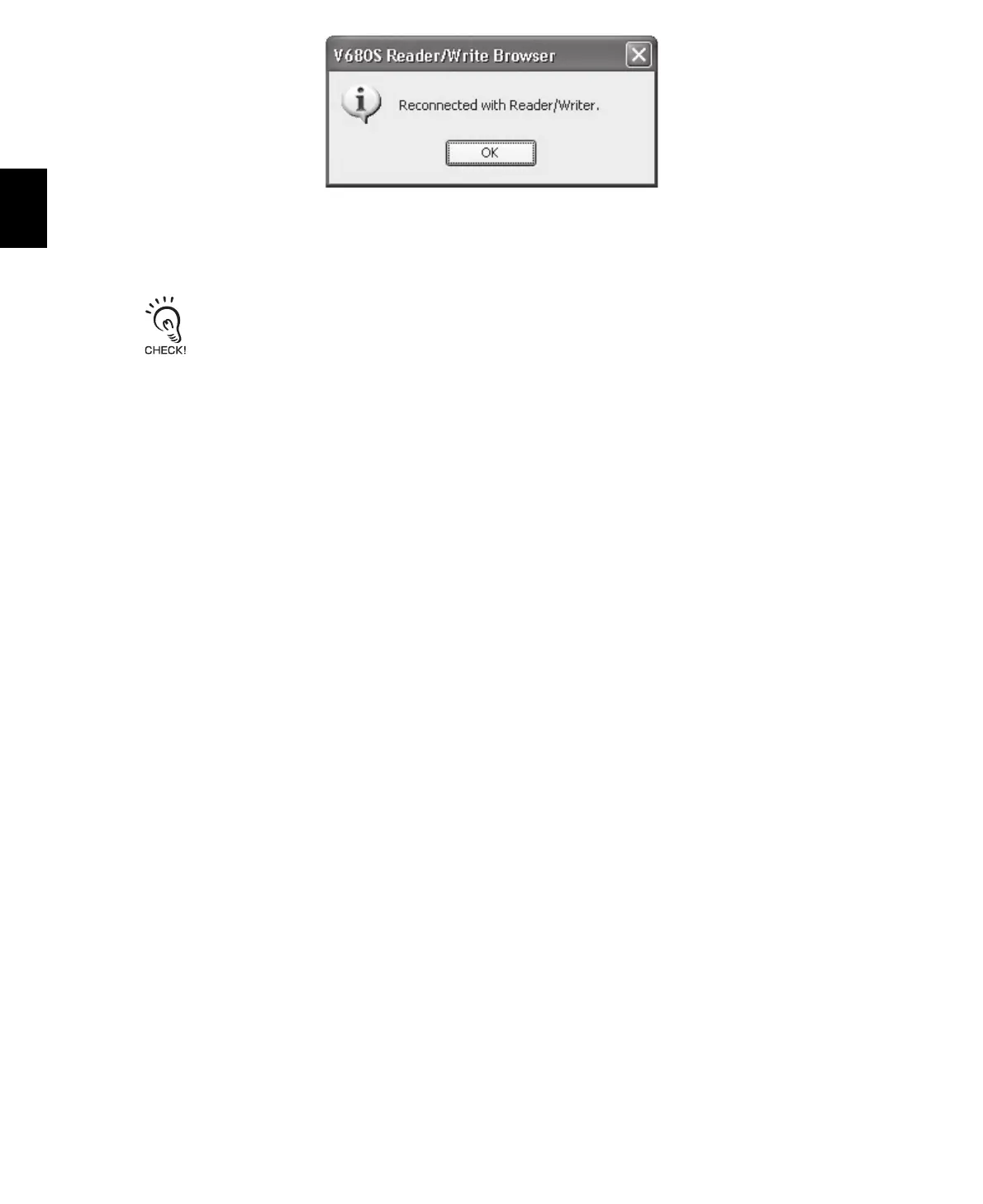

ollowing dialo
g box is displa
ye
d after reconnecting to the Reader/Writer
. Click the
OK
Button.
8.
The Sla
ve Reader/Writers will also be restar
ted auto
matically
. This concludes
the procedure to disable
multi-Reader/Writer operation.
When the Field Extension Mode is disabled, the R
UN indica
tors on the Slave Reader/Write
rs will f
ast flashing green.
79
