TRASONIC FL
OW METER
ONICON Incorporated 727.447.6140
P
age 15
onicon.com

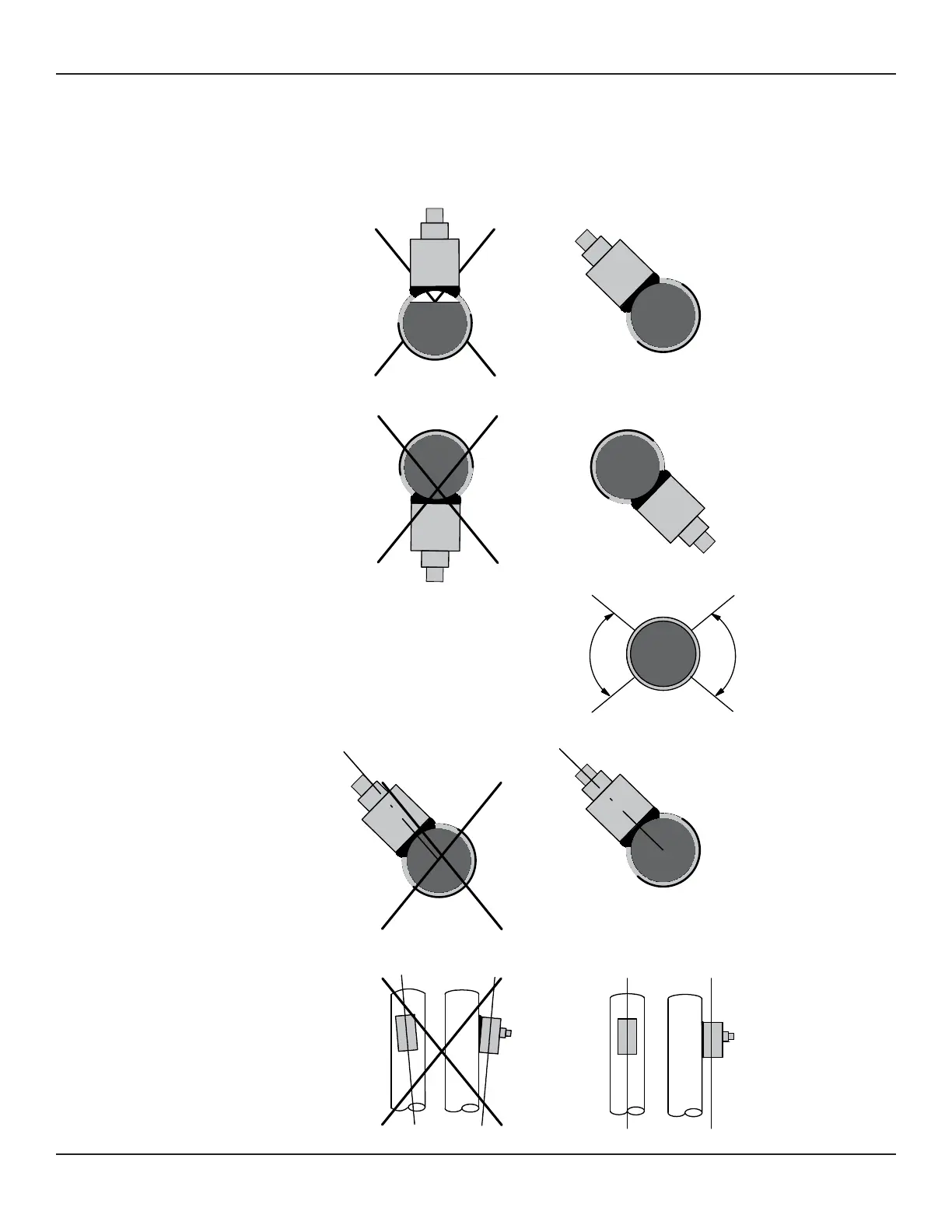

3.2.3 T
ransducer Mounting Recommendations
BAD
Air at the top of the
pipe will disrupt the
signal
GOOD
Solids at the bottom
of the pipe will
disrupt the signal
OK
OK
Installing
transducers at 2 to 4
or 8 to10 o'clock
position on
horizontal pipes
Transducer face to
be perpendicular
to pipe surface
Ensure transducers
are parallel with pipe
axis and flush to the
pipe surface
14
16
