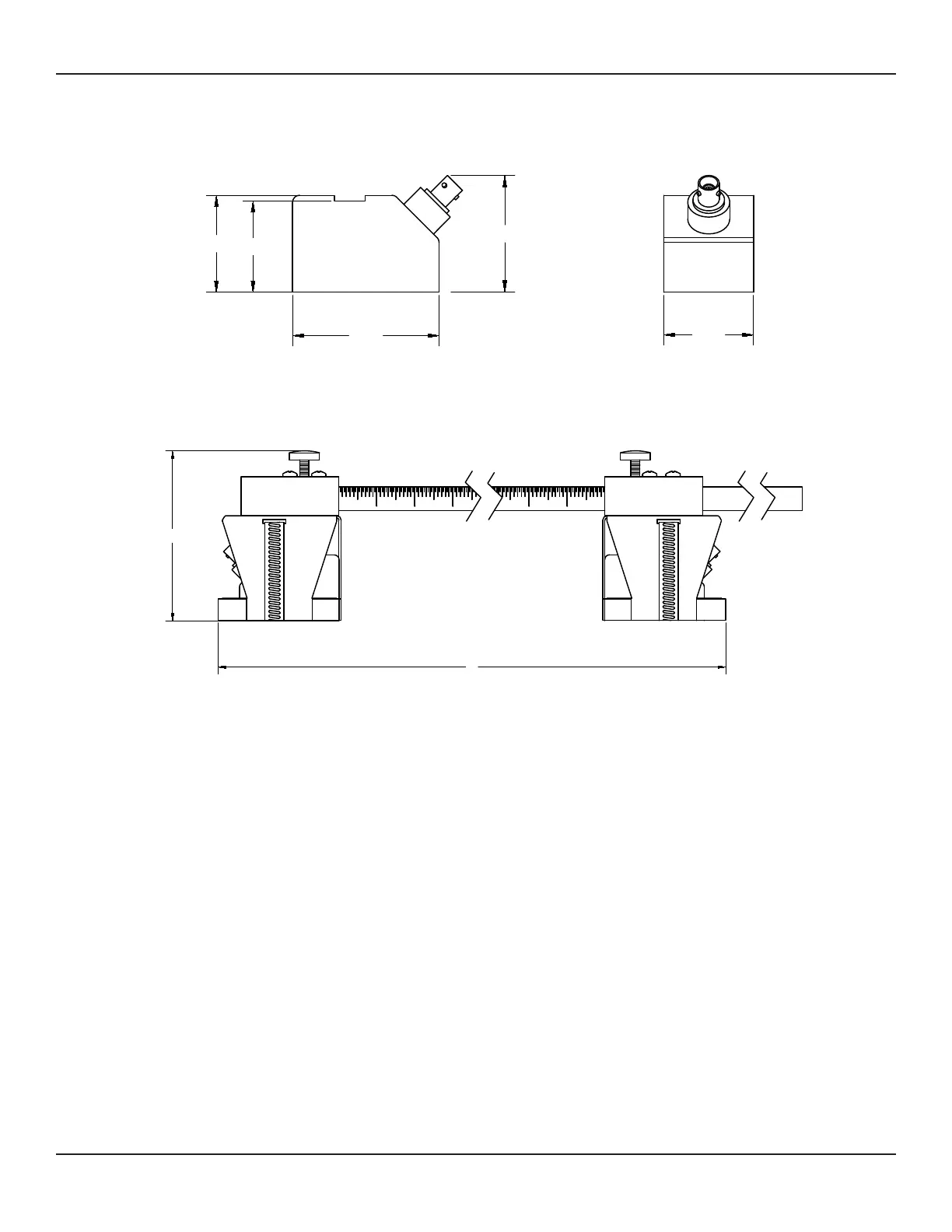

Onicon F-4300 - Series Transducer Dimensions

F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 18 onicon.com
SIDE VIEW
1.60"
2.60"
1.70"
2.10"
END VIEW
1.60"
IMPERIAL SIDE
B
4.50"
-

3.3.1.4 30 Series Transducer Dimensions
