F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 37 onicon.com

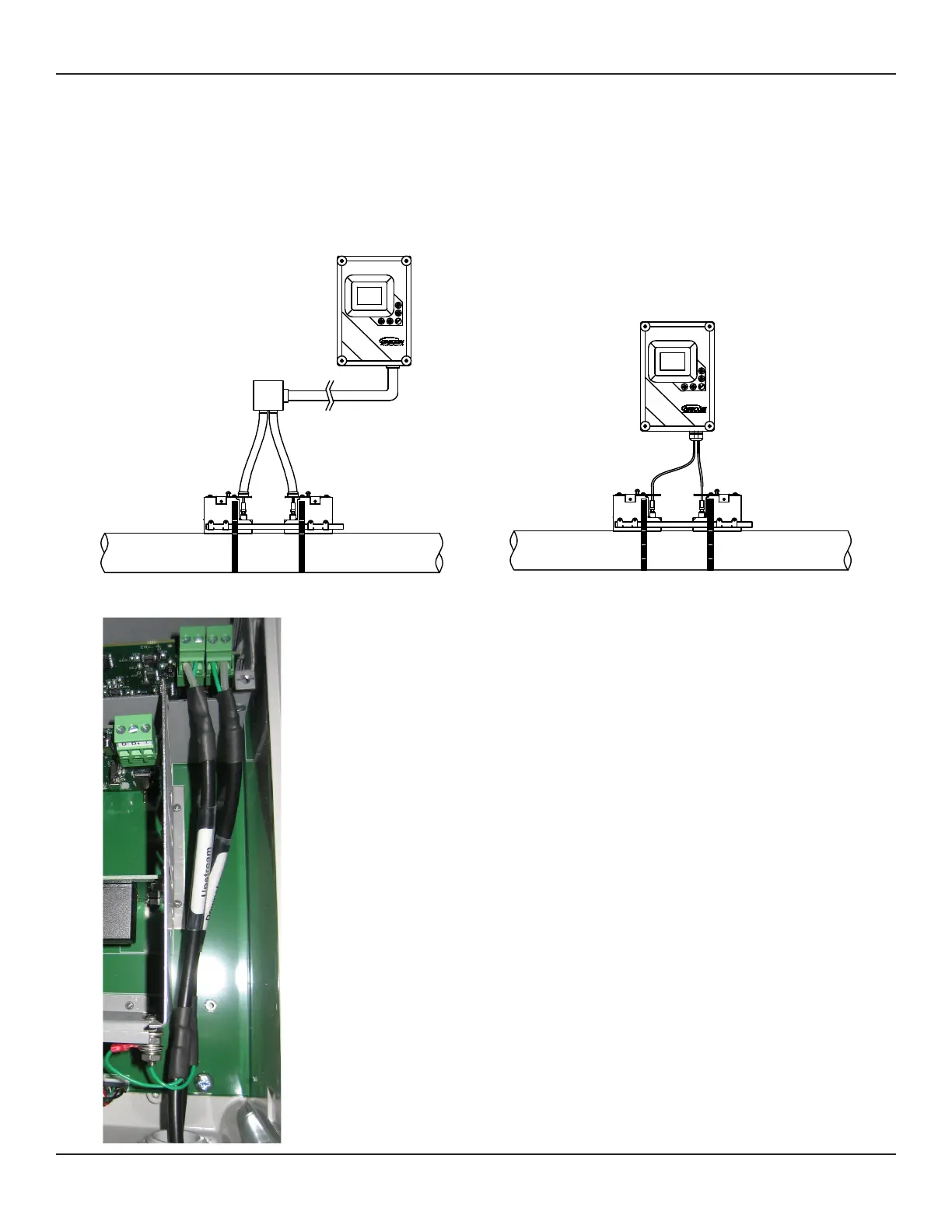

3.4 CONNECTING THE TRANSDUCER SIGNAL CABLES
ONICON F-4300 transducer cables are special purpose triaxial cables. Care must be taken when installing the cables

conduit with any other signal or power cables. The maximum allowable cable length is 100 ft.
1. 

2. The transducer cables are provided with BNC connectors already installed at
one end of the cable. Install this end of each cable at the transducers.
IMPORTANT NOTE
If using conduit, route cables from transducer through conduit to
electronics enclosure.
IMPORTANT NOTE
Route the upstream terminal to the upstream transducer located in
the terminal block. Repeat for the downstream terminal. If cables are
discovered to be backwards after installation, simply reverse the cable
installation inside the enclosure.
WARNING
For proper operation, cables must not be bundled or run in conduit with
any other signal or power cables. Do not cut or splice cables.
3. At the enclosure, the transducer cable should be landed as
shown in the image to the left.
F-4300
Transit Time
Ultrasonic Flow Meter
F-4300
Transit Time
Ultrasonic Flow Meter
