3.3.4 30 Series Mechanical Installation
3.3.4.1 Preparing the Pipe for 30 Series Transducers

site preparation is to eliminate any discontinuity between the sensor and the pipe wall, which would prevent acoustical
coupling. A sanding block is included with every meter to facilitate proper pipe preparation.


between transducer faces.
IMPORTANT NOTE
Always install hardware at the 2:00 to 4:00 or 8:00 to 10:00 position on horizontal pipes. This prevents the ow
meter from being aect by air trapped at the top of the pipe.
IMPORTANT NOTE
The 30 Series transit-time transducers should be installed with the cable connections pointed away from each other
at installation.

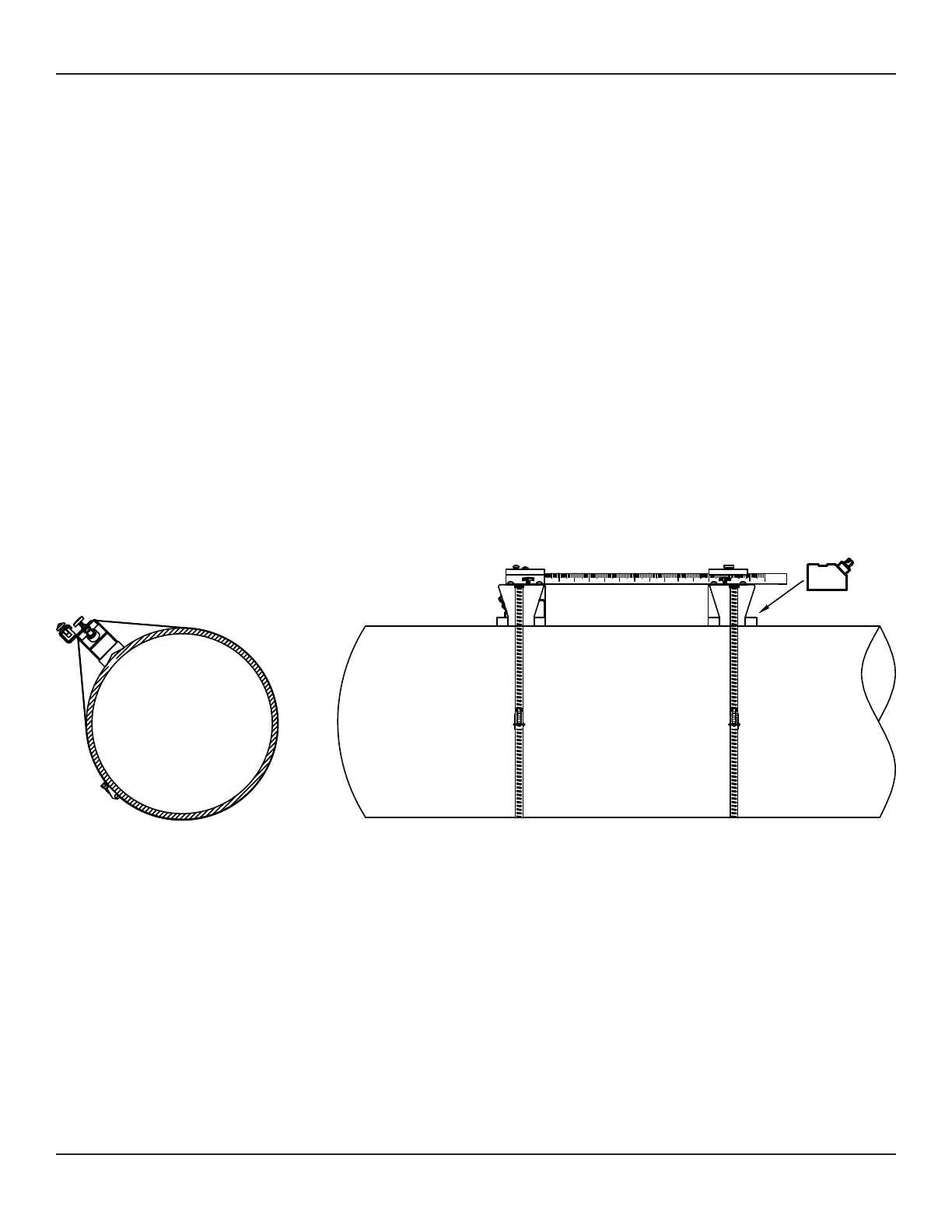

Imperial Side
Transducer
Pipe
Adjustable
Stainless
Steel Strap
Pipe
END VIEW
