4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 31 onicon.com

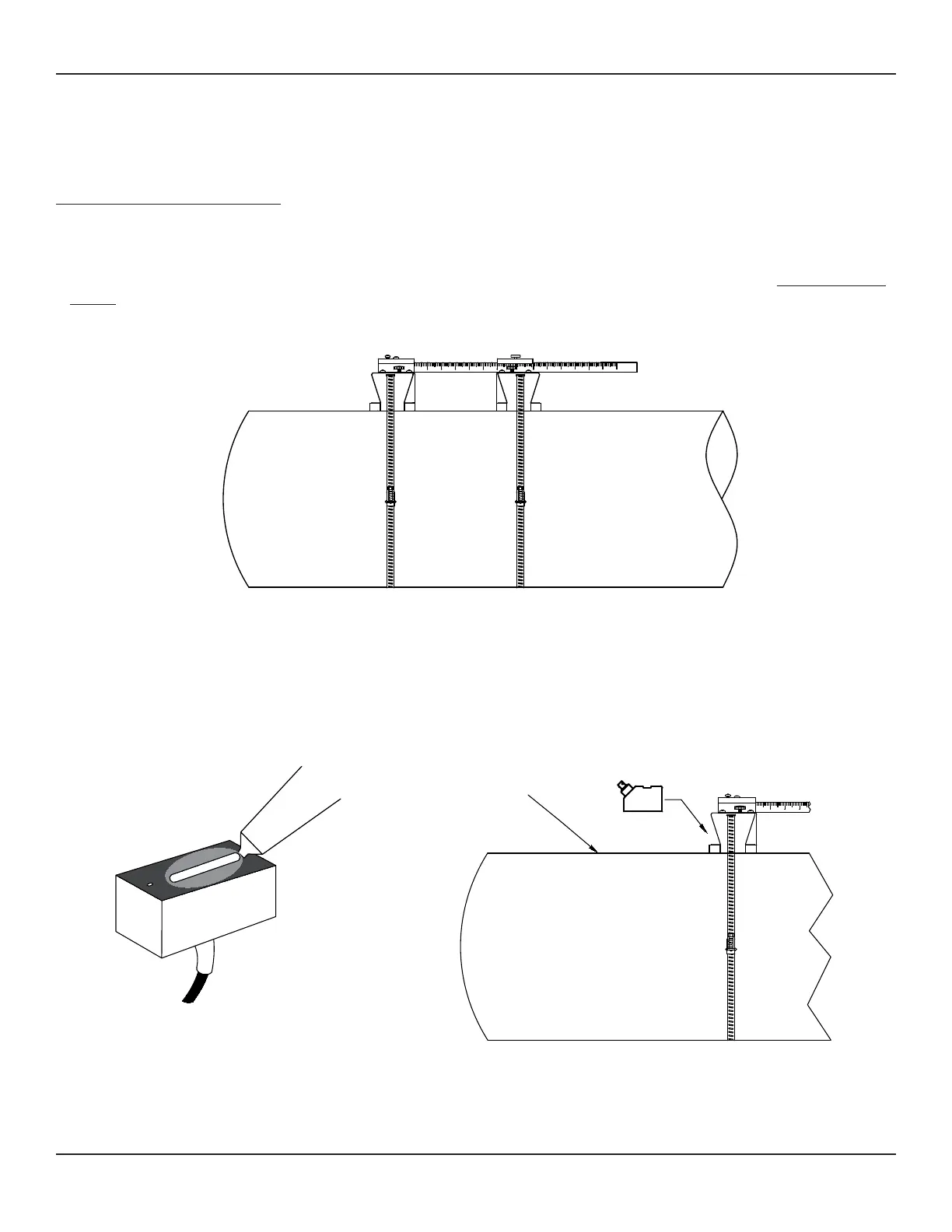

3.3.4.2 Two (2) Cross Mounting Installation for 30 Series Transducers
Two (2) cross mount is the recommended operating mode whenever possible. It is the simplest way to mount the
transducers.

1. Prepare the pipe surface as described in section 3.3.4.1.
2. Install the stainless steel mounting brackets on the pipe. Position the brackets at approximately the correct separation

3. 

Imperial Side
Pipe
Adjustable
Stainless
Steel Strap
4. Tighten the assembly in place with the tightening screws.
5. Apply a small amount of coupling compound to the transducers. A packet of acoustic coupling compound was supplied
with the transducers. Contact ONICON if you need more compound.
6. 
Transducer
Compound
Transducer
Pipe
When installing the transducer,
do not allow the bottom face to
touch the pipe surface until it is
fully inserted to the bracket
7. 
brackets while the transducer is installed inside, then re-tightening it.
