4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 32 onicon.com

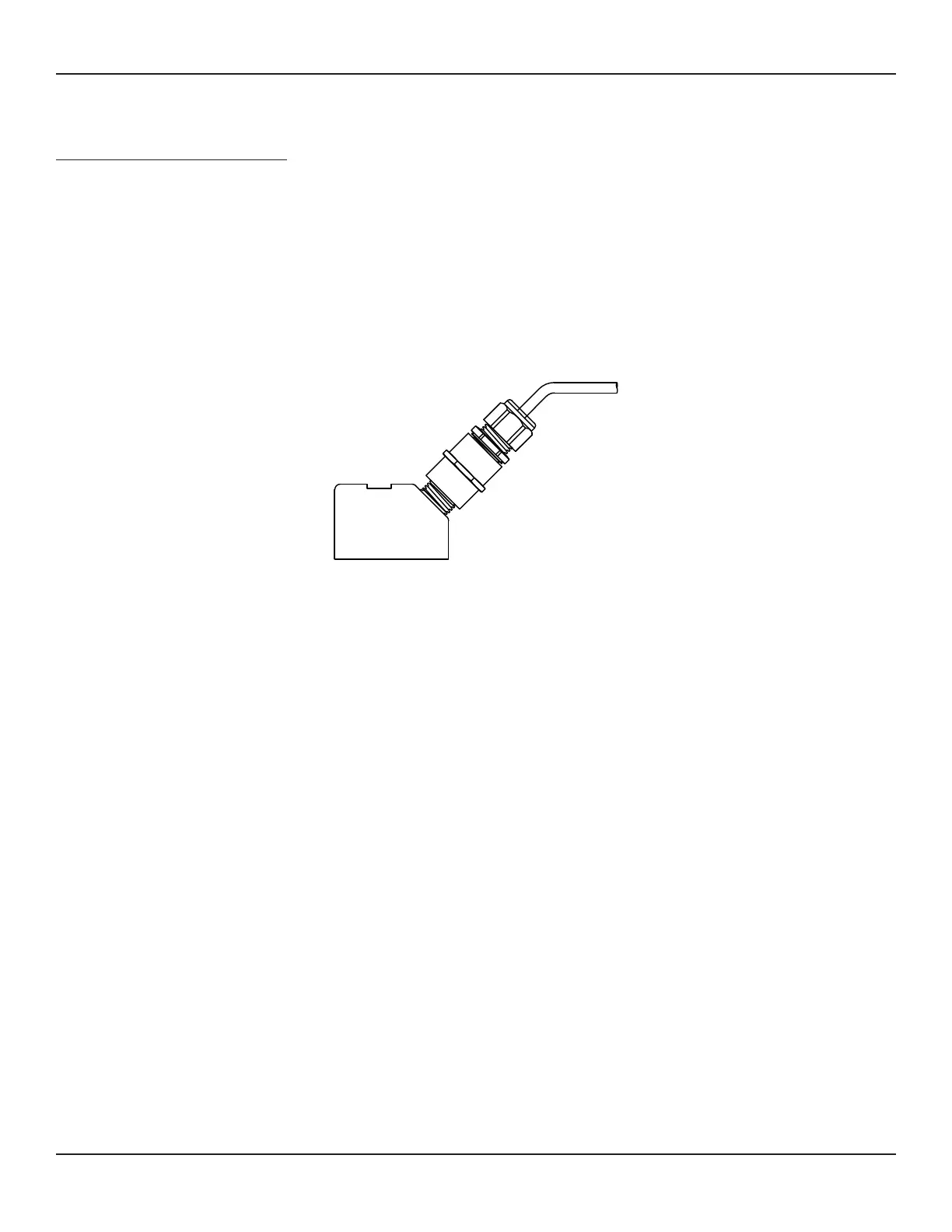

Transducer Installation Procedure:
IMPORTANT NOTE
DO NOT remove the transducer’s threaded cap until the installation is ready.
1. Remove the coupling and connect the BNC connector to the transducer.
2. Install the coupling onto the transducer over the connector.
3.
4.
5.
6. Tighten the strain relief onto the cable.
7. Repeat procedure for the second transducer.
IMPORTANT NOTE
For use with conduit, carefully remove the strain relief tting from the pre-terminated end of the cable. Connect the
1/2" conduit directly to the transducer.
3.3.4.2 Two (2) Cross Mounting Installation for 30 Series Transducers (Continued)
To Next Page
