F
-
4300 C
L
A
M
P
-
ON UL
TRASONIC FL
OW METER
ONICON Incorporated 727.447.6140
P
age 16
onicon.com
3
.3
MECHANICAL INST
ALLA
TION

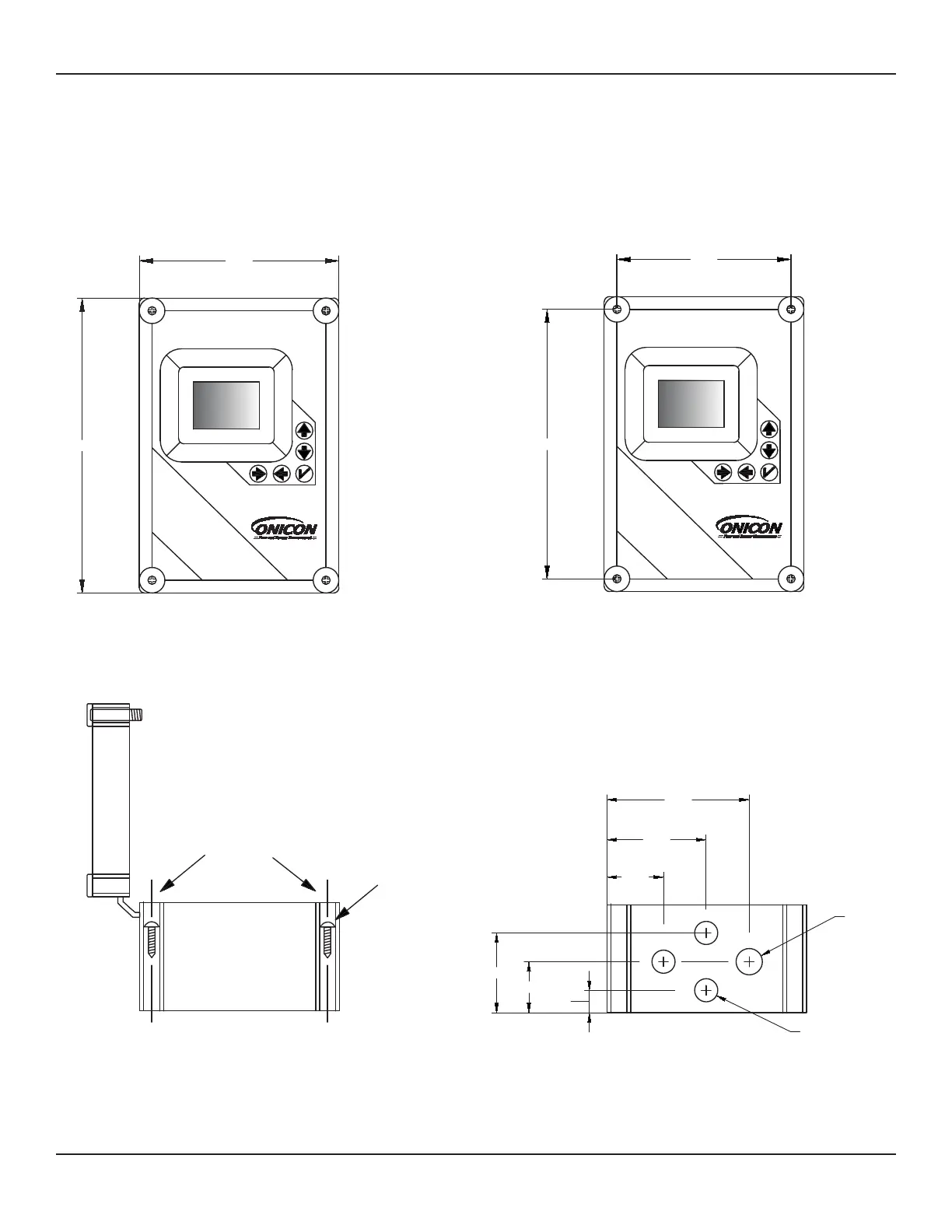

3.3.1.1 Enclosure Dimensions
3.3.1 Dimensions
CAUTION
Do not drill additional holes in this enclosure. Doing s
o may damage the electronic cir
cuitr
y contained within and
will void all warranties.
F-4300
Transit Time
Ultrasonic Flow Meter
7.50"
11.00"
ENCLOSURE
DIMENSIONS
F-4300
Transit Time
Ultrasonic Flow Meter
6.46"
10.00"
MOUNTING HOLD
DIMENSIONS
COVER
END VIEW
ENCLOSURE
MOUNTING
HOLES
MOUNTING SCREWS
INCLUDED WITH
METER
CONDUIT HOLE
AND DIMENSIONS
2.00"
3.75"
5.60"
1.34"
2.10"
2.74"
D = 1"
3X D = 0.875"
15
17
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1.0 General Information
5
Principle of Operation
5
Typical F - 4300 Flow Meter Installation
5
Standard Features and Specifications
6
Model Numbering Codification
8
Additional Hardware that May be Required
9
Working Environment
9
Maintenance
9
Serial Number
9
Section 2.0 Unpacking
10
Checking that You Have Received Everything
10
Section 3.0 Installation
11
Overview
11
Two (2) (Reflect) or Four (4) (Double Reflect) Cross Mode
12
One (1) (Direct) Cross Mode
12
Site Selection
13
The Wall-Mount Enclosure
13
The Transducers
14
Transducer Mounting Recommendations
15
Mechanical Installation
16
Dimensions
16
Enclosure Dimensions
16
Series Transducer Dimensions
17
Series Transducer Dimensions
18
Series Mechanical Installation
19
Preparing the Pipe for 10 Series Transducers
19
Two (2) or Four (4) Cross Mounting Installation for 10 Series Transducers
20
Series Mechanical Installation
21
Preparing the Pipe for 20 Series Transducers
21
Two (2) or Four (4) Cross Mounting Installation for 20 Series Transducers
22
One (1) Cross Mounting Installation for 20 Series Transducer
25
Series Mechanical Installation
30
Preparing the Pipe for 30 Series Transducers
30
Two (2) Cross Mounting Installation for 30 Series Transducers
31
One (1) Cross Mounting Installation for 30 Series Transducers
33
Connecting the Transducer Signal Cables
37
Electrical Installation
38
Input Power Requirements
38
Power and Output Signal Wiring Details
39
Transducer and Sensor Wiring Details
40
Section 4.0 Start - up
41
Navigating the Run Mode & Programming
41
Run Mode & Programming
42
Run Mode Icons
43
Run Mode
44
Programming Menu
46
Section 5.0 Bacnet Ms/Tp
55
Bacnet Protocol Implementation Conformance Statement
56
Section 6.0: Modbus
61
Modbus Rtu Rs485
61
Modbus Tcp/Ip
61
IP Address Setting (Ipv4)
62
IP Address Setting (Ipv6)
64
Units and Functions
64
Modbus Memory Map
65
Report Slave ID Function Code
72
Section 7.0: Commissioning
73
Helpful Hints for Start - up and Commissioning
73
Commissioning Procedure
73
Commissioning Worksheet
74
Section 8.0: Troubleshooting
75
Appendix A - Speed of Sound in Pure Water Table ( Imperial Units )
76
Appendix B - Speed of Sound in Pure Water Table ( si Units )
77
Appendix C - Speed of Sound in Glycol Water Table
78
Appendix D - Pipe Charts
79
Other manuals for Onicon F-4300
Installation Hardware Instruction
4 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Onicon F-4300 and is the answer not in the manual?
Ask a question
Onicon F-4300 Specifications
General
Brand
Onicon
Model
F-4300
Category
Measuring Instruments
Language
