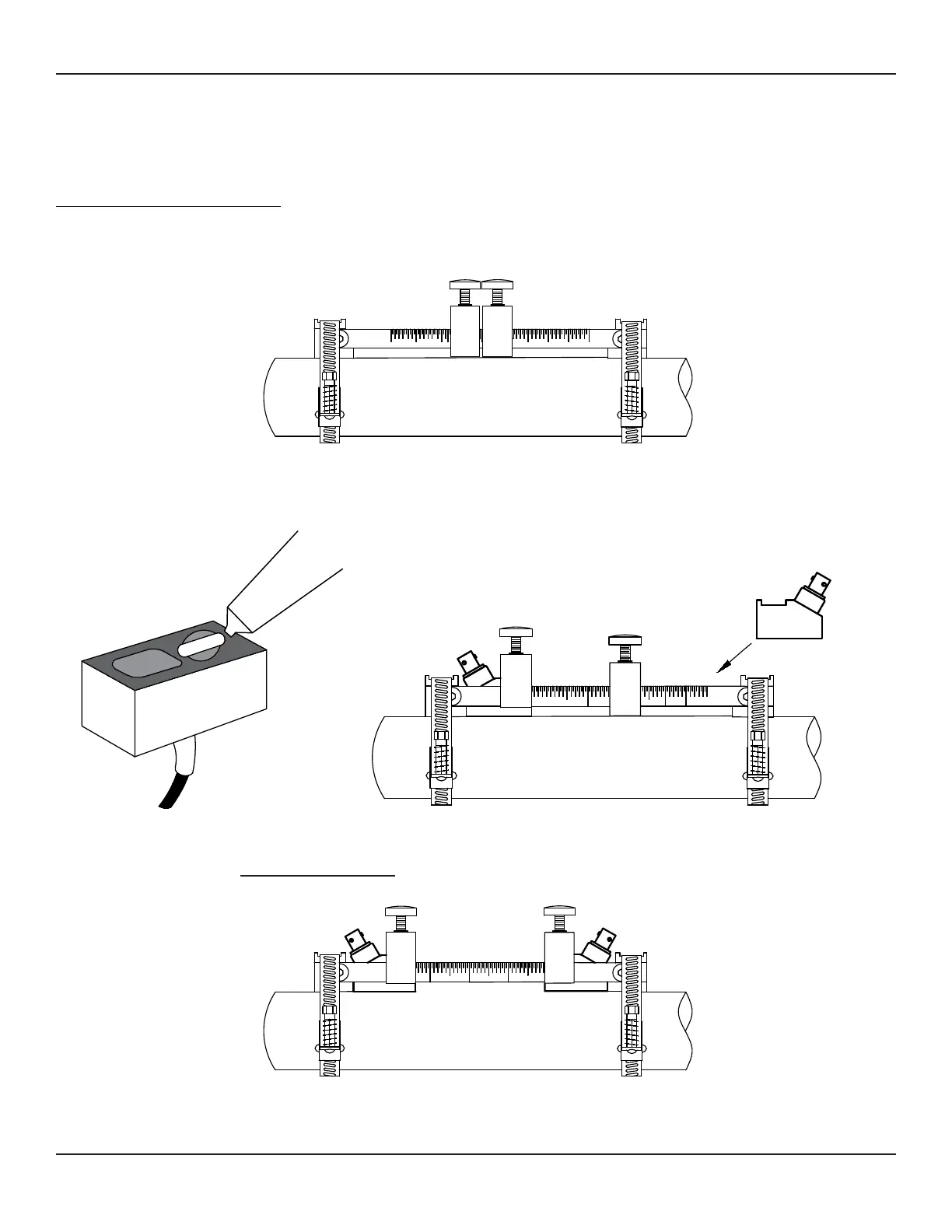

3.3.2.2 Two (2) or Four (4) Cross Mounting Installation for 10 Series Transducers
PIPE
Pipe
Transducer
Transducer
Compound
Two (2) or four (4) cross mount is the recommended operating mode whenever possible. It is the simplest way to mount
the transducers.
1. Prepare the pipe surface as described in section 3.3.2.1
2. Install the stainless steel mounting track on the pipe. Place the tightening brackets near the center, the transducers will
be inserted from the outside.
3.
4. Apply a small amount of coupling compound on the second transducer and place this transducer at the separation
distance provided in the document. Tighten the transducer down using the built-in tightening
5.
second transducer, then re-tightening it.
