SECTION 6.0: MODBUS

6.1 MODBUS RTU RS485
Transceiver: 2-wire, half-duplex







Biasing: None
Flow control: None
6.2 MODBUS TCP/IP

Port: 502
Parity: None

Baud rate: 38400
IP Address: 192.168.255.1



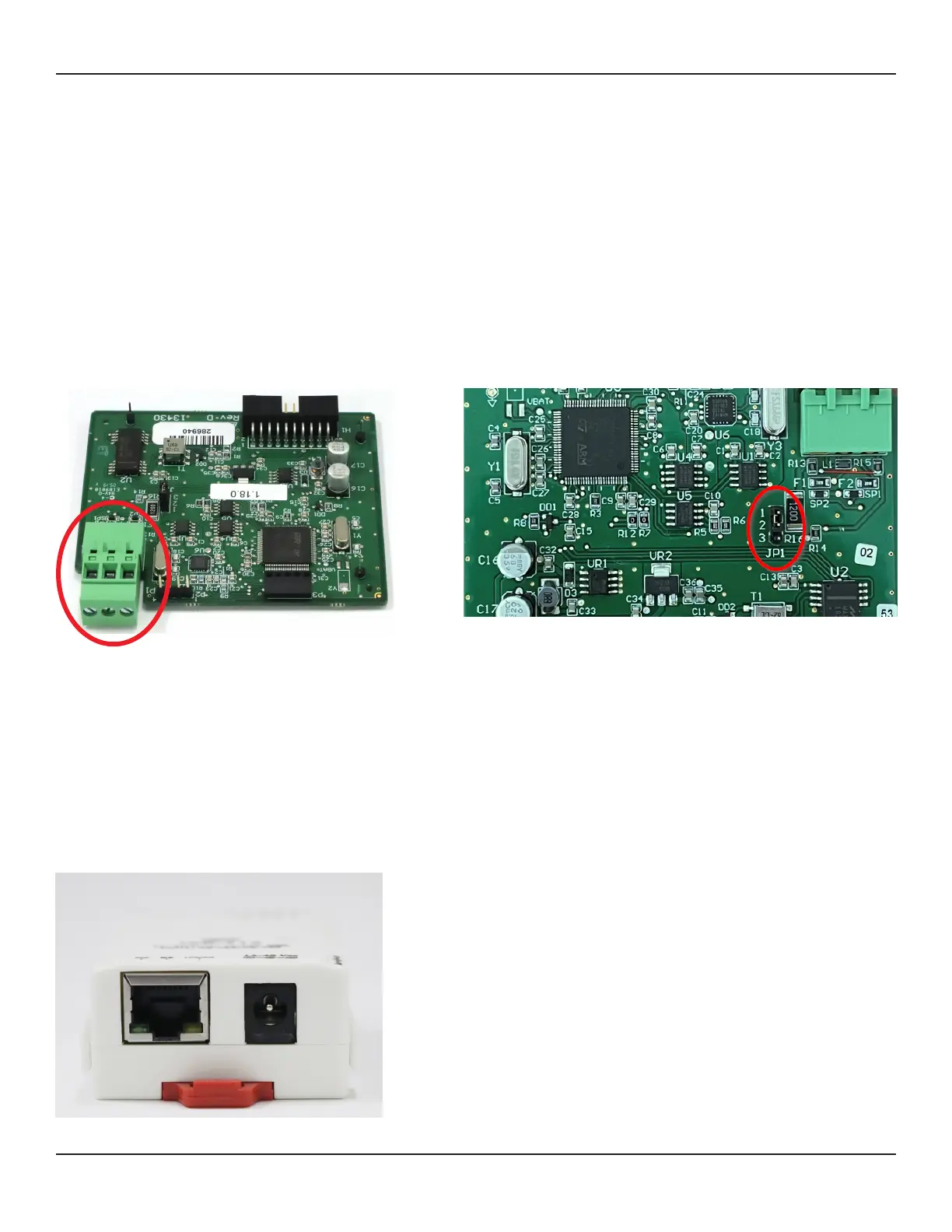

RS485 Output Terminal Block RS485 Output Card with Jumper JP1
