F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 22 onicon.com

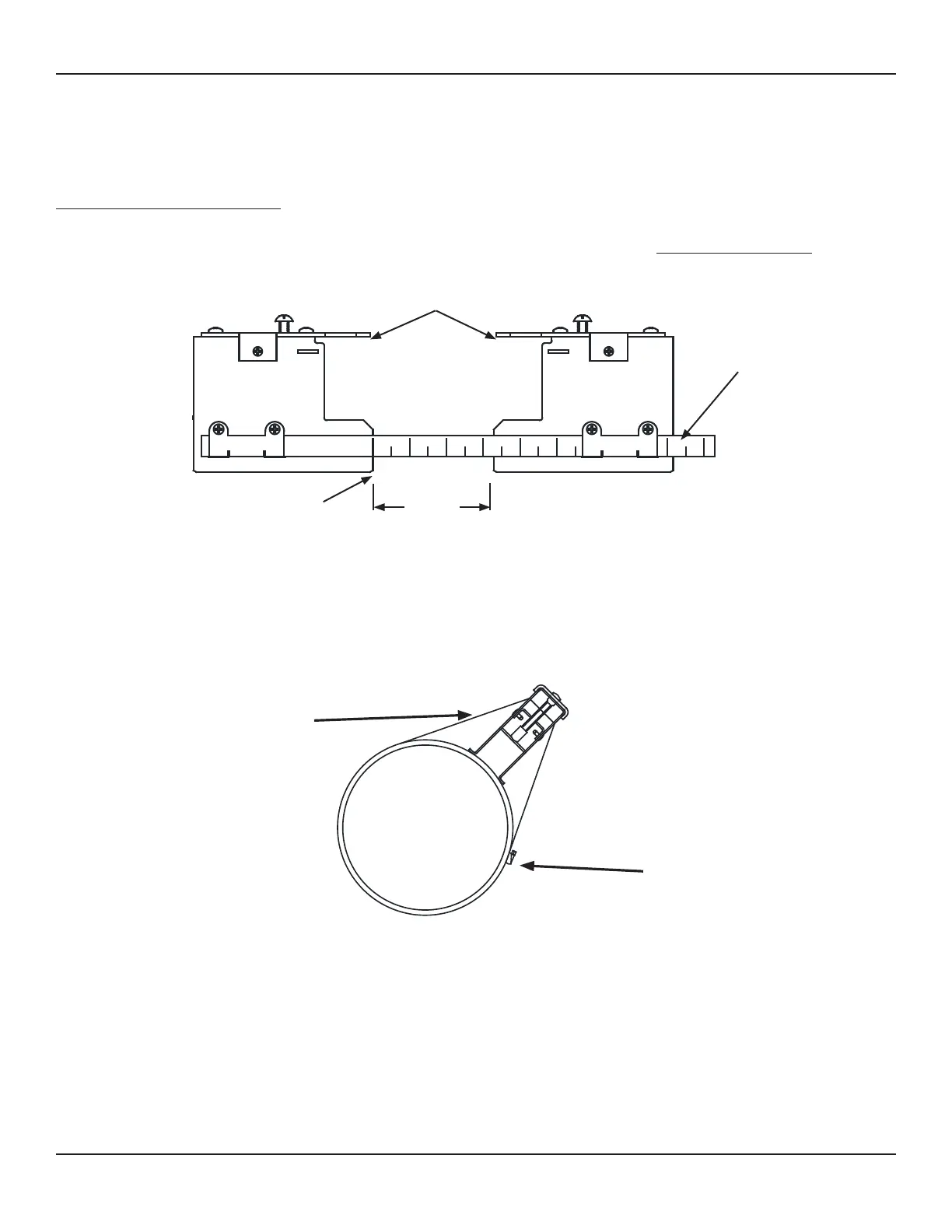

3.3.3.2 Two (2) or Four (4) Cross Mounting Installation for 20 Series Transducers
Orient mounting brackets as shown
Reference Position
between transducers
Two (2) or four (4) cross mount is the recommended operating mode whenever possible. It is the simplest way to mount
the transducers.
1. Prepare the pipe surface as described in section 3.3.3.1.
2. document
provided with the installation hardware to determine the transducer spacing dimensions.
3. Install the mounting straps as shown below. For larger pipes, use multiple straps connected end-to-end to increase the
length of each strap. Leave enough slack in the straps to allow the assembly to be correctly positioned on the pipe. The
location of the routing hole allows for the straps to mount outside of the pipe insulation if the pipe is insulated.
4.
transducer, ensuring that the entire assembly is properly oriented along the axis of the pipe.
