Onicon F-4300 User Manual

F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 40 onicon.com

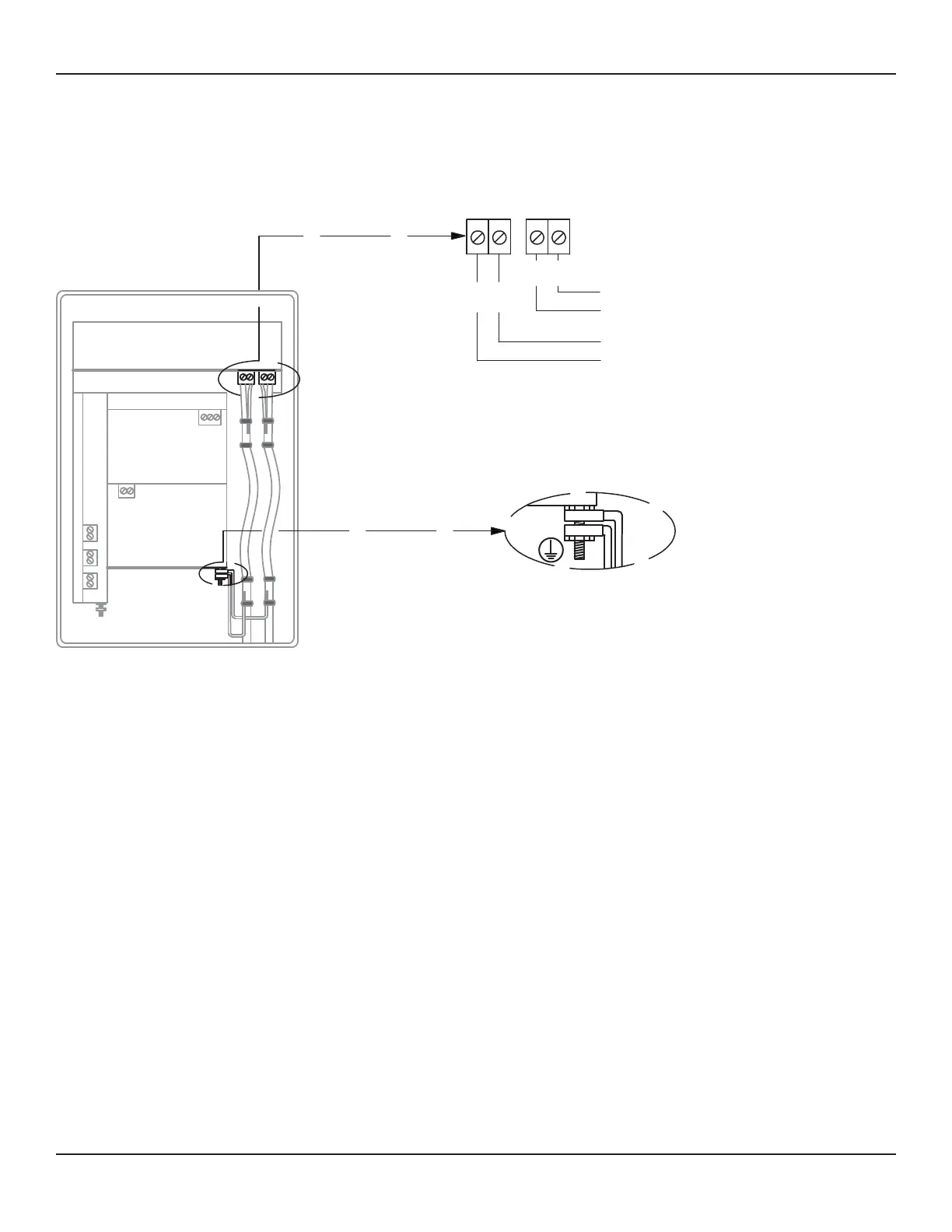

3.5.3 Transducer and Sensor Wiring Details
TRANSDUCER (SENSOR)
CONNECTIONS
WHITE - TRANSDUCER 2
GREEN - SIGNAL GROUND, TRANSDUCER 2
WHITE - TRANSDUCER 1
GREEN - SIGNAL GROUND, TRANSDUCER 1
TRANSDUCER (SENSOR)
GROUND
Downstream
Upstream
1. Transducer (triaxial) cables must not be bundled or run in conduit with any other signal or power cables
2. 
or splice triaxial cable termination
