F
-
4300 CLAMP
-
ON ULTRASONIC FLOW METER
ONICON Incorporated 727.447.6140 Page 33 onicon.com
Imperial Side
Pipe
Adjustable
Stainless
Steel Strap
3.3.4.3 One (1) Cross Mounting Installation for 30 Series Transducers
One (1) cross mount is recommended when 100% signal strength from two (2) cross is not met. Typically, one (1) cross is
used for older, large pipes that have built up corrosion within the pipe walls.
1. Once the installation site selection process described in section 3.2 is complete, prepare the pipe as described in
3.3.3.1.
IMPORTANT NOTE

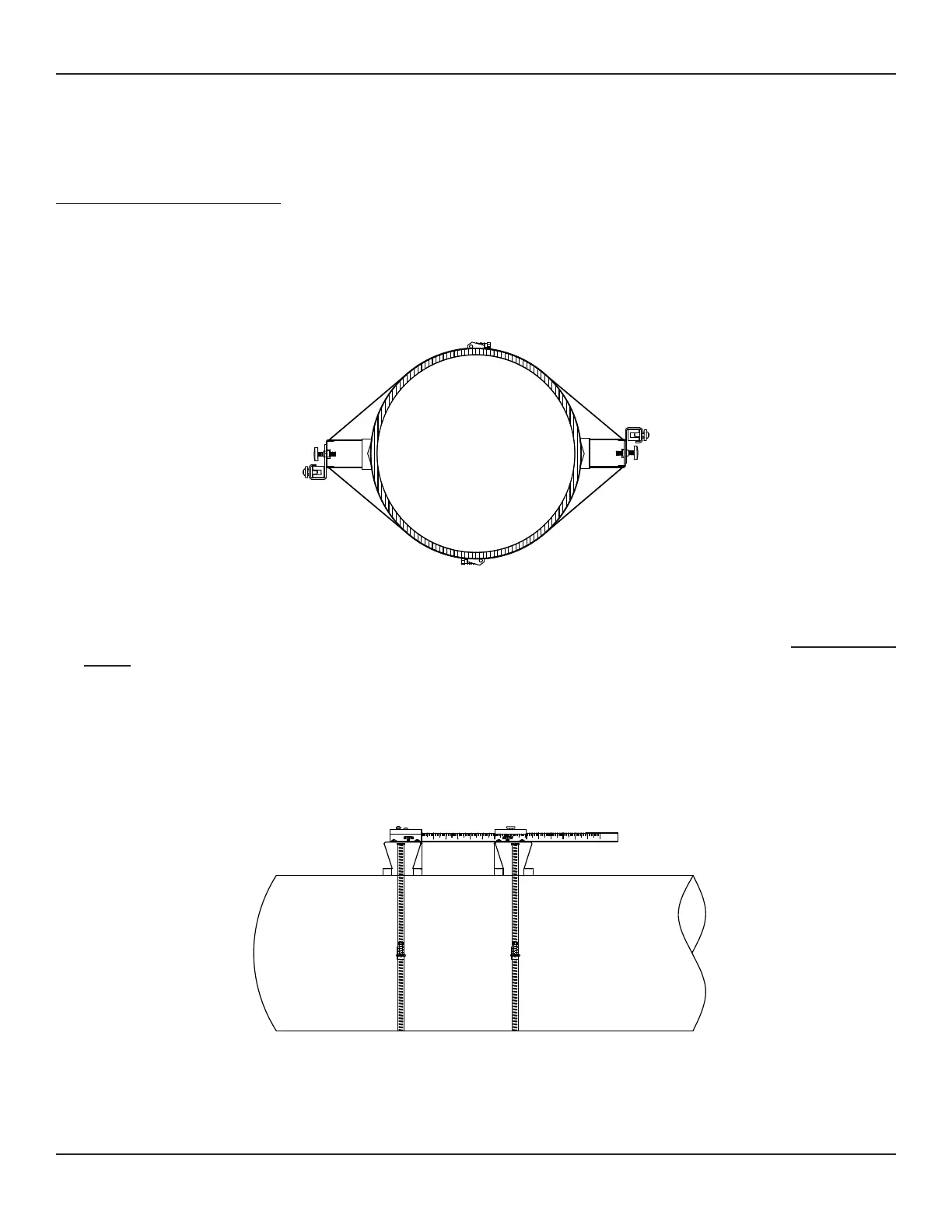

One (1) cross mode mounting requires that transducers be installed on opposite sides of the pipe. For horizontal
pipes, the transducers should be located at the 3 o’clock and 9 o’clock positions.
2. Install the stainless steel mounting brackets on the pipe. Position the brackets at approximately the correct separation
3.
4.
the bracket to ensure the angle is correct.
