Chapter-2
Before Using
Connect to the Host
2.3
This section describes how to connect each interface to the host.
For interface setting details, refer to “5. Interface”
For details of installing the scanner, refer to “Installation of the Scanner”.
Connecting with the Host device
Connect interface connector to the host. When power is on, the scanner makes startup sound.
After startup sound is completed, the scanner will be ready for reading.
* USB-COM and USB-HID interface can be changed by the setting.
* For the USB-COM interface model, the Opticon USB-COM driver must be installed on your host device.
* While using USB-COM and not connected to the host, the scanner makes an error sound when reading.
Host
USB Connector
X X X X X X
1500
Φ 3.8
[Unit: mm]
USB plug A

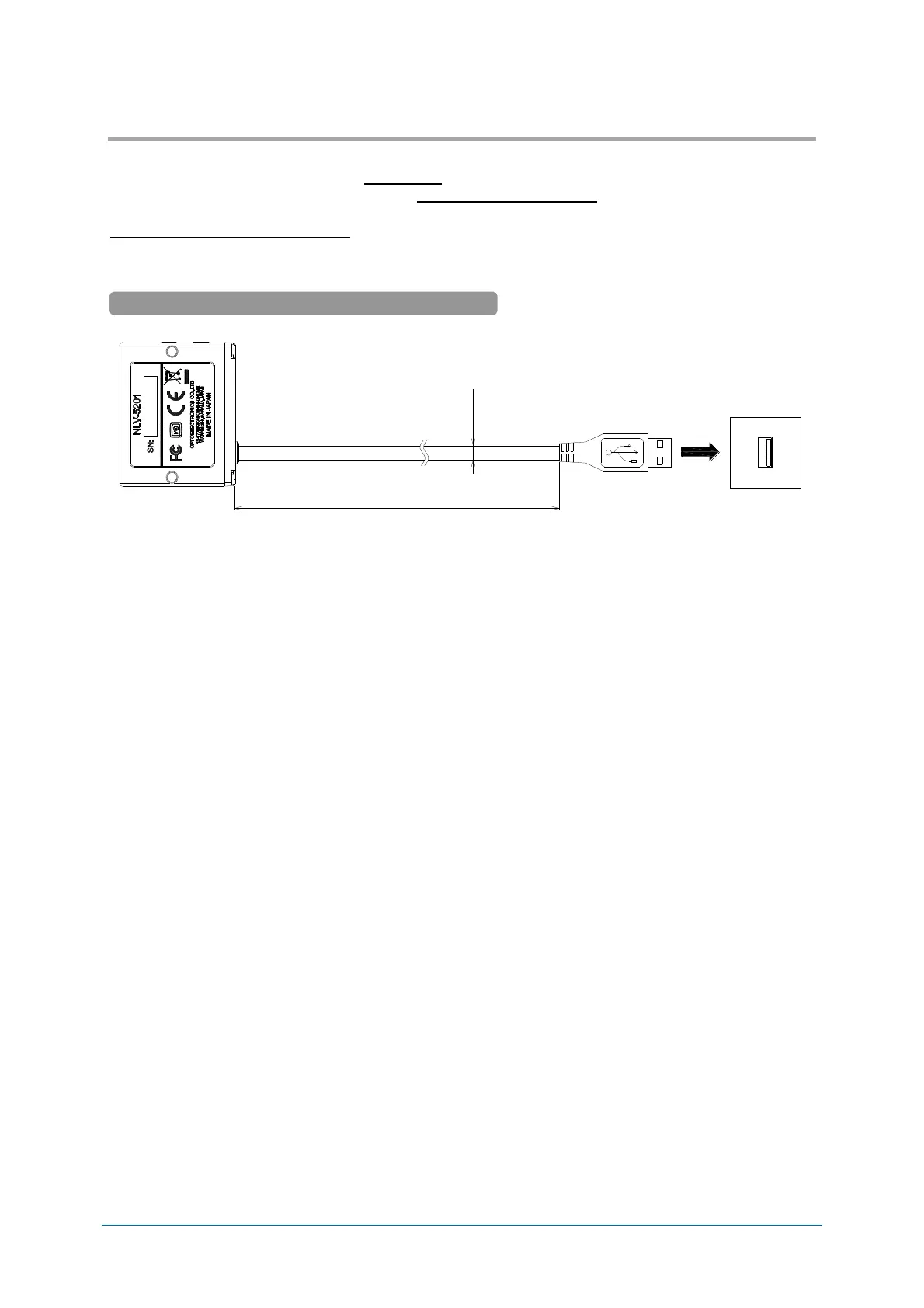

USB-COM/ USB-HID Interface Connection Diagram
To Next Page
