Opticon NLV-5201 - Command Trigger Control

Chapter-6
Reading and Timing
NLV-5201 User's Manual
68
1st
Command Trigger Control
6.1.2
The reading operation can be started / terminated by sending commands.
Item
Command
Description
Remark
External trigger
Z
Start reading
Command only
Y
Stop reading
* When the default read time (refer to Read Time) is invalid, the read time with the Z command will be ‘Indefinitely’
and reading will stop by Y command.
When reading with a command, start reading by trigger “Z” command, and stop reading by sending “Y”
command etc.
When effective read time is set, it stops reading when the set time elapses. Also, it stops when
sending “Y” commands etc.

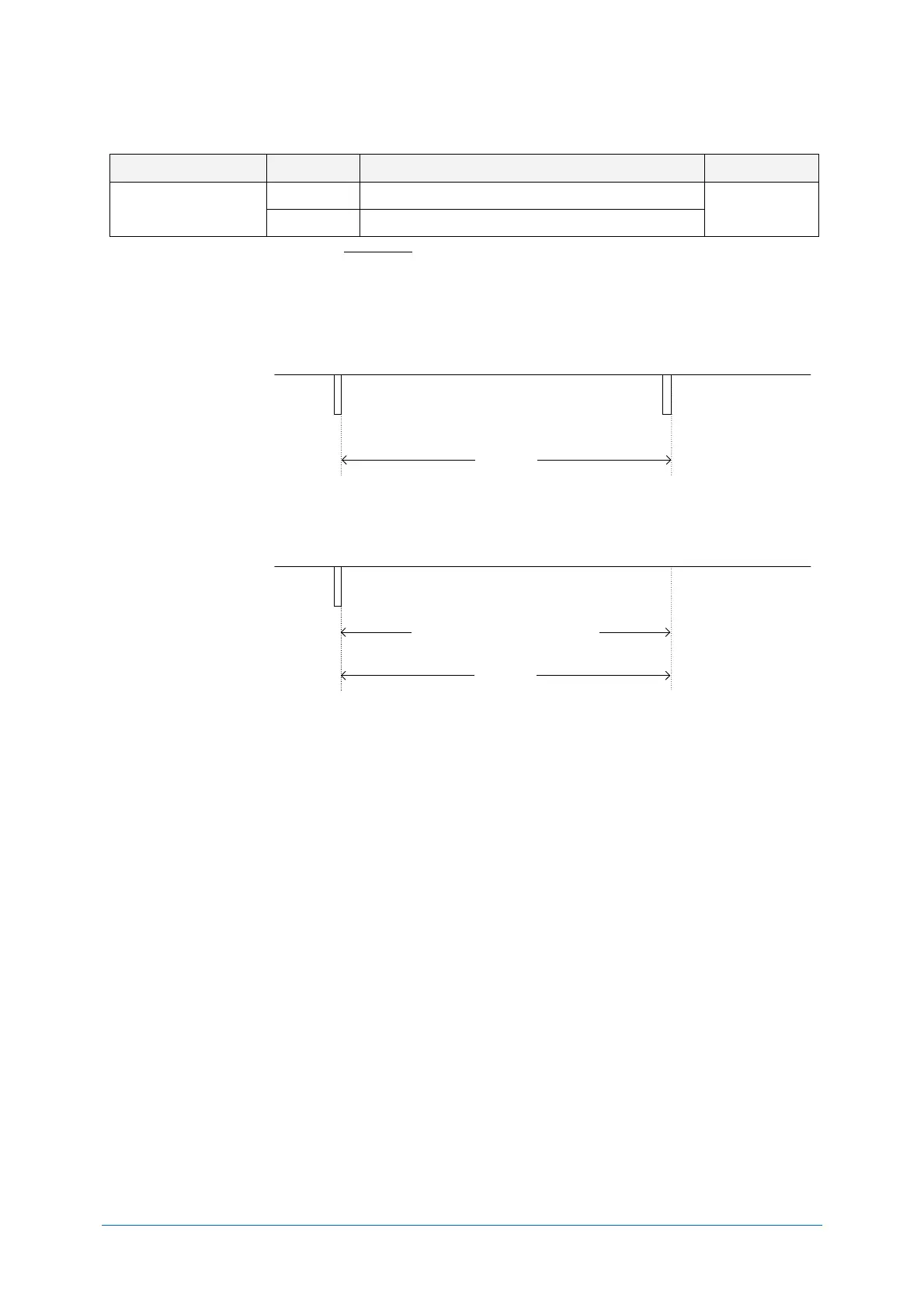

“Z” Command
“Y” Command
Scan time
Command
“Z” Command
Scan time
Read time option (Configured)
Command
