Optical Path
2.10.2
Install the Exit Window with sufficient clearance for the field of view, LED illumination and LED aiming.

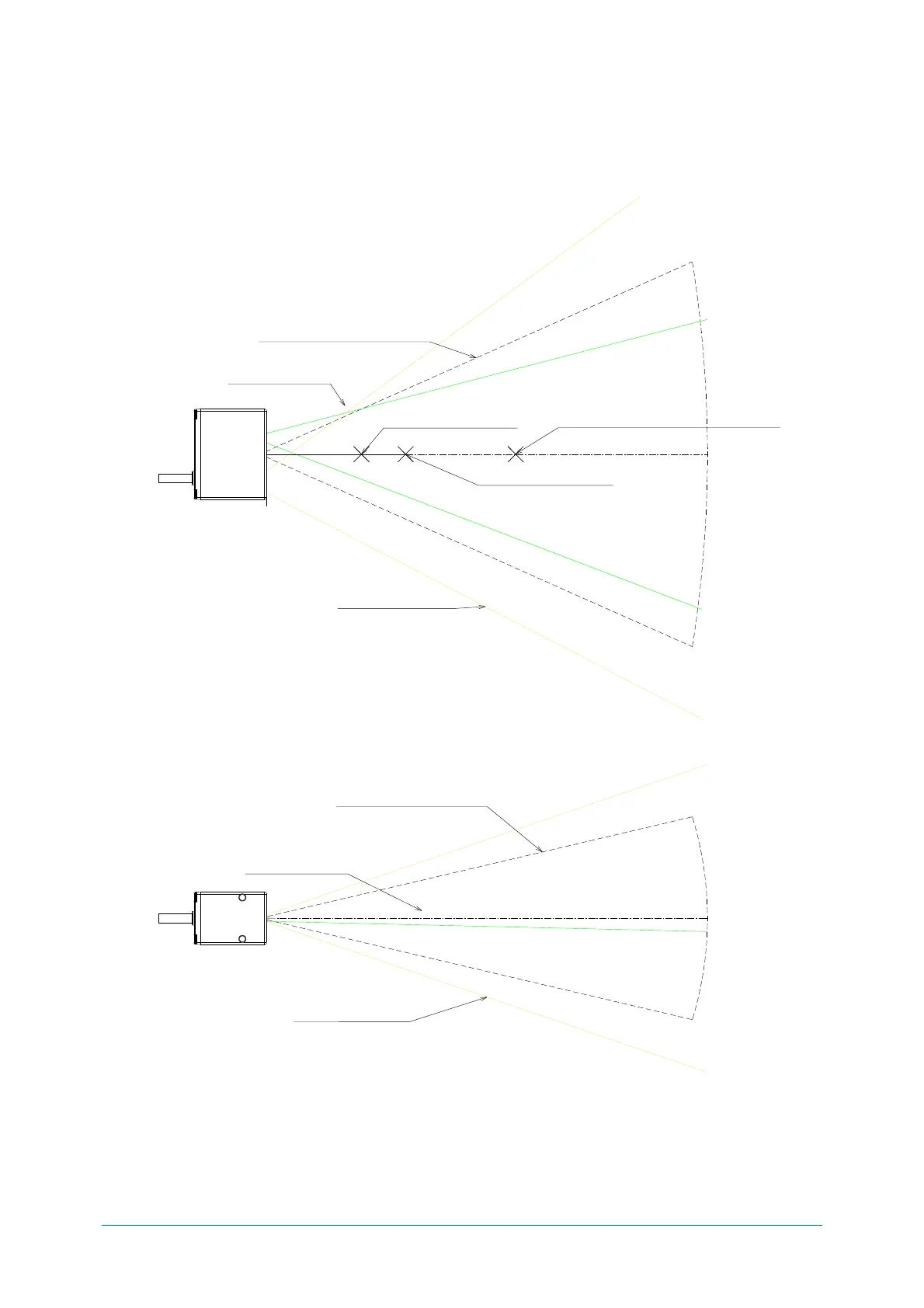

Provide the exit window with sufficient clearance with respect to the optical path, as depicted below.
*Obtain the image in the actual environment and evaluate it. The software tools for image capture can be found
on the Opticon website.
Horizontal Field of View
Illumination LED
Vertical Field of View
Illumination LED
Vertical
Horizontal
Standard (SR) Focus (113 mm)
Aiming (LED)
Aiming (LED)
HD Focus (63 mm)
UD Focus (43 mm)
