Opticon NLV-5201 - Image Settings

Chapter-3
Configurations
NLV-5201 User's Manual
37
1st

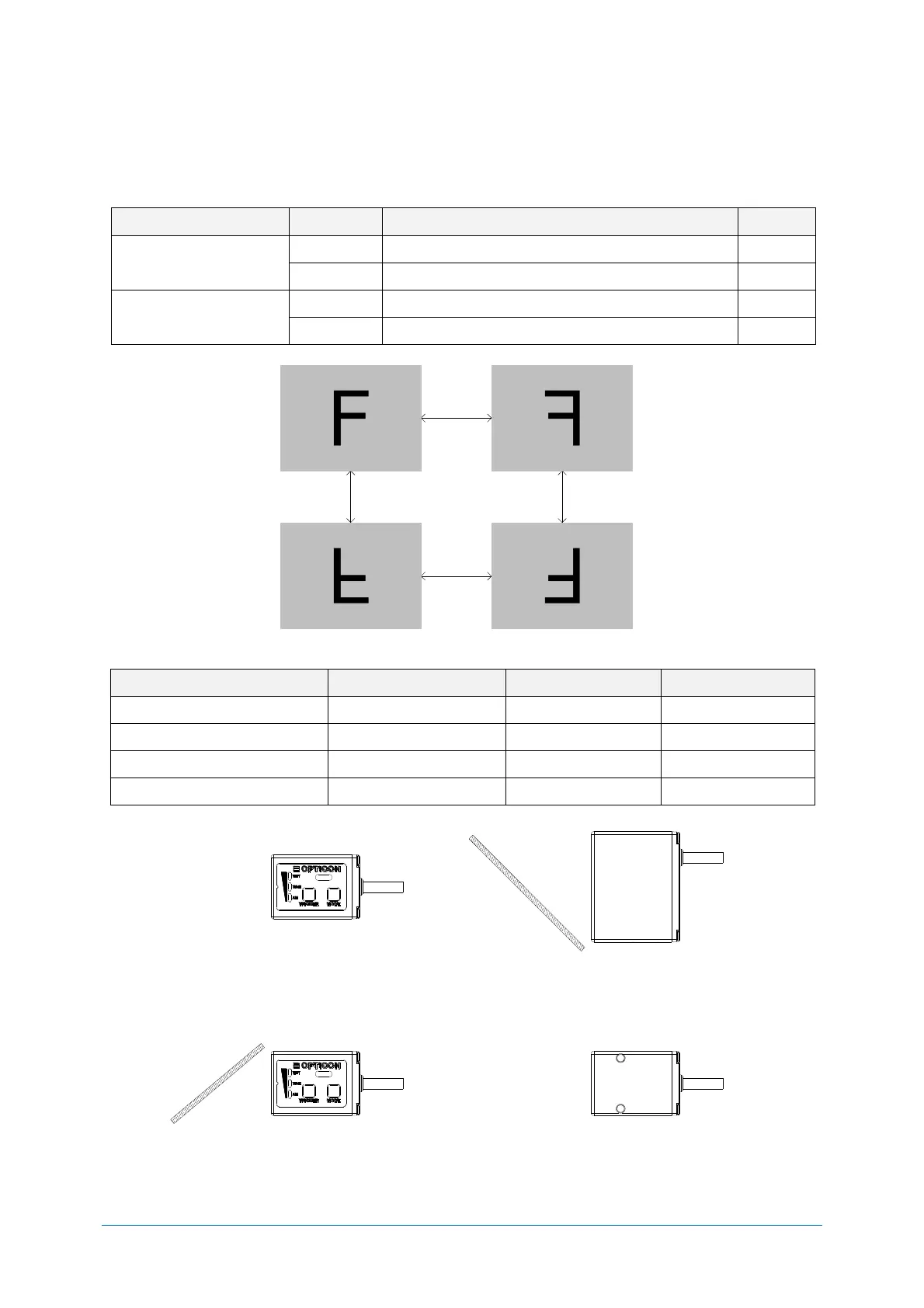

Image Settings
3.3.5
When the scanner is mounted upside down, it should rotate the sensor data by 180º. This
configuration is required especially for image acquisition and OCR reading.
When an external mirror is installed in front of the scan engine, the scanner should mirror the sensor
data. Two options are available for that, horizontal mirror and vertical mirror.
Item
Command
Description
Default
Horizontal mirrored
[EFU
Disable horizontal mirrored image configuration

[EFV
Enable horizontal mirrored image configuration
Vertical mirrored
[E8J
Disable vertical mirrored image configuration

[E8I
Enable vertical mirrored image configuration
Configuration commands
Style
Commands
Horizontal mirror
Vertical mirror
 Normal image
[EFU[E8J
Disable
Disable
 Horizontal mirror image
[EFV[E8J
Enable
Disable
 Vertical mirror image
[EFU[E8I
Disable
Enable
 180° rotated image
[EFV[E8I
Enable
Enable
Horizontal
Mirror
Horizontal
Mirror
Vertical
Mirror
Vertical
Mirror
①Normal Image
③Vertical Mirrored Image
②Horizontal Mirrored Image
④180° Rotated Image
Top (Device)
Bottom (Device)
[①Normal image]
[②Horizontal mirror image]
[③Vertical mirror image]
Mirror
[④180° rotated image]
Right (Device)
Left (Device)
Mirror
Top (Device)
Bottom (Device)
Top (Device)
Bottom (Device)
