Chapter-2
Before Using
Installation of the Scanner
2.9
The installation of the scanner is described as below.
・Mount the scanner using the assigned screw holes on the bottom or side.
・Do not screw down further than the limitation of its depth.
・The scanner’s anti-shock reliability is confirmed only in case impulse (acceleration) is applied via the
contact surface. However, the scanner cannot withstand direct shock since it consists of precise
optical elements.

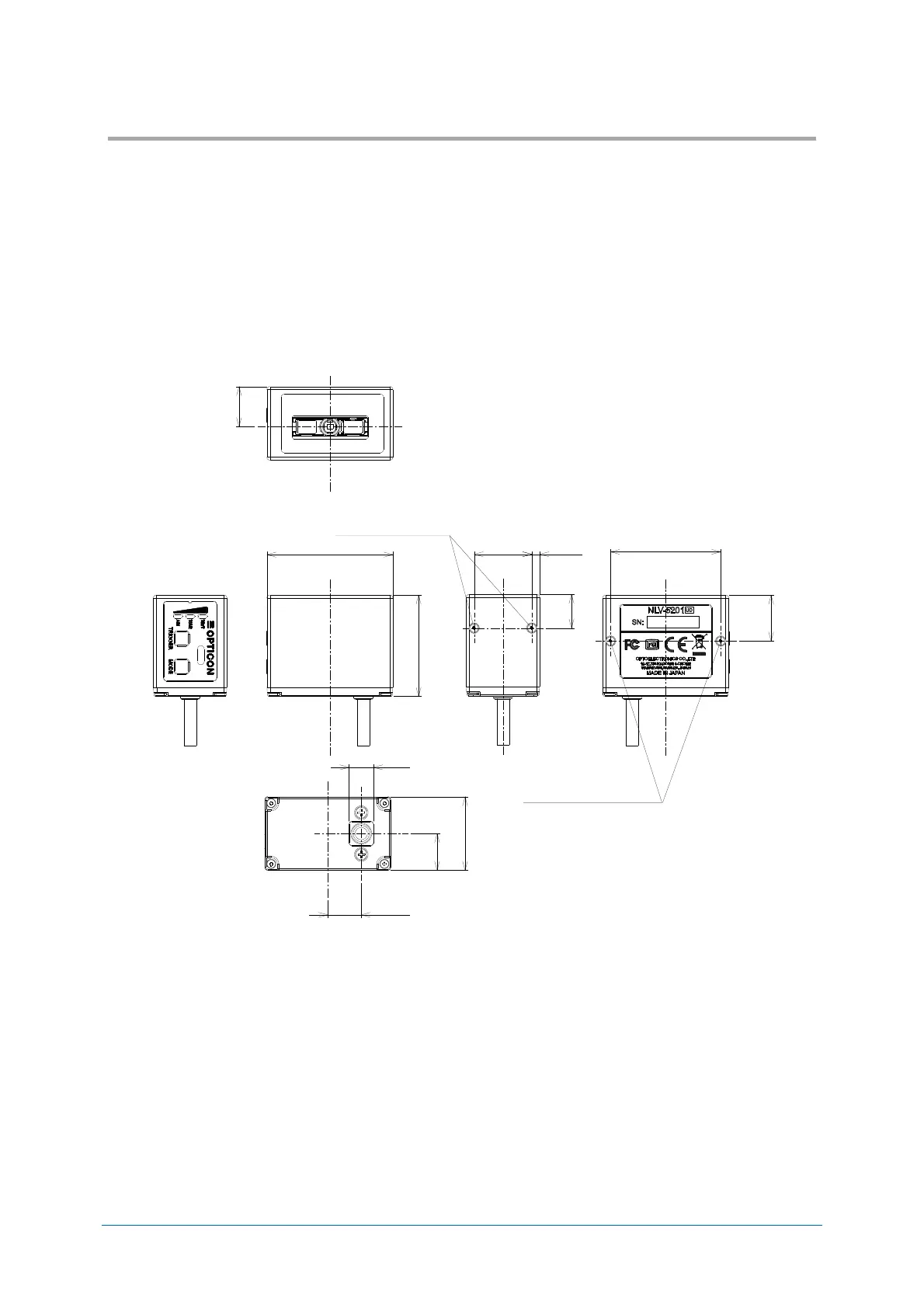

NLV-5201 Installation
Recommend screw type: M3
Recommend torque: Less than 20 Ncm.
Maximum screw depth: 3.5 mm from the mounting surface of the scanner.
Dimensions: Approx. 41.1 (W) ×33.0 (H) ×24.0 (D)
Weight: Approx. 30 g (excluding cable)
Cable: 1.5 m
Please contact sales for 3D CAD data.
Mounting Holes
M3 Depth 3.5
41.1
33
10.9
12
24
35.9
15
8
18.8
Mounting Holes
M3 Depth 3.5
11
2.6
X X X X X X
13.11
[Unit: mm]
