Opticon NLV-5201 - Scan Area; Image Range

Chapter-2
Before Using
NLV-5201 User's Manual
24
1st
Scan Area
2.10

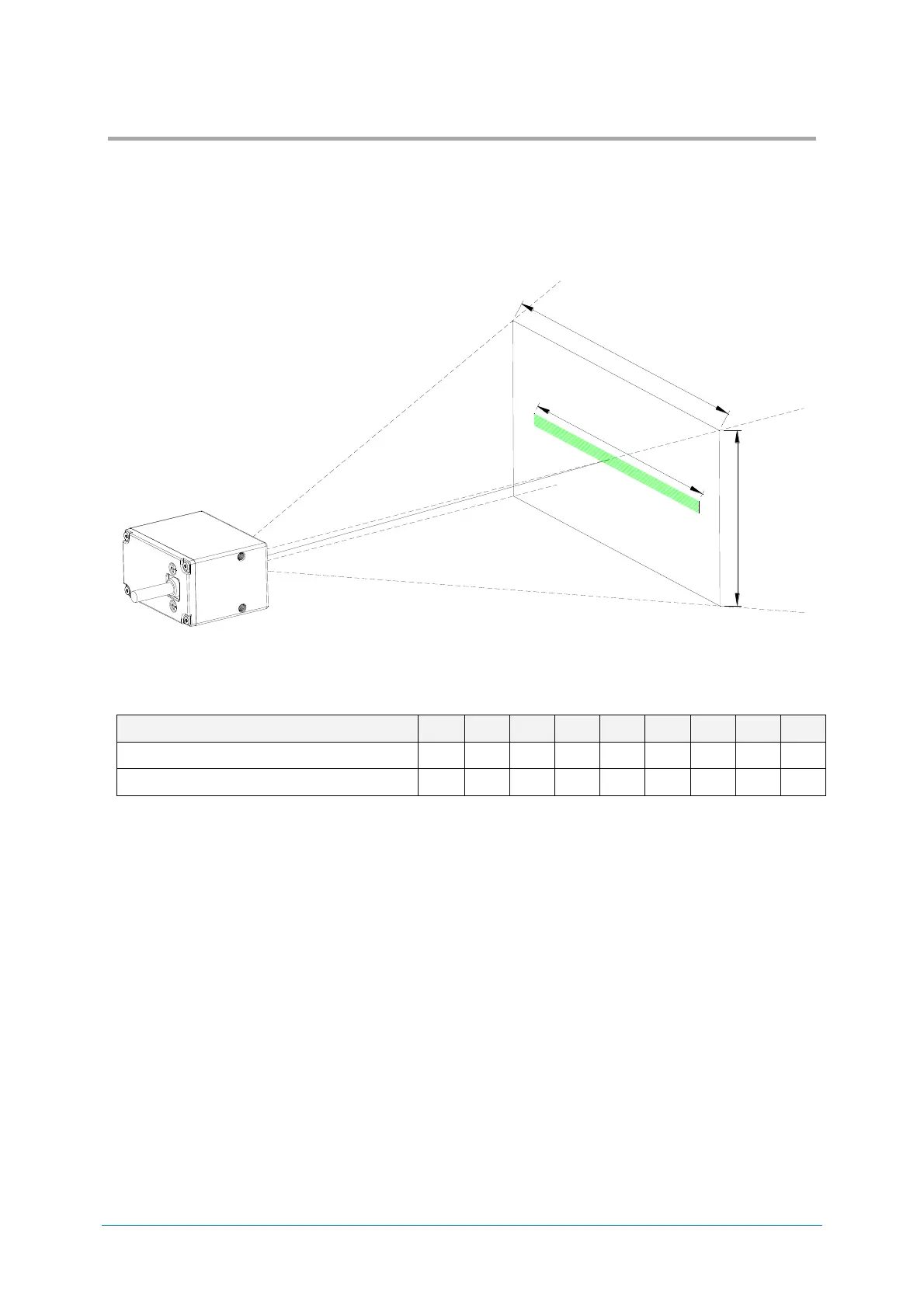

Image range is as follows.
Image Range 2.10.1
NLV-5201 image range is as follows.
Install a frame with sufficient clearance for the field of view.
The range is ±5% from the following values.
Image Range
L: Distance from the front edge of scanner
[mm]
40
60
80
100
120
140
160
180
Horizontal FOV
[mm]
29.6
43.4
57.1
70.9
84.7
98.5
112.3
126.0
Vertical FOV
[mm]
22.1
32.4
42.7
53.0
63.3
73.6
83.9
94.2
* The table above shows the field of view which should not be obstructed by any parts of a housing.
Horizontal image width
Vertical image width
Aiming width
Distance:L
