Operation Transition
2.8
Following are the operation status transition of the scanner.
Normal Trigger 2.8.1
Status Description
Status
Description
Read
Acquiring image and reading is in progress with the warm white LED and
green aiming LED on.
Standby
Can start reading by serial command, pushing side trigger or the external
trigger input becomes active.
Reading operation stop*
The reading operation can be stopped by a successful decode, a stop
command, or a timeout period after release of the trigger.
* "Reading operation stop” is configured using commands. This cannot be done while using USB-HID interface.

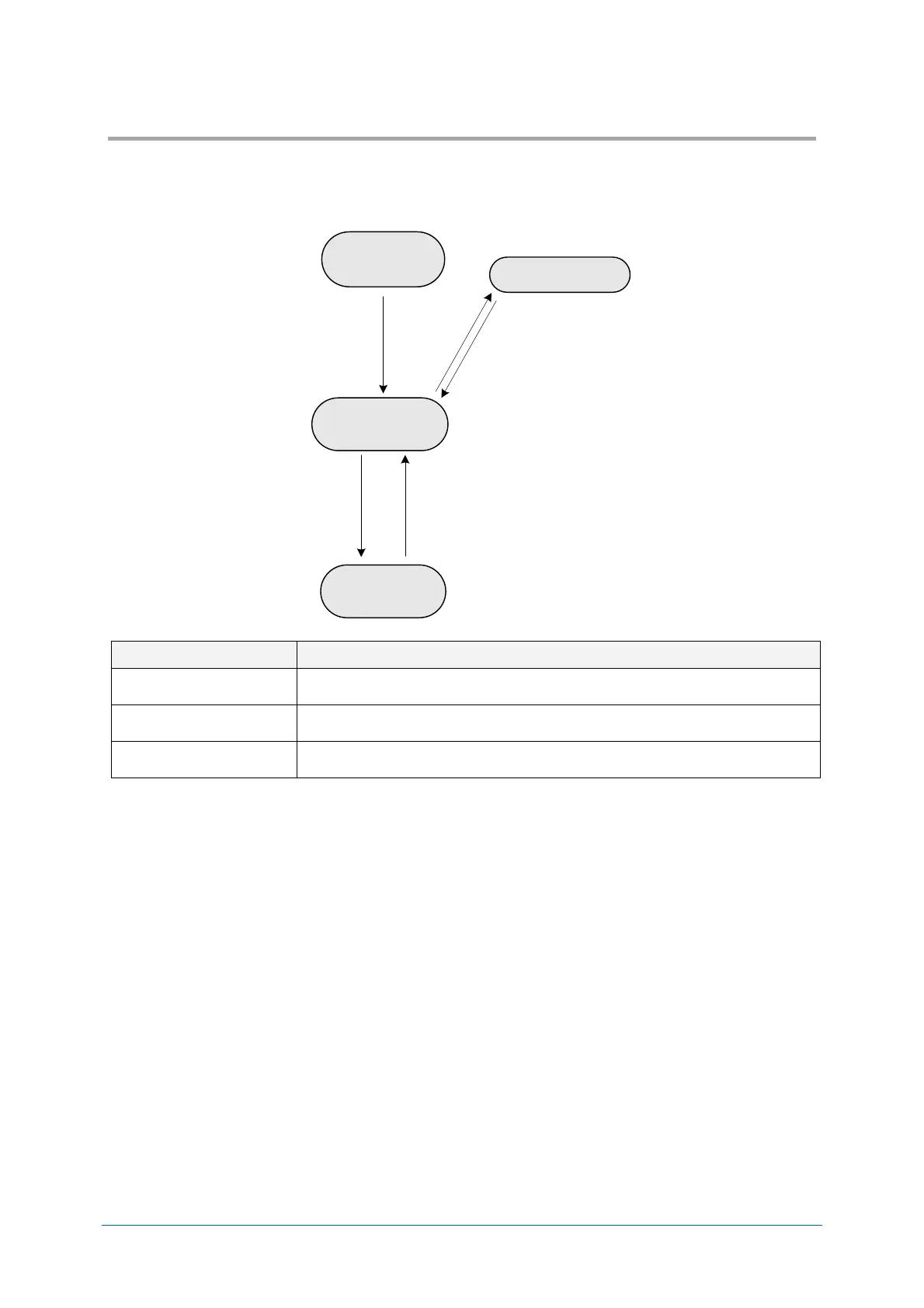

Power-OFF
Standby
Read
Non-Operation
Power
applied
Transition command
Recovery
command
Trigger
Scanning completes
or
Time out
