Optimum OPTImill BF 20V - Protective cover; Separating protective equipment

Version 4.0.2 dated 2019-4-3Page 14 Translation of the original instructions
BF20V | BF20L | BF20LDGB
BF20V_BF20L_BF20LD_GB_1.fm
OPTIMUM
MASCHINEN - GERMANY
®
1.9.2 Protective cover
The drilling / milling head is equipped
with a protective cover.
WARNING!
Only remove the protective cover
when the mains plug of the drilling-
milling machine is disconnected.

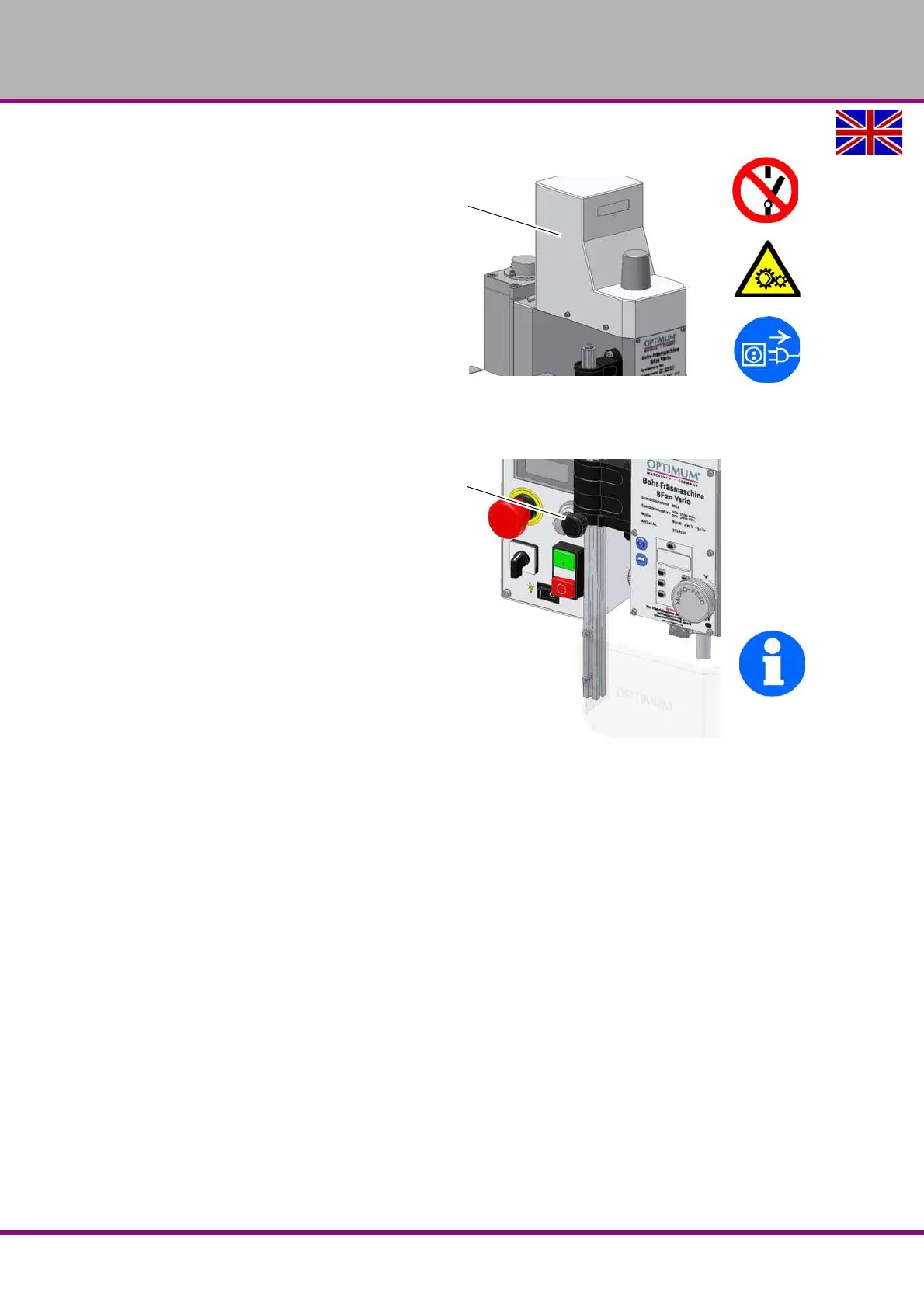

Img.1-2: Protective cover
1.9.3 Separating protective equipment
Adjust the protective equipment to the
correct height before you start working.
To do so, detach the clamping screw,
adjust the required height and re-tighten
the clamping screw.
A switch is integrated in the fixture of the
spindle protection which monitors that
the cover is closed.
INFORMATION
You cannot start the machine if the spin-
dle protection is not closed.
Img.1-3: Separating protective equipment
Protective cover
Clamping screw
