 Loosen or completely unscrew the
screw.
 Remove the mill head to the front.

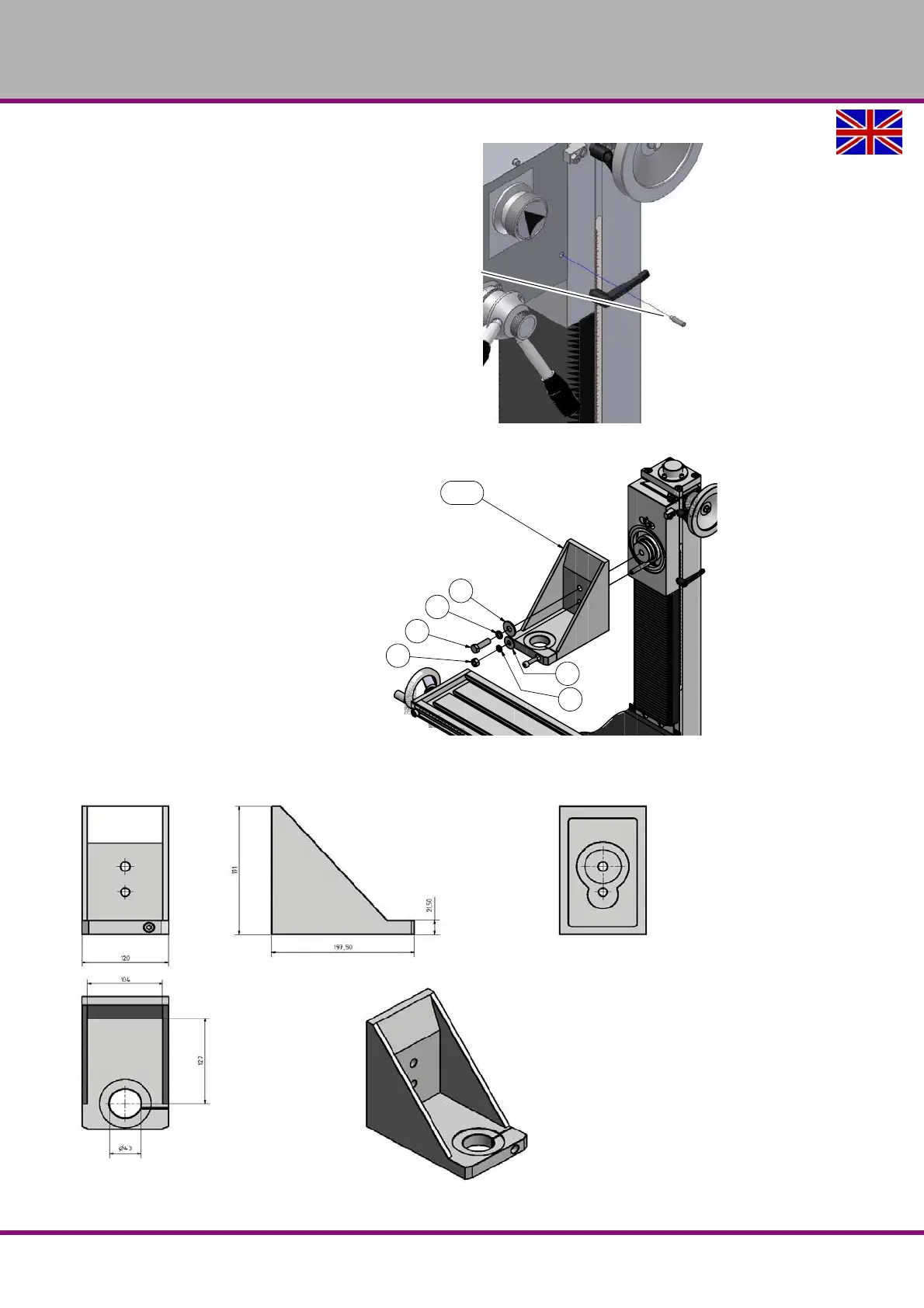

Img.4-11: Safety bolt
 The high speed adapter will be
aligned and fixed with the same fix-
ing screws as the mill head on the
turning bearingblock.
Img.4-12: high speed adapter
4.13.1 Drawing adapter for a high speed motor
Img.4-13: high speed adapter 3356571
Screw position 266
8
7
6
12
10
11
3356571
