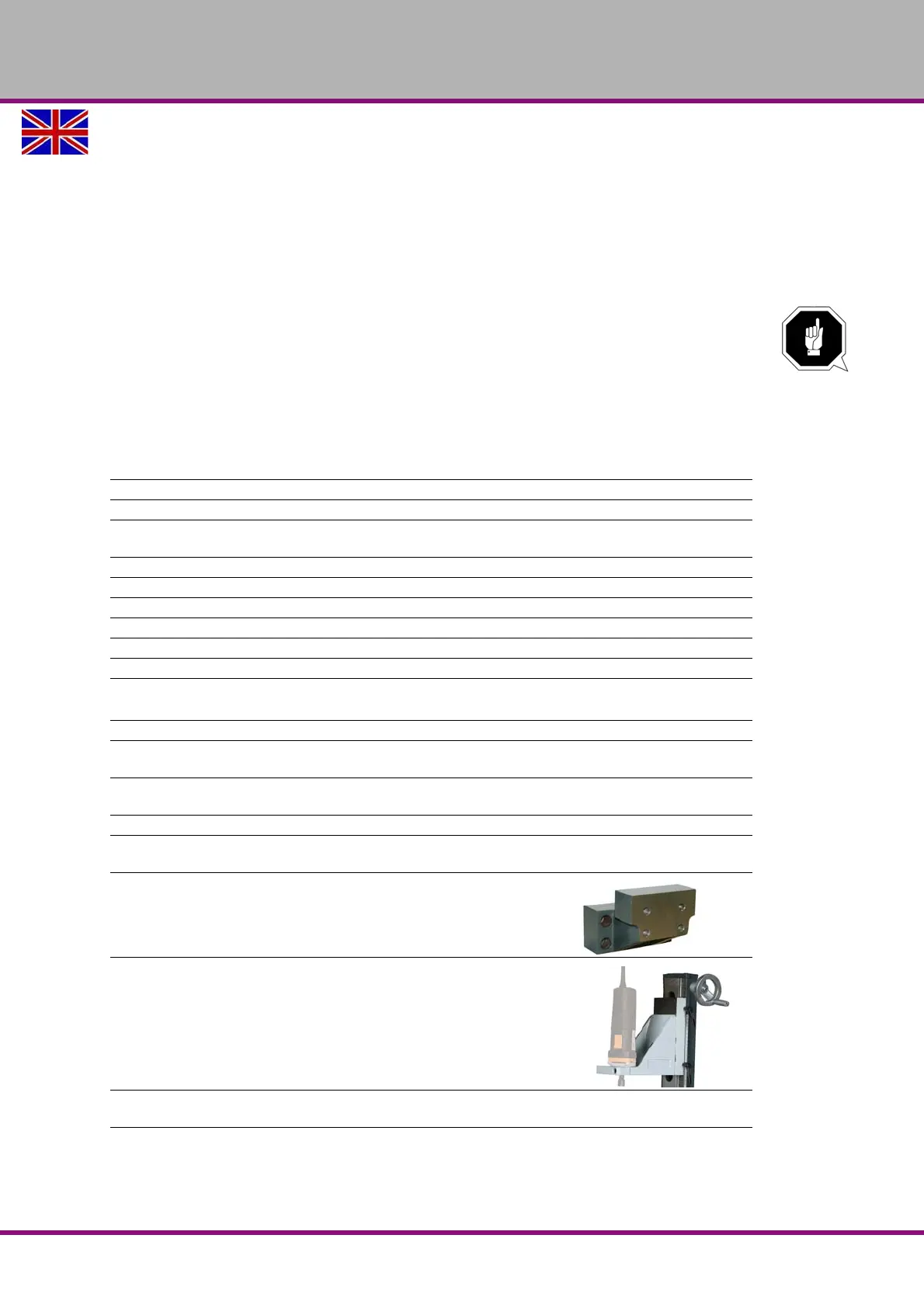

Version 4.0.2 dated 2019-4-3 Page 25Translation of the original instructions
BF20V | BF20L | BF20LD GB
BF20V_BF20L_BF20LD_GB_3.fm
OPTIMUM
MASCHINEN - GERMANY
®
Lubricate the drilling-milling machine according to the lubricating plan.
"Inspection and maintenance“ on page 44
Check if all spindles are running smoothly. The spindle nuts are re-adjustable.
Disassemble the V-ledges of the cross table and clean the ledges from the anti-corrosive
agent.
"V-ledges“ on page 44
3.4.3 Warming up the machine
ATTENTION!
If the drilling-milling machine and in particular the milling spindle is immediately
operated at maximum load when it is cold it may result in damages.
If the machine is cold such as e.g. directly after having transported the machine it should be
warmed up at a spindle speed of only 500 1/min for the first 30 minutes.
3.5 Optional accessory
Designation Item No
machine base 335 3002
machine base 335 3003
Collet chucks kit 5-pcs MT2 / M10
directly clamping
335 1980
Collet chuck holder MT2 / M10 (ER25) 335 2044
Set of collet chucks, 1-16mm 15 pieces (ER25) 344 1109
Collet chuck holder MT2 / M10 (ER32) 335 2045
Collet chucks kit 3-20mm 18-pcs (ER32) 344 1122
Quick-action drill chuck (0-13mm) B16 305 0623
Morse taper taper mandrel MT2 / M10 / B16 305 0670
Mill cutter holding cone MT2 / M10
id=16mm
335 2102
Machine vice FMSN 100 335 4110
Three-axis vice DAS 75
slewable, turnable, tiltable
335 4175
Two-axis vice ZAS 50
slewable, turnable
335 4170
Chucking tool kit SPW 10 335 2016
Milling cutter kit 12-pcs (4-5-6-10-12), each two-
and four-edged, TIN-coated
335 2113
Add-on adapter to the machine bed
lathe TU2506 / TU2807
335 6572
Adapter for high speed motor
(without high speed motor)
335 6571
round cell 1,55V 145mAh (SR44)
11.6 x 5.4mm
338 5480
