Use the option of shifting if you need to swivel the drill-mill head to the left or to the right for
working.
4.13 Assembly of the optional adapter for a high speed motor
The machine BF20V and BF20L covered by the standard DIN EN 13128 (milling machines,
including drilling machines). The one who changed the BF20V and BF20L is legally the manu-
facturer of a new machine due to the significant change in the machine and is therefore respon-
sible for compliance with the requirements of the Machinery Directive and the DIN EN 13128.
CAUTION!
Two persons are needed to disassemble the milling head since the milling head needs to
be held in its position when disassembling the screws.

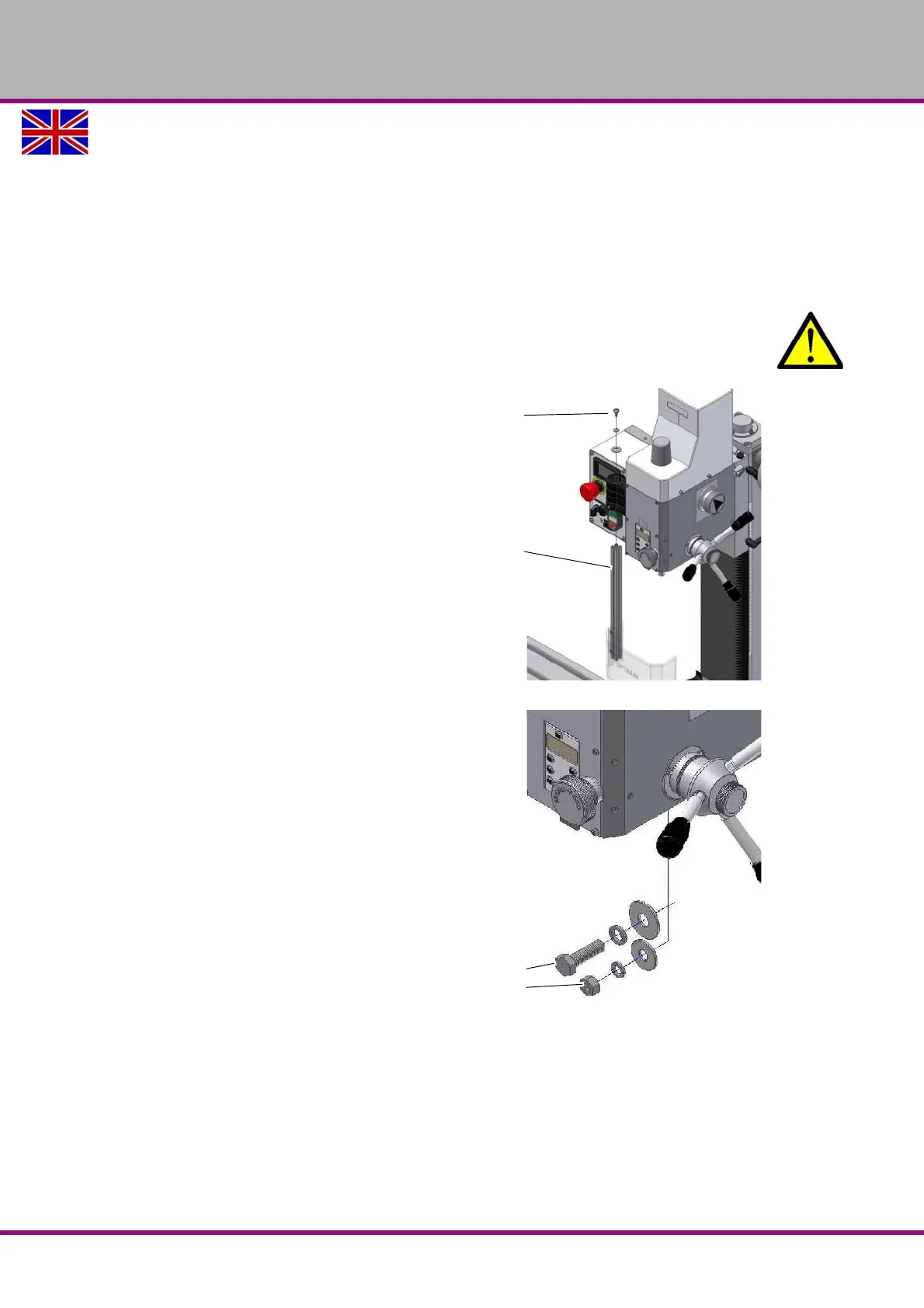

Remove spindle protection.
Remove the screw and pull the alu-
minium profile with blinds from the
guiding.
Img.4-9: Spindle protection
Disassemble clamping screw and
nut.
Img.4-10: Fastening screws
Safety bolt
Aluminium profile
