As required
V-ledges
Readjusting
Z axis

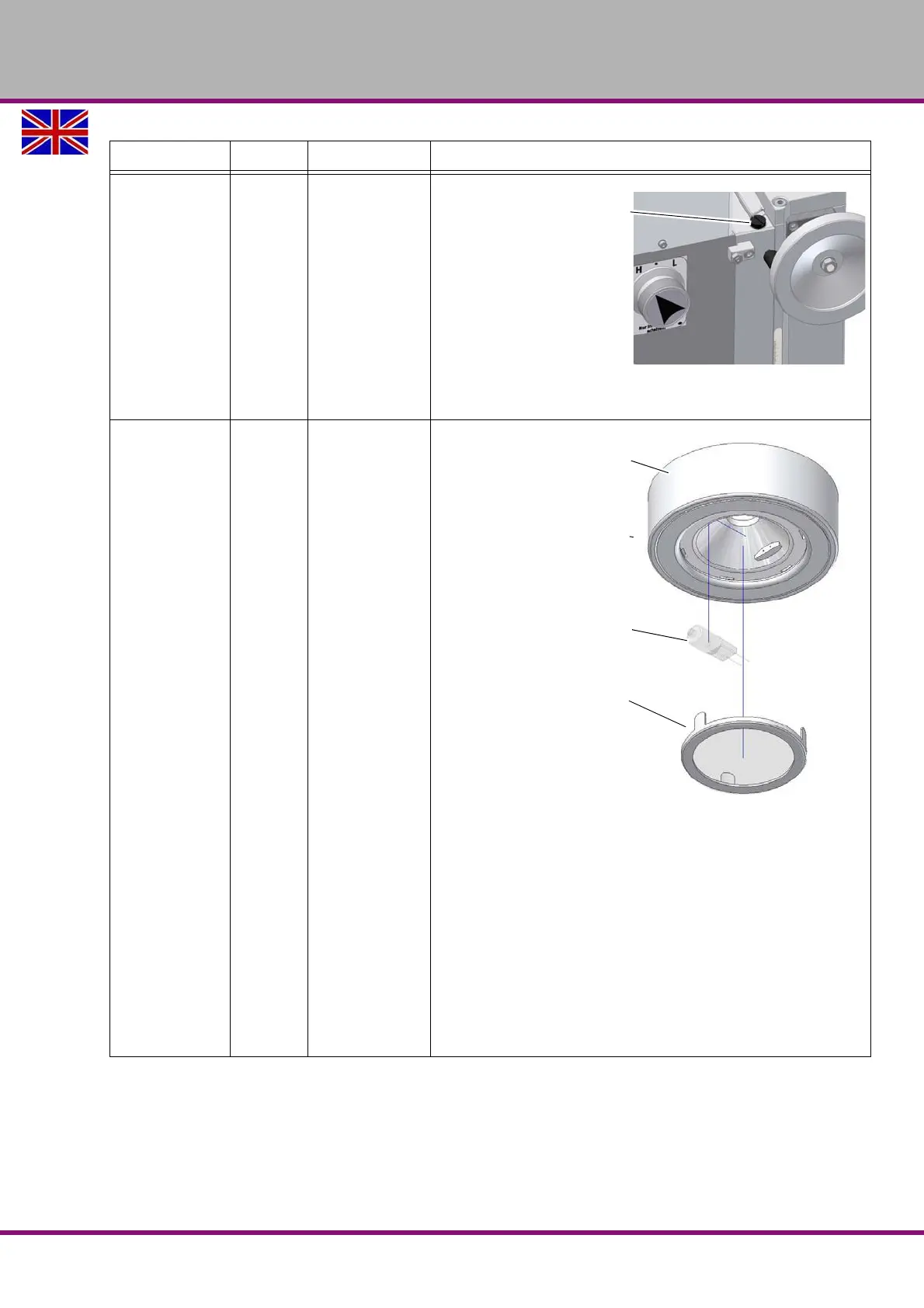

Img.6-2: Milling head
 Proceed as described under "Readjusting X and Y axis".
As required
Machine illumination
Replacing the
halogen lamp
Img.6-3: Replacing the halogen lamp
 Tilt the mill head a little to the right. This way you can
easily remove the lamp cover in order to allow replacing
of the halogen lamp.
 Plug a small screw driver into the recess between the
lamp holder and the lamp cover.
 By slightly turning the screw driver you can remove the
lamp cover.
 Pull the halogen pin base lamp with a cloth and replace
the halogen lamp.
Type:
Halogen pin base lamp, Osram 12V - 10W, base G4
Interval Where? What? How?
Take-up screw
taper gib Z axis
Lamp holder
Halogen pin base lamp
Lamp cover
