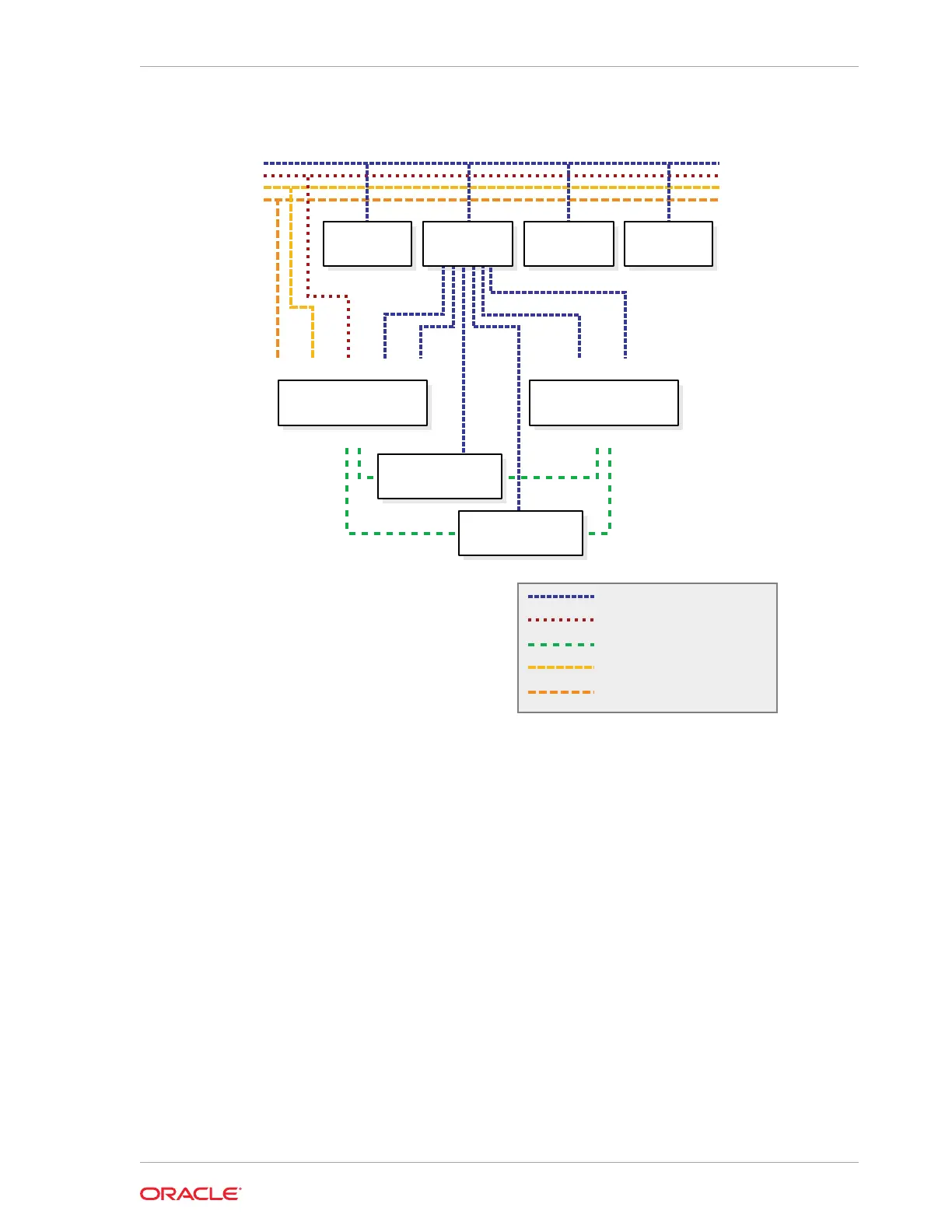

Figure 2-4 Network Diagram for Oracle Exadata Database Machine Two-Socket
Systems When Not Using Bonding
BONDIB0
Oracle
Database Server
Management
Client Access
Private InfiniBand
Additional network 1 (optional)
Additional network 2 (optional)
NET2 NET1 NET0 NET0 ILOM ILOMNET3
BONDIB0
Exadata
Storage Servers
InfiniBand
Switch
InfiniBand
Switch
Ethernet
Switch
KVM PDU A PDU B
2.4.2.2 Non-bonded Network Configuration for Oracle Exadata Database
Machine X5-8, X6-8, and X7-8
When using a non-bonded network configuration for Oracle Exadata Database
Machine X5-8, X6-8, and X7-8, the database servers are configured as follows:
• Port NET0: Provides access to the operating system using the management
network through the ETH0 interface.
• Port NET1: Provides access to the database using the client access network
through the ETH1 interface. The Oracle RAC SCAN and VIP addresses are
defined on this interface.
• Port NET MGT: Provides access to the ILOM using the management network.
Chapter 2
Network Channel Bonding Support
2-17
