Install the Cable Management Arm
Note - Throughout this installation procedure, support the CMA and do not allow it to hang
under its own weight until it is secured at all four attachment points.
6.
To install the CMA's connector A into the left slide rail:
a.

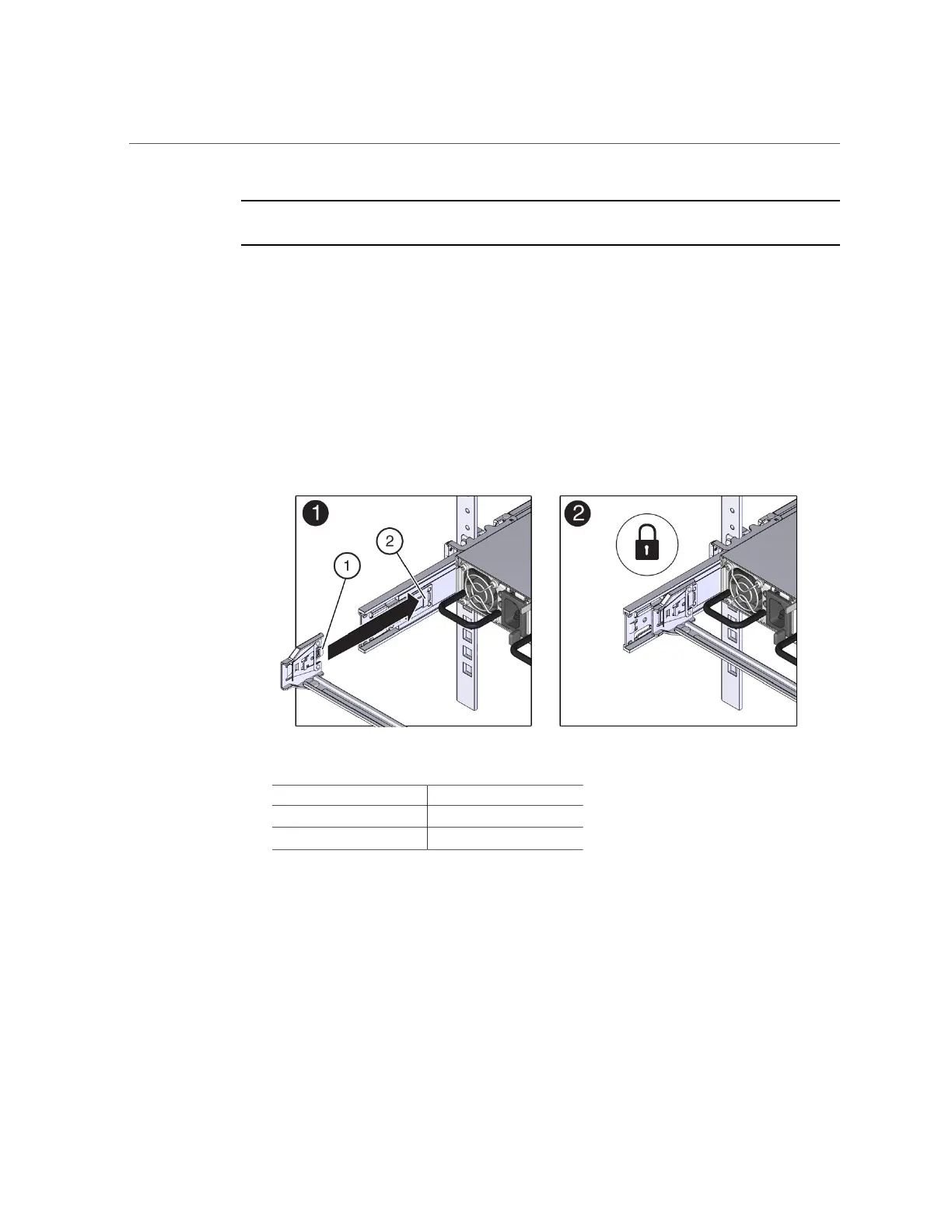

Insert the CMA's connector A into the front slot on the left slide-rail until it
locks into place with an audible click [frames 1 and 2].
The connector A tab (callout 1) goes into the slide-rail's front slot (callout 2).
b.
Gently tug on the left side of the front slide bar to verify that connector A is
properly seated.
Callout Description
1 Connector A tab
2 Left slide-rail front slot
7.
To install the CMA's connector B into the right slide-rail:
a.
Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click [frames 1 and 2].
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
