Installing a ZS5-4 onto the Rack Slide Rails

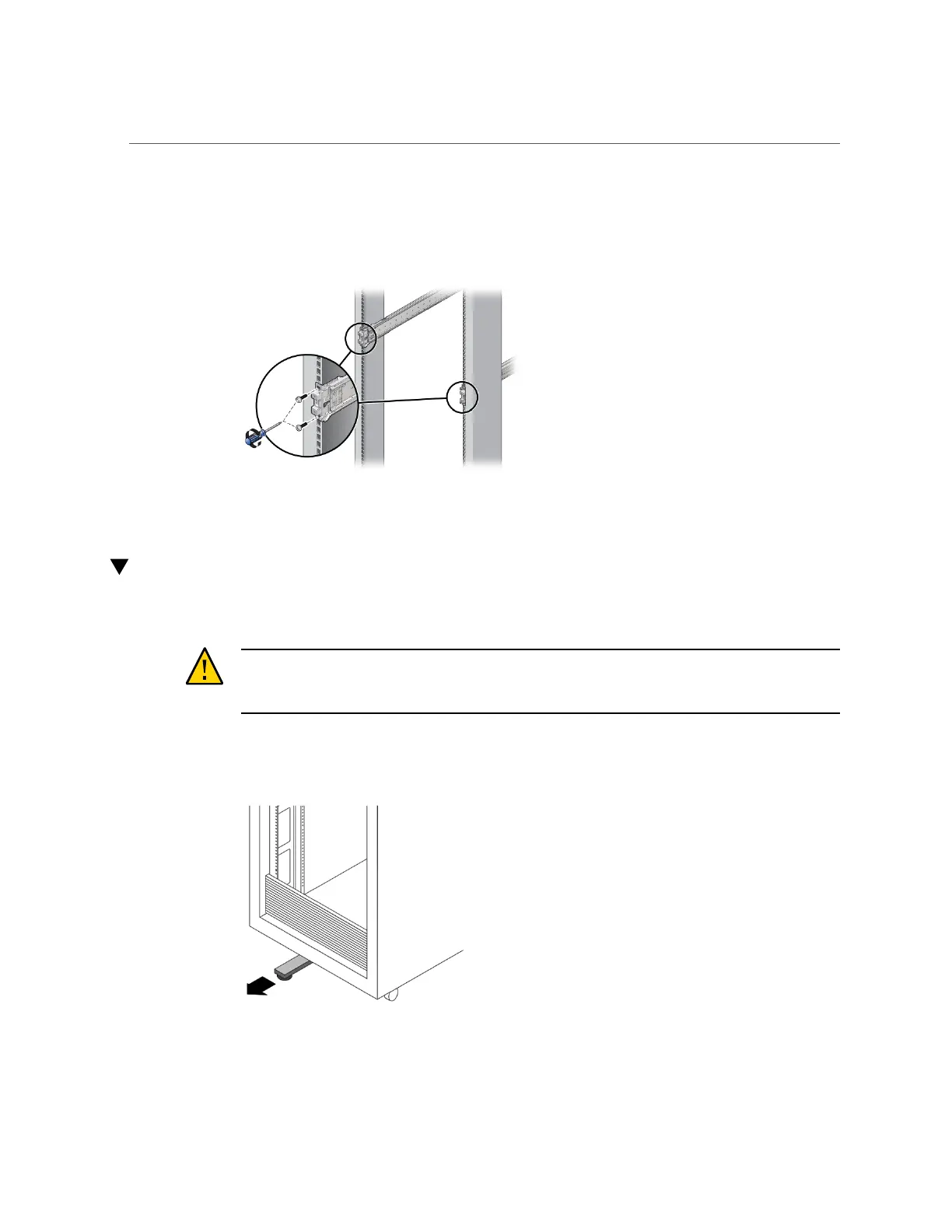

insert the mounting screws through the front and rear slide-rail brackets and
rack posts.
4.
Repeat Step 1 to Step 3 for the other slide-rail assembly.
Installing a ZS5-4 onto the Rack Slide Rails
Use the following procedure to install a ZS5-4 controller onto the rack slide rails.
Caution - This procedure requires a minimum of two people, or a mechanical lift, because of
the weight of the chassis. Attempting this procedure alone could result in equipment damage or
personal injury. Always load the heaviest equipment (disk shelves) at the bottom of the rack.
1.
If your rack includes an anti-tip foot, extend it from the bottom of the rack.
102 Oracle ZFS Storage Appliance Installation Guide • December 2016
