Installing a ZS5-2 onto the Rack Slide Rails
Installing a ZS5-2 onto the Rack Slide Rails
Use the following procedure to install a ZS5-2 controller onto the rack slide rails.
Caution - This procedure requires a minimum of two people because of the weight of the
chassis. Attempting this procedure alone could result in equipment damage or personal injury.
Always load equipment into rack from the bottom up.
1.

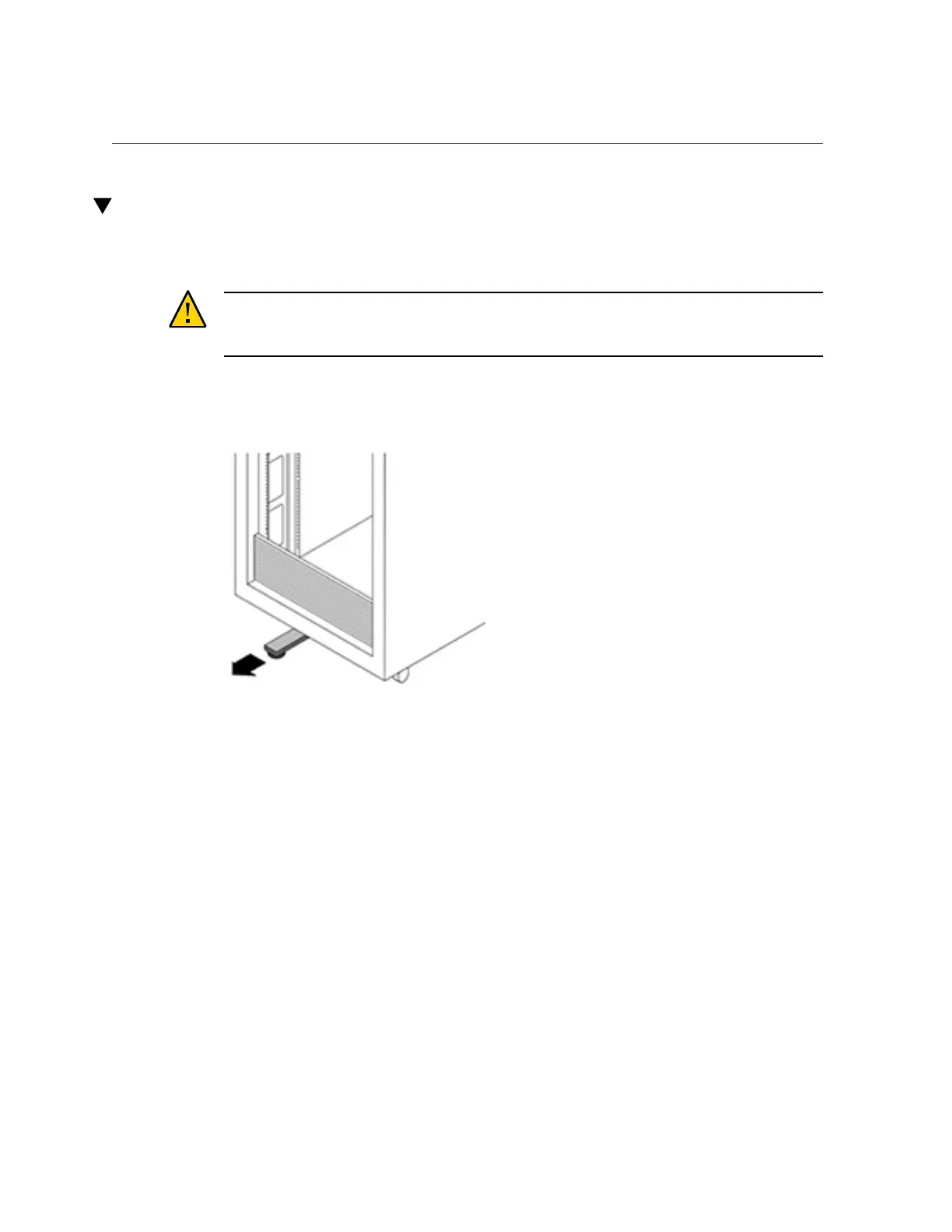

If your rack includes an anti-tip foot, extend it from the bottom of the rack.
2.
Lower the rack stabilization feet if you have not already done so.
3.
Pull the slide rails (mounted in the slide-rail assembly) toward you until the slide
rails stop (approximately 12 inches (30 cm) out of the rack).
4.
Raise the chassis so that the back ends of the mounting brackets are aligned
with the slide rail and insert the chassis into the slide rails, pushing the chassis
slowly, until the mounting brackets meet the slide rail stops (approximately 12
inches (30 cm) out of the rack). You will hear an audible click.
Installing a ZS5-2 Controller 115
