Overview of ZS4-4 Controller
Overview of ZS4-4 Controller
This section provides an overview of the Oracle ZFS Storage ZS4-4 controller. For installation
instructions, refer to “Installing a ZS4-4 or ZS3-4 Controller” on page 127. For service
instructions, refer to “Servicing the ZS4-4 Controller” in Oracle ZFS Storage Appliance
Customer Service Manual.
Refer to http://oracle.com/zfsstorage for the most recent component specification.
ZS4-4 Front Panel Components
The ZS4-4 controller drive slots and front panel components are shown in the following figure.

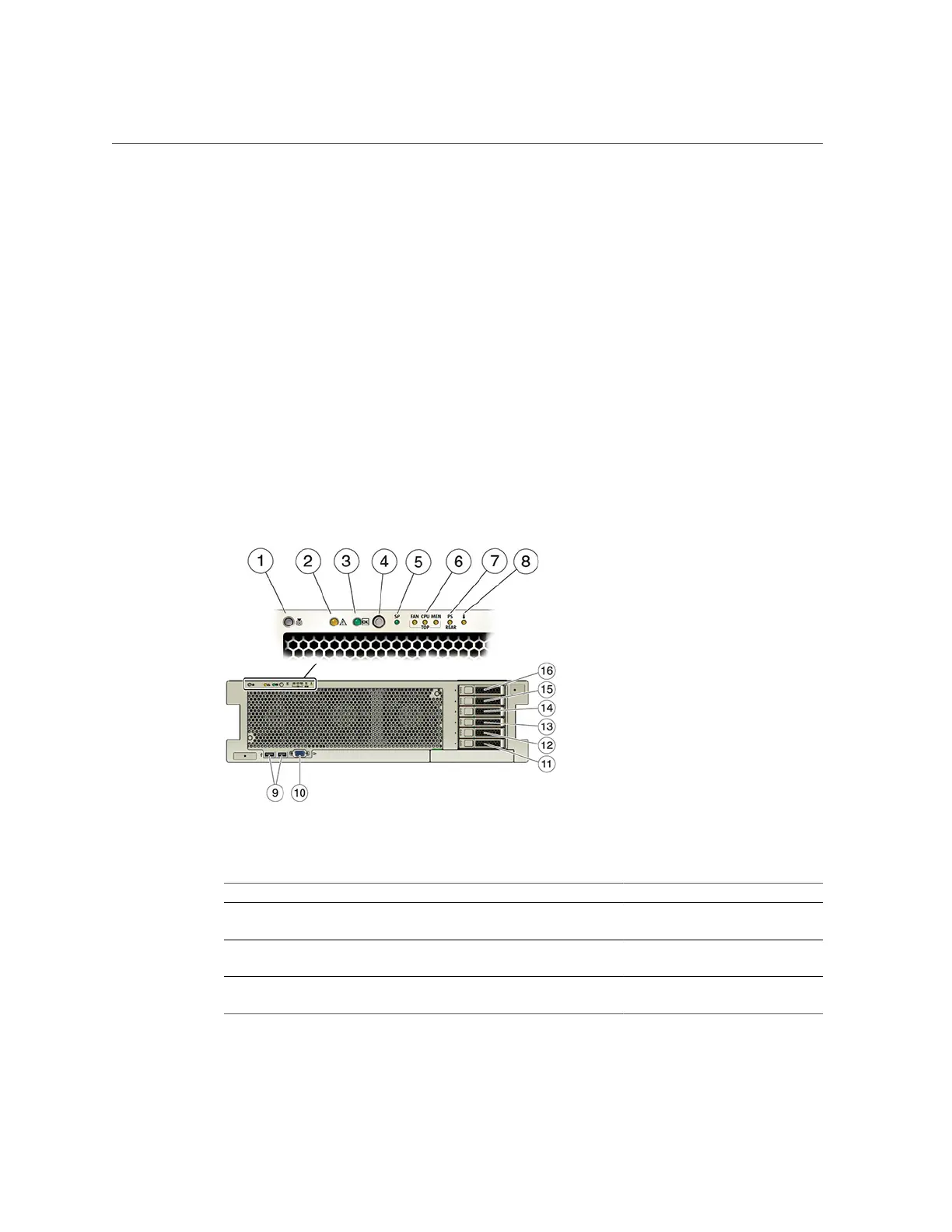

FIGURE 27
ZS4-4 Controller Front Panel
Figure Legend
1 Locator LED/button (white) 2 Service action required LED
(amber)
3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK (green)
/Fault (amber) LED
6 Fan/CPU/Memory Service action
required LED (amber)
7 Power Supply (PS) Service action
required LED (amber)
8 Over temperature warning LED
(amber)
9 USB 2.0 connectors (2)
Installation Prerequisites and Hardware Overviews 47
