Installing a 7x20 onto the Rack Slide Rails
2.

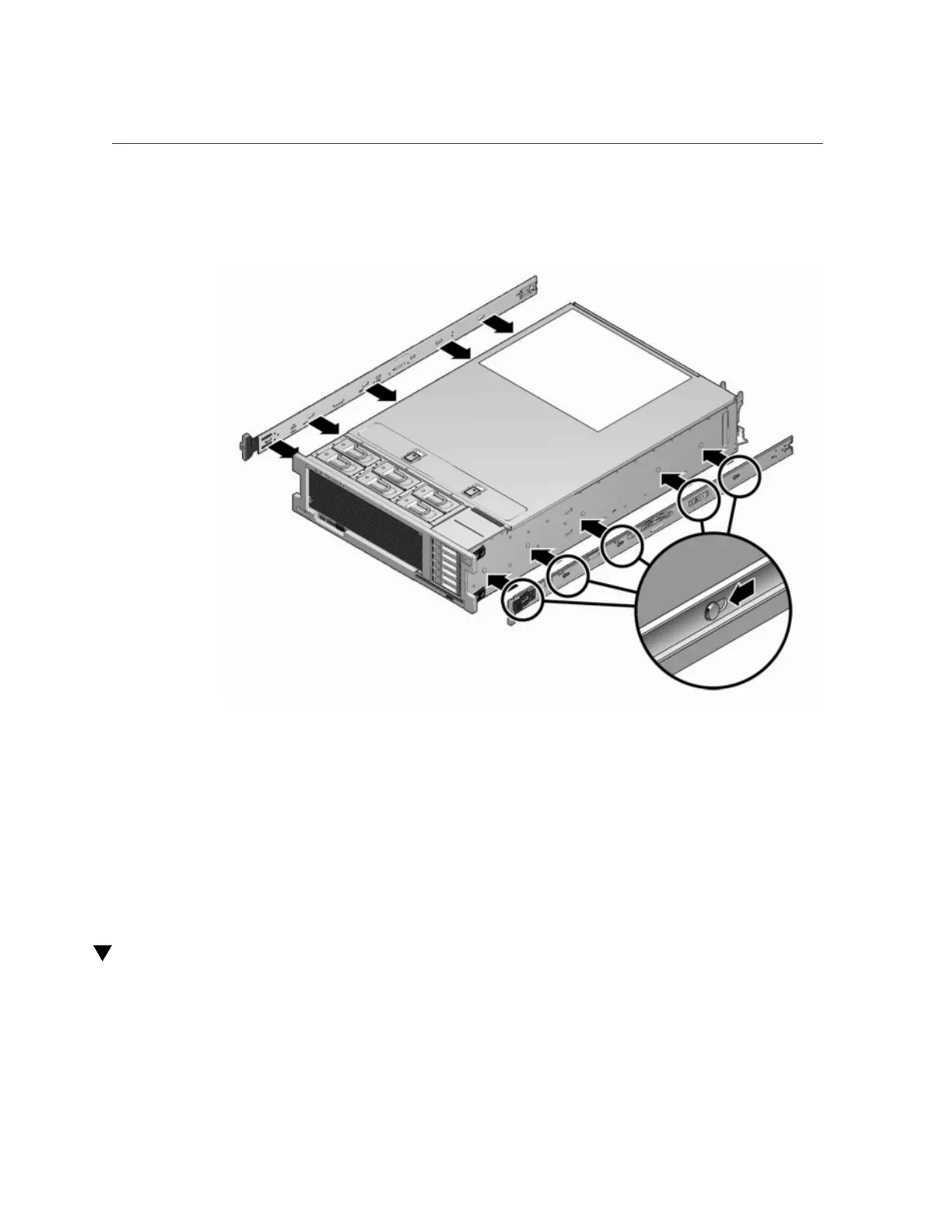

The following graphic illustrates how to attach the 7x20 mounting brackets.
3.
With the heads of the four chassis locating pins protruding though the four
keyed openings in the mounting bracket, pull the mounting-bracket toward the
front of the chassis until the mounting-bracket clip locks into place with an
audible click.
4.
Verify that all mounting pins are securely fastened to the chassis.
5.
Repeat to install the remaining mounting bracket on the other side of the
chassis.
Installing a 7x20 onto the Rack Slide Rails
Use the following procedure to install a 7420, 7320, or 7120 controller onto the rack slide rails.
Installing a 7x20 Controller 159
