Oracle ZS5 SERIES User Manual

Overview of Disk Shelves

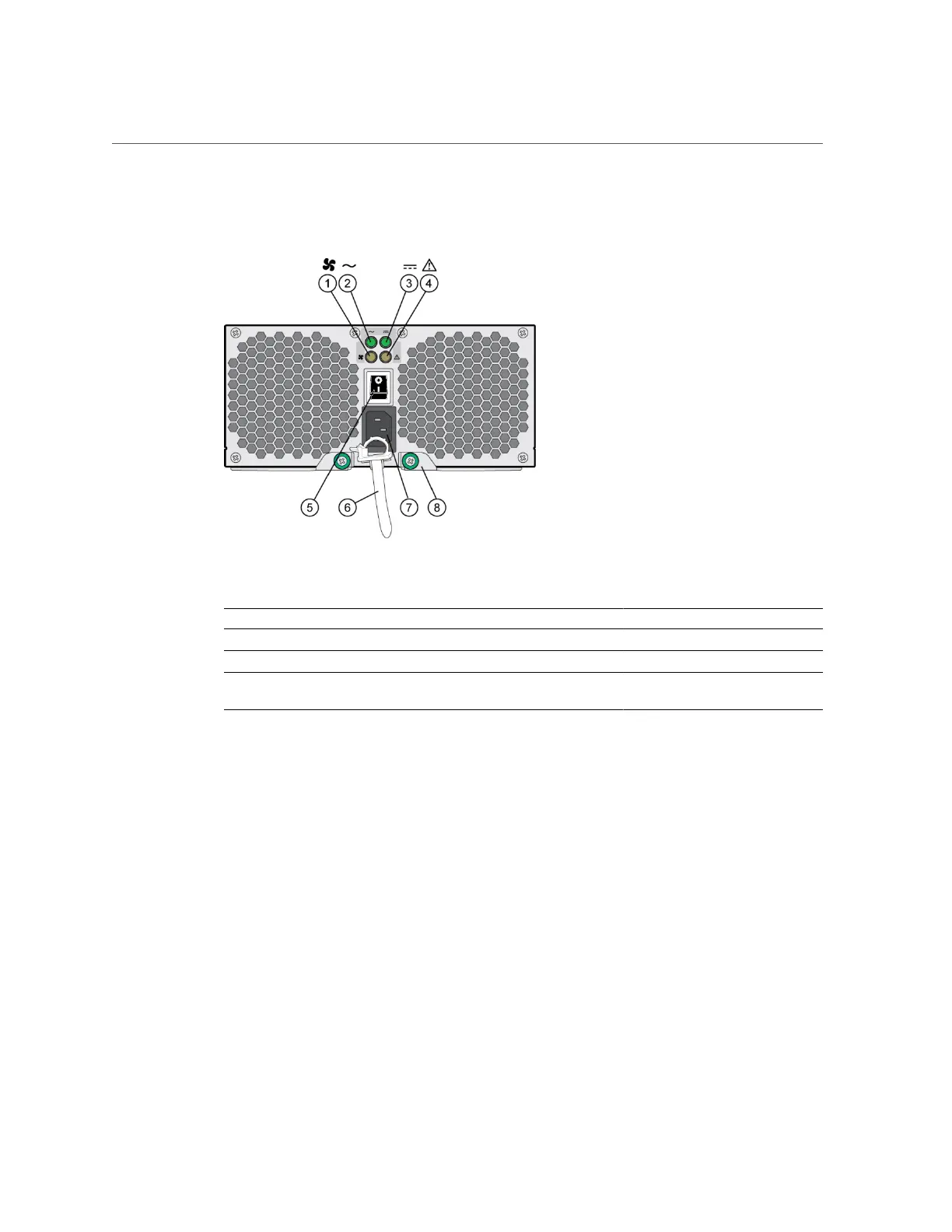

FIGURE 21
Sun Disk Shelf Power Supply and Fan Module Indicators
Figure Legend
1 Cooling fan status indicator 2 AC power status indicator 3 DC power status indicator
4 Power supply status indicator 5 Power on/off switch 6 Power cord tie wrap
7 Universal power input connector 8 Right ejection arm and captive
screw latch
Disk Shelf Components
The following sections describe each disk shelf's components:
Oracle Storage Drive Enclosure DE3-24P Components
■
Drive Enclosure DE3-24P Base Chassis
■
Filler Panel, Drive Enclosure DE3-24P
■
Up to 24 2.5" SAS-3 HDDs, SSDs. For information about supported HDDs and SSDs, see
the Oracle Systems Handbook.
Oracle Storage Drive Enclosure DE3-24C Components
■
Drive Enclosure DE3-24C Base Chassis
■
Filler Panel, Drive Enclosure DE3-24C
