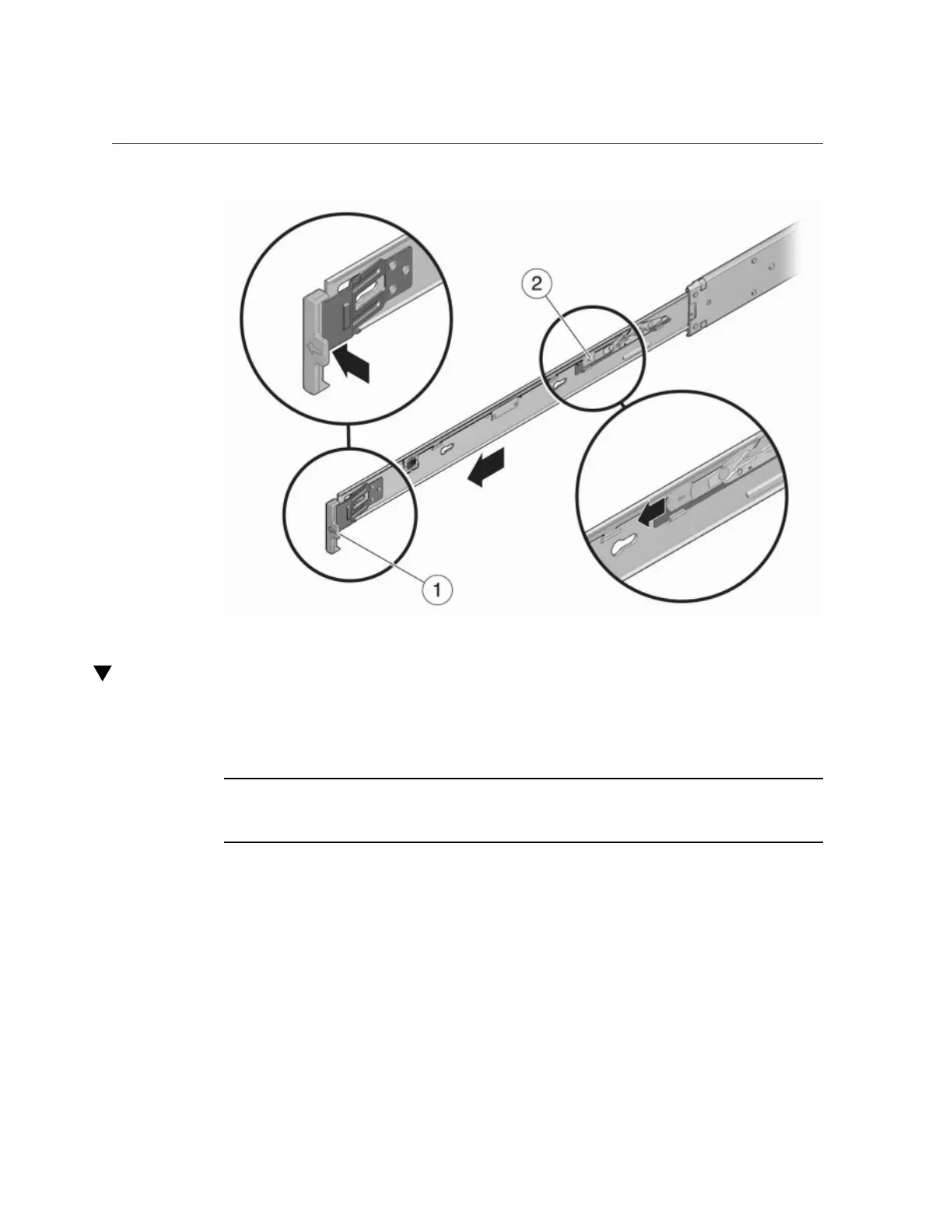

Installing the Mounting Brackets on a 7x20
Installing the Mounting Brackets on a 7x20
Use the following procedure to install the mounting brackets on a 7420, 7320, or 7120
controller.
Note - If the mounting brackets are shipped inside the slide rails, you must remove them before
beginning this procedure; see “Removing the 7x20 Mounting Brackets from inside the Slide
Rails” on page 155.
1.
Position a mounting bracket against the chassis so that the slide rail lock is at
the front of the chassis, and the keyed openings on the mounting bracket are
aligned with the locating pins on the side of the chassis.
Installing a 7x20 Controller 157
