Installing the Slide Rails into the Rack for a ZS4-4 or ZS3-4
Note - The mounting brackets are identical and can be installed on either side of the chassis.
2.

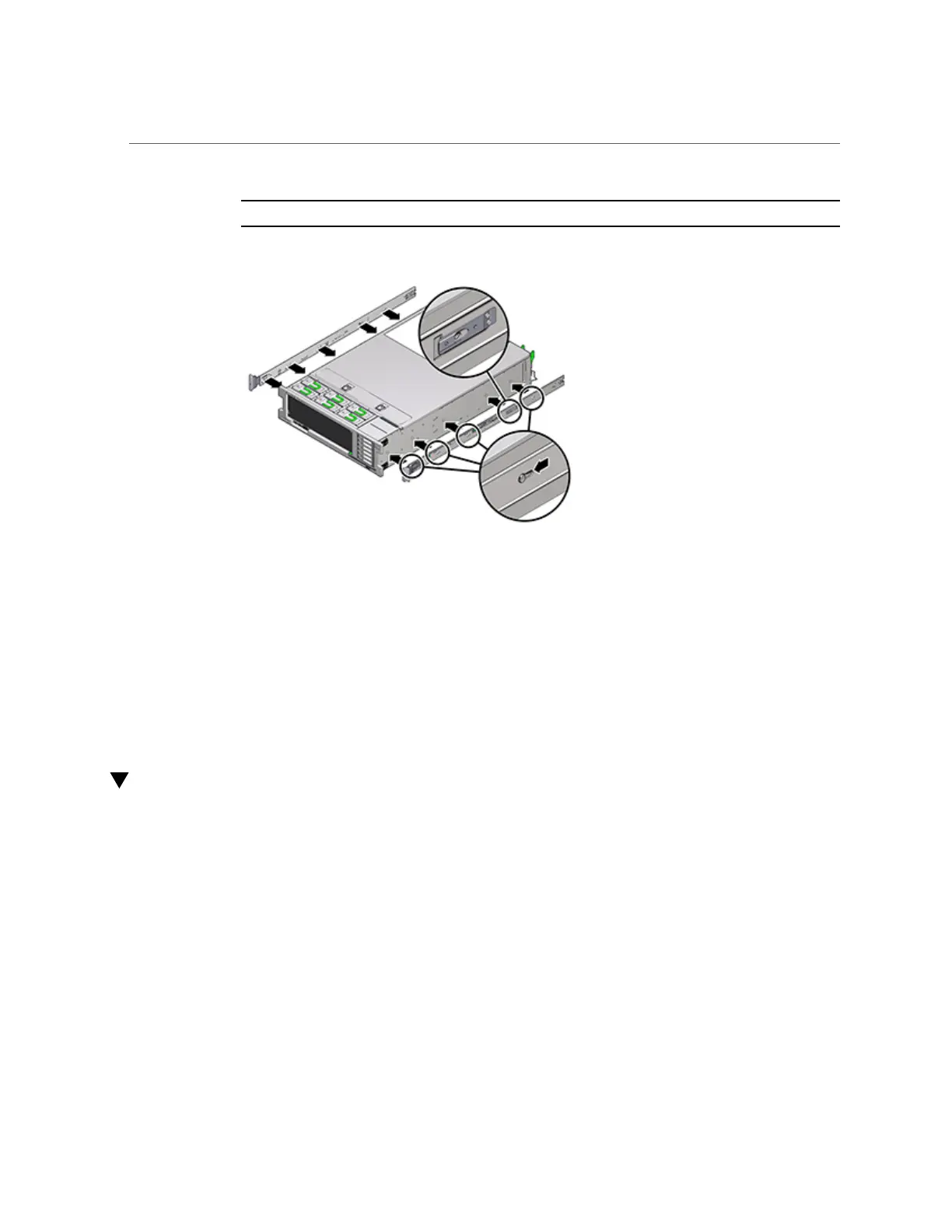

With the heads of the five chassis locating pins protruding through the five
keyed openings in the mounting bracket, pull the mounting bracket toward the
front of the chassis until the mounting bracket clip locks into place with an
audible click.
3.
Verify that the rear locating pin has engaged the mounting bracket clip.
4.
To install the other mounting bracket on the other side of the chassis, repeat
Steps 1 through 3.
Installing the Slide Rails into the Rack for a ZS4-4 or
ZS3-4
Use the following procedure to install the slide rails into the rack for a ZS4-4 or ZS3-4
controller.
If you plan to move the rack after the controller is installed, use mounting screws and cage nuts
to secure the slide-rail assembly. Refer to the Rail Rackmount Kit Overview and Information
card for instructions on inserting these cage nuts. This card is included with the rack kit.
128 Oracle ZFS Storage Appliance Installation Guide • December 2016
