Overview of 7120 Controller
■
Nominal frequencies: 50/60Hz
■
Nominal voltage range: 100-120/200-240 VAC
■
Maximum current AC RMS: 13.8A @ 100 VAC
■
AC operating range: 90-264 VAC
Output
■
3.3 VDC STBY: 3.0A
■
+12 VDC: 86.7A
Power dissipation
■
Max power consumption: 1235.3 W
■
Max heat output: 4212 BTU/hr
■
Volt-Ampere rating: 1261 VA @ 240 VAC, 0.98P.F.
7120 Front Panel Components
The following figure and legend show the front panel and the drive locations. The Logzilla 3.5"
SSD belongs in slot 3 and is not supported in controllers configured with the internal Sun Aura
flash HBA Logzilla.

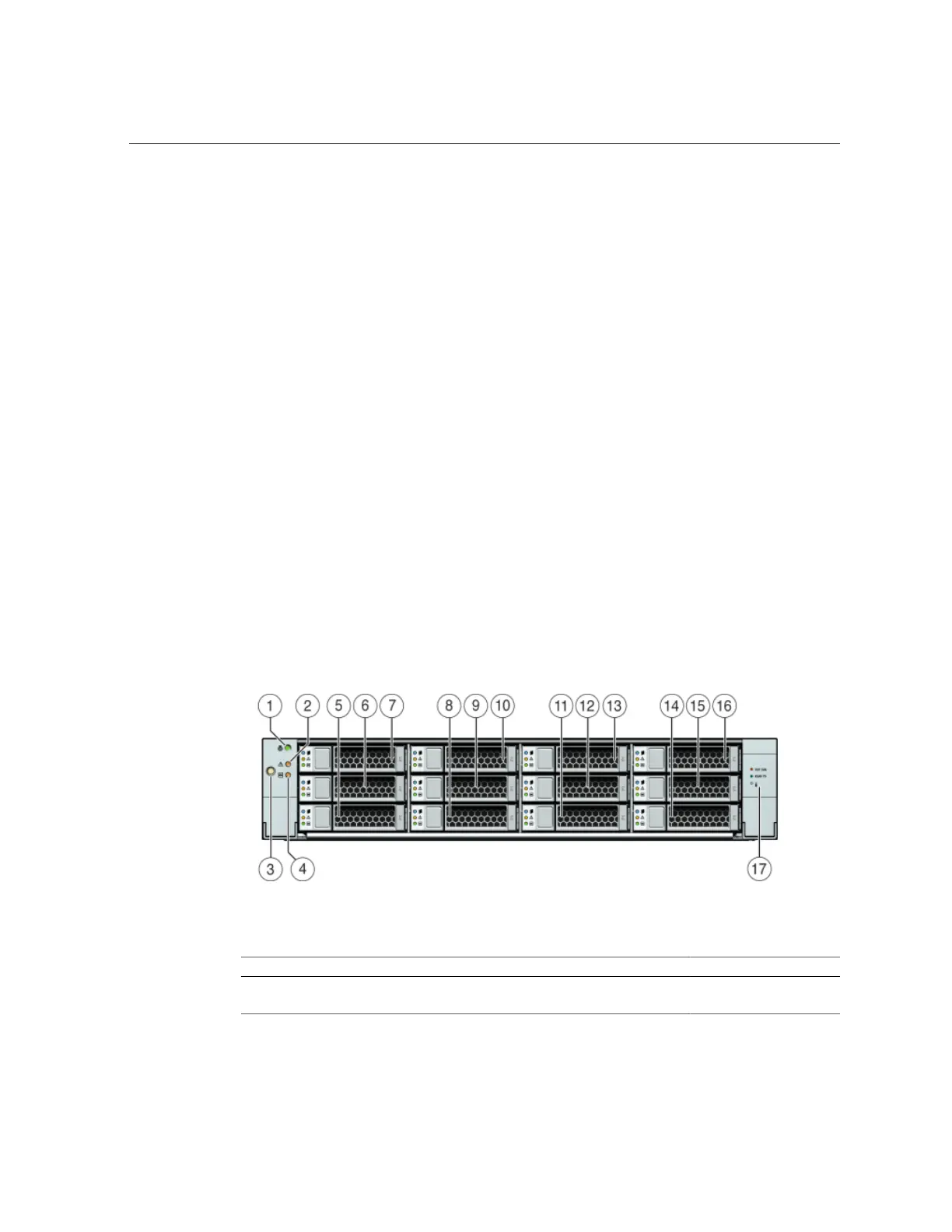

FIGURE 42
7120 Controller Front Panel
Figure Legend
1 Locator LED/button
(white)
2 Service Action Required
LED (amber)
3 Power button 4 Power/OK LED (green)
70 Oracle ZFS Storage Appliance Installation Guide • December 2016
