Overview of ZS3-4 Controller
ZS3-4 Front Panel Components

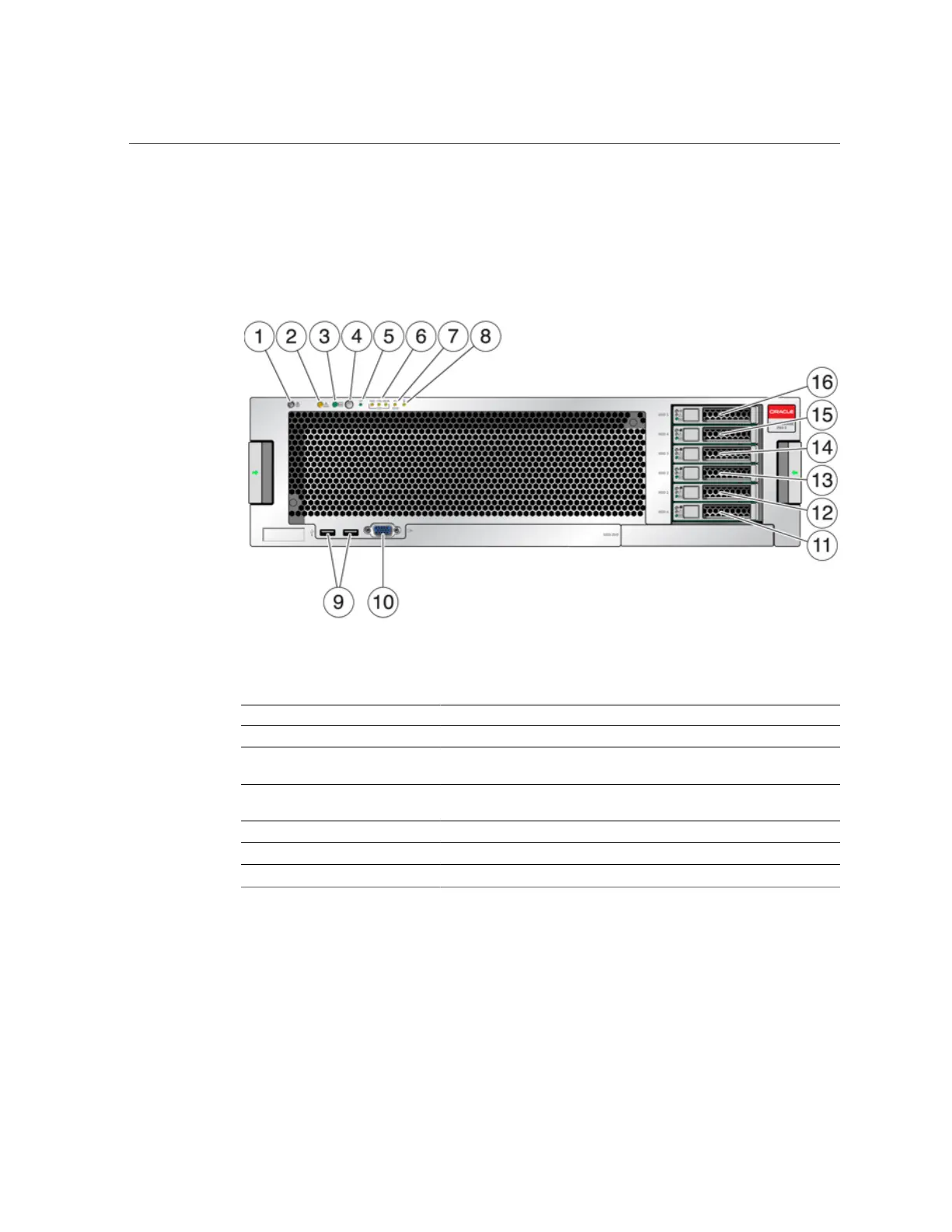

FIGURE 30
ZS3-4 Front Panel
Figure Legend
1 Locator LED and button (white) 2 Service Required LED (amber) 3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK LED
(green)
6 Fan/CPU/Memory Service
Required LED
7 Power Supply (PS) Service
Required LED
8 Over Temperature Warning LED 9 USB 2.0 Connectors
10 DB-15 video connector 11 Boot drive 0 (required) 12 Boot drive 1 (required)
13 Solid state drive 2 (optional) 14 Solid state drive 3 (optional) 15 Solid state drive 4 (optional)
16 Solid state drive 5 (optional)
The ZS3-4 controller has two SAS-2 system boot drives in slots 0 and 1, configured as a
mirrored pair. Up to four SAS-2 read cache SSDs can fill slots 2 through 5, in order. For
information about supported HDDs and SSDs, see the Oracle Systems Handbook.
52 Oracle ZFS Storage Appliance Installation Guide • December 2016
