Overview of Disk Shelves

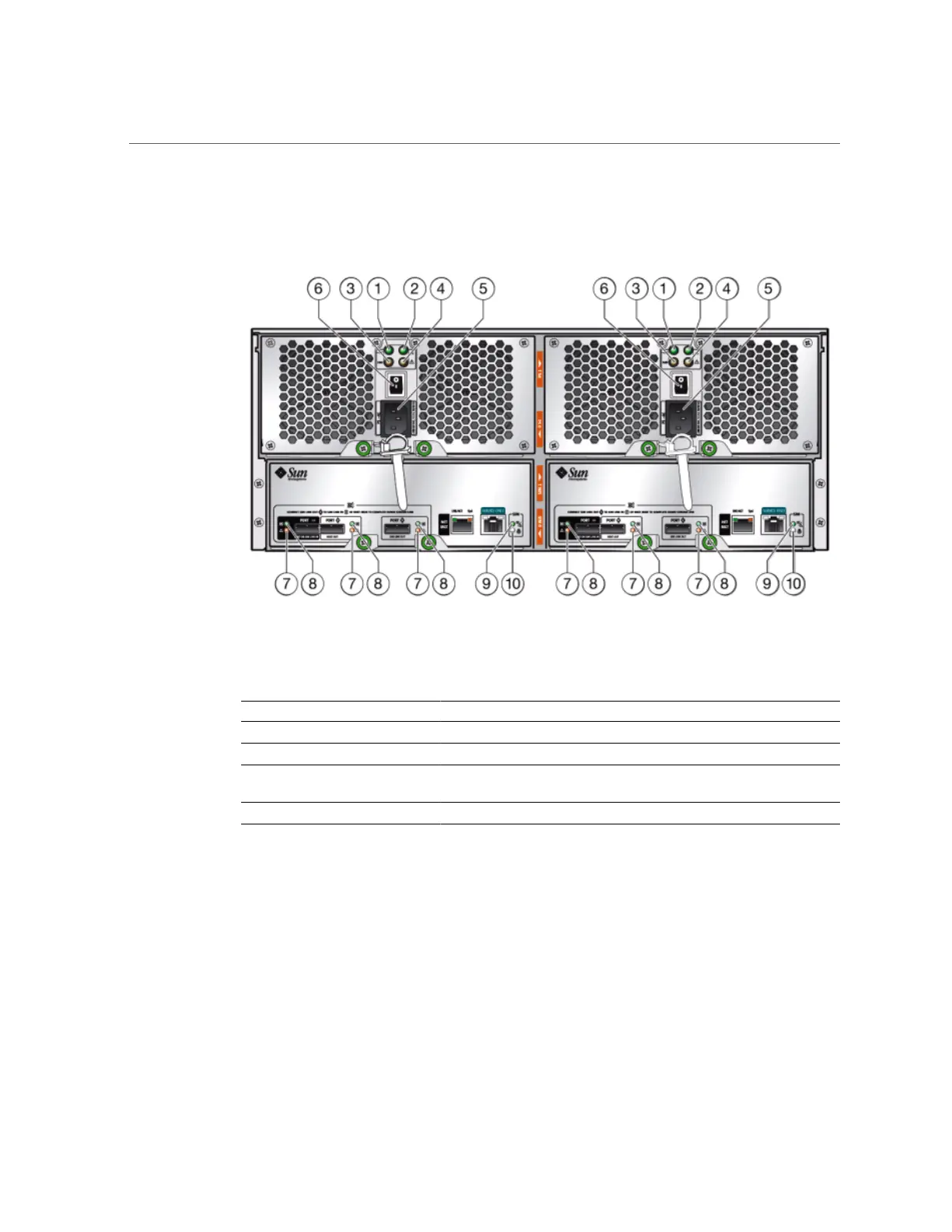

FIGURE 20
Sun Disk Shelf SIM Board Indicators
Figure Legend
1 AC power indicator 2 DC power indicator 3 Fan fault indicator
4 Power supply fault indicator 5 Universal power connector 6 Power switch
7 Port fault indicator 8 Port OK indicator 9 SIM board OK indicator (green)/
SIM board fault indicator (amber)
10 SIM locator indicator
36 Oracle ZFS Storage Appliance Installation Guide • December 2016
