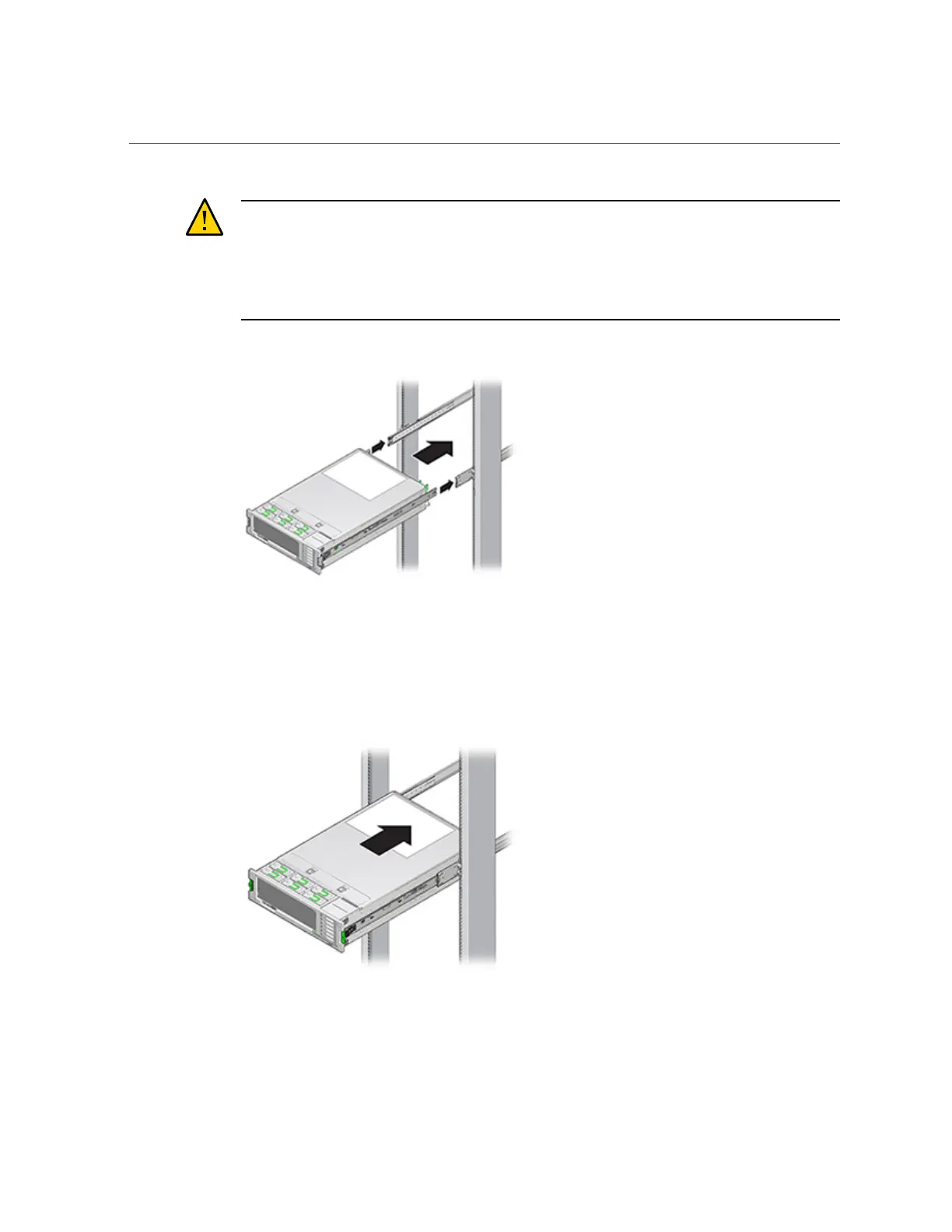

Installing a ZS4-4 or ZS3-4 onto the Rack Slide Rails
Caution - When inserting the controller into the slide rail, ensure that both the top and bottom
mounting lips of the mounting brackets are inserted into the slide rail. The controller should
slide forward and backward easily if correctly installed. If the unit does not slide easily, ensure
that each mounting lip is inserted properly. If the mounting brackets are not inserted properly,
the unit may fall when removing it from the rack, causing equipment damage and possibly
personal injury.
5.
Simultaneously push and hold the green slide-rail release buttons on each
mounting bracket while you push the controller into the rack. Continue pushing
until the slide-rail locks (on the front of the mounting brackets) engage the slide-
rail assemblies with an audible click.
132 Oracle ZFS Storage Appliance Installation Guide • December 2016
