Overview of Disk Shelves
FIGURE 2

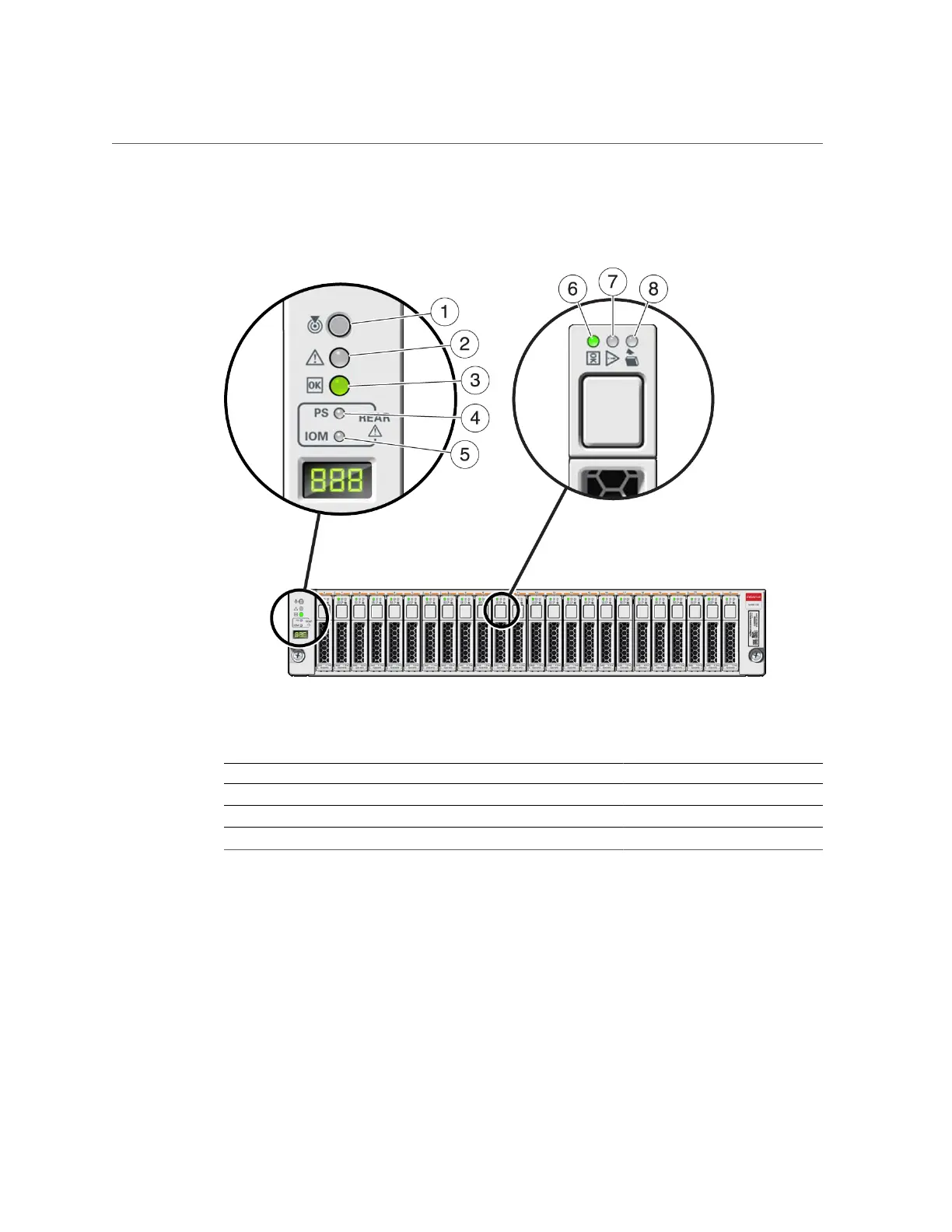

DE3-24P Status Indicators (Front View)
Figure Legend
1 Locate indicator 2 Service required indicator 3 OK indicator
4 Power supply fault indicator 5 SAS I/O Module fault indicator 6 Power/Activity indicator
7 Drive service required indicator 8 Ready-to-remove indicator
