Overview of Disk Shelves

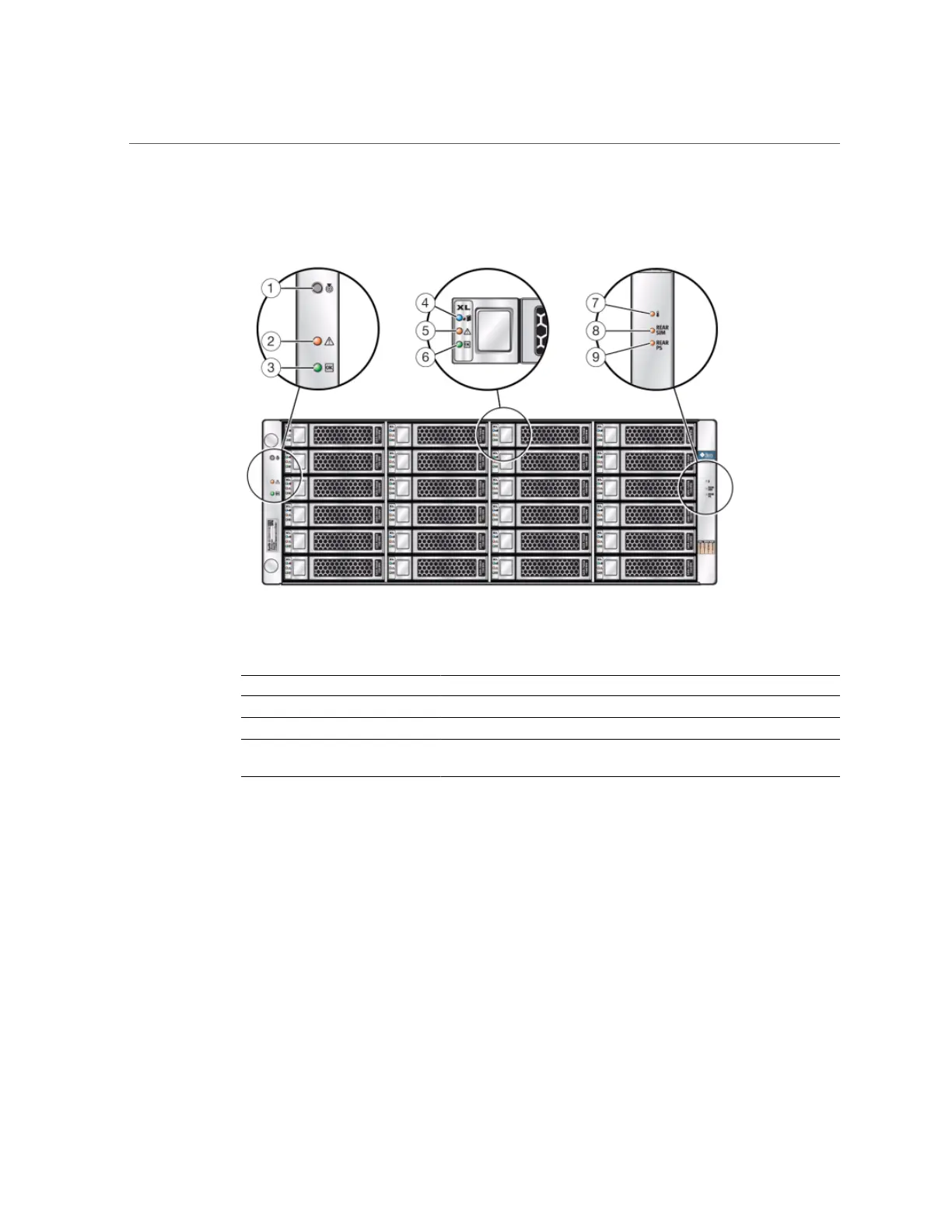

FIGURE 18
Sun Disk Shelf Status Indicators (Front View)
Figure Legend
1 Locate button and indicator 2 System fault indicator 3 System power indicator
4 Disk ready to be removed indicator 5 Disk fault indicator 6 Disk activity indicator
7 Over temperature warning
indicator
8 SIM board fault indicator 9 Power supply fault indicator
34 Oracle ZFS Storage Appliance Installation Guide • December 2016
