Installing a DE3-24P Disk Shelf
4.

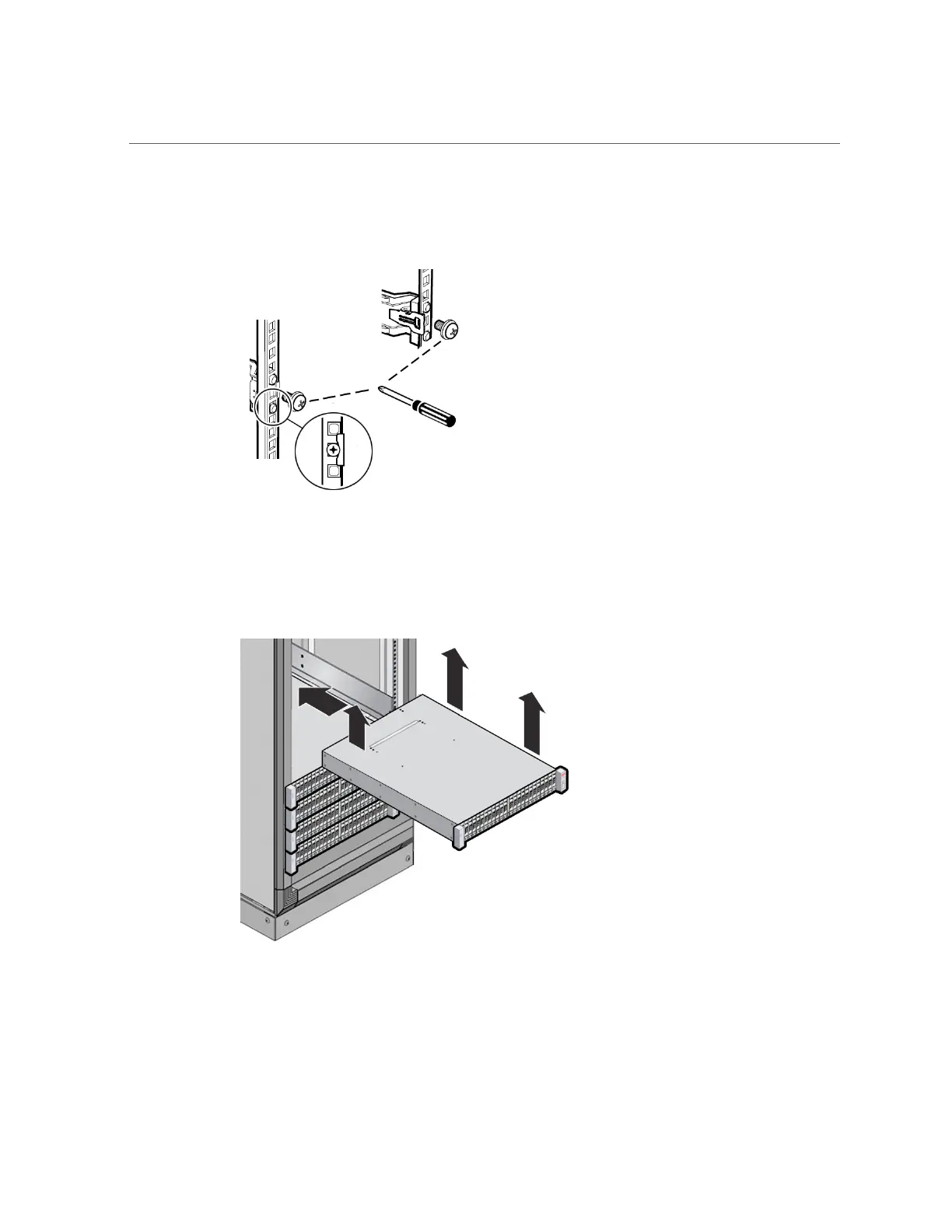

Install one screw through the rack and into the rear of each rail.
5.
Using a mechanical lift or two people, one at each side of the disk shelf, carefully
lift and rest the shelf on the bottom ledge of the left and right rails. Do not lift
using the power supply handles.
6.
Carefully slide the disk shelf into the cabinet. Ensure that it is fully seated within
the rails. If removing the disk shelf to reseat it, support it at all times.
76 Oracle ZFS Storage Appliance Installation Guide • December 2016
