Installing a DE2-24P Disk Shelf
a.
Use the T20 Torx driver to remove the rail location pegs from the front and
rear of the rails.
b.

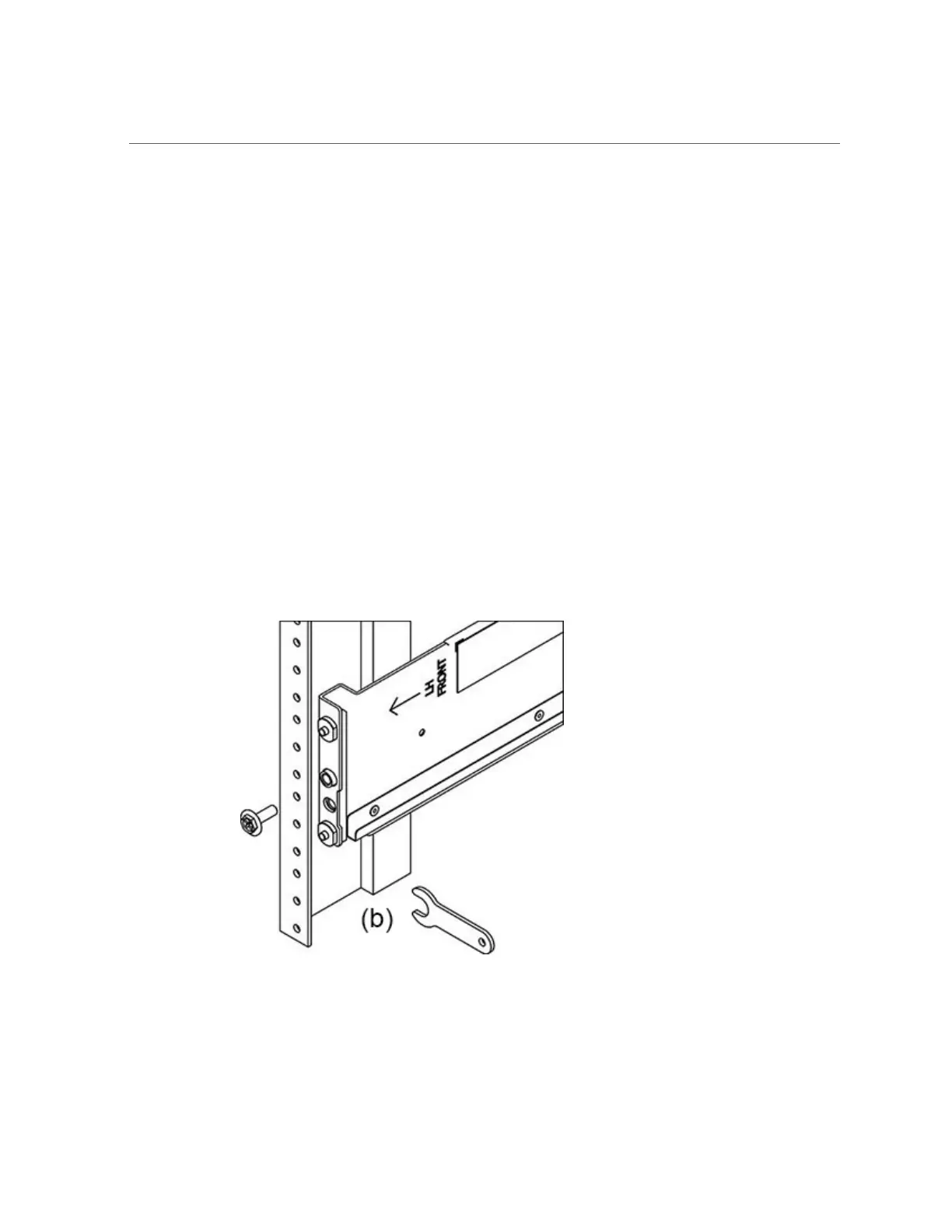

Use the supplied wrench to insert two pins into each end of the rails, in the
same location where the location pegs were removed.
c.
Position the front of the rails inside the cabinet, with the rail flange inside of
the cabinet flange, and the rail label facing the inside of the cabinet.
The pins should be fully located within the rack holes.
d.
Insert and tighten one screw through the front of the rack and into the top
hole in the rails.
e.
Adjust the rail lengths to fit, and locate the rear pins inside the
corresponding rear rack holes.
f.
Insert and tighten one screw through the back of the rack and into the back
of the rails.
86 Oracle ZFS Storage Appliance Installation Guide • December 2016
