OPTIMOD-FM 8400 TECHNICAL DATA
6-31
1525 Alvarado Street
San Leandro, CA 94577
SIZE
D
A
C
A
12345678
12345678
D
C
B
B
D
Schematic - No Scale Sheet of
Created:
Modified:
Printed:
Checked:
Released:
Draftsman:
>>> THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF ORBAN AND IS NOT TO BE COPIED OR DISTRIBUTED WITHOUT THE
WRITEN CONSENT OF AN OFFICER OF ORBAN. THE RECEIPT OR POSSESSION OF THIS DOCUMENT DOES NOT CONVEY ANY RIGHTS
TO REPRODUCE IT, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE, OR SELL ANYTHING INCORPORATING THE CONCEPTS AND
DETAILS DISCLOSED BY IT. SUCH CONCEPTS AND DETAILS ARE NOT TO BE USED OTHER THAN FOR THE BENEFIT OF ORBAN.
Drawing No:Project: Rev.

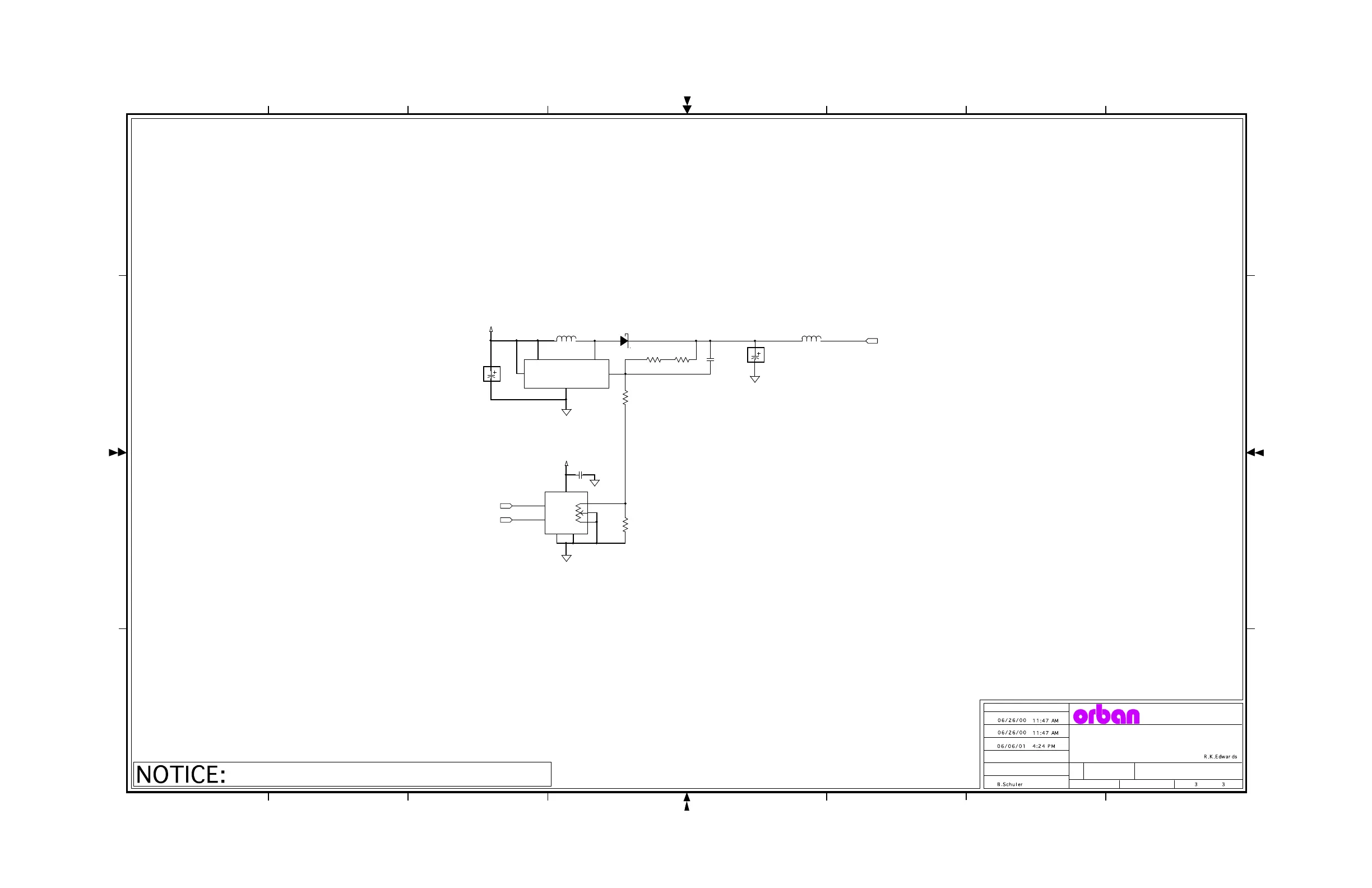

LCD Contrast Adj Supply
8400 Interface Board
8400
62095.000.02
D1
L3
IND,1812-564K
560uH
DN12564TR-ND DigiKey
12
C16
10UF/35V TANT
12
C17
100pF NPO
12
C18
0.1uF
R23
1.21M
DGND
DGND
DGND
DGND
+5VD
+5VD
1-8B
1-7D
1-7D
R26
100.0K 1%
L2
15uH
12
C14
15UF/20V
/SHDN FB
GND
Vin SW
5
1
34
2
U6
LT1613CS5 DC/DC
-INC
U/-D
Vdd
L
H
GND
/CS
W
1
2
7
6
5
3
8
4
U7
MAX5160LEUA
R22
1.21M
R24
100.0K 1%
CONT_/INC
CONT_U/D
LCD_VDD
To Next Page
