Orban OPTIMOD 8400 - Page 241

OPTIMOD-FM 8400 TECHNICAL DATA
6-35
1525 Alvarado Street
San Leandro, CA 94577
SIZE
D
A
C
A
12345678
12345678
D
C
B
B
D
Schematic - No Scale Sheet of
Created:
Modified:
Printed:
Checked:
Released:
Draftsman:
>>> THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF ORBAN AND IS NOT TO BE COPIED OR DISTRIBUTED WITHOUT THE
WRITEN CONSENT OF AN OFFICER OF ORBAN. THE RECEIPT OR POSSESSION OF THIS DOCUMENT DOES NOT CONVEY ANY RIGHTS
TO REPRODUCE IT, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE, OR SELL ANYTHING INCORPORATING THE CONCEPTS AND
DETAILS DISCLOSED BY IT. SUCH CONCEPTS AND DETAILS ARE NOT TO BE USED OTHER THAN FOR THE BENEFIT OF ORBAN.
NOTICE:
Drawing No:Project: Rev.
Pin 4 is audio shield in cable.
Ties to chassis (bracket) by
way of metal bushing on Pot
R12 (mounting tabs soldered).
(Part of panel # 32131.000.03)
09/01/99
4:34 PM
04/18/00
3:37 PM
04/16/01 3:00 PM
B. Coykendall
B. Schuler
62090.000.02
11
8400

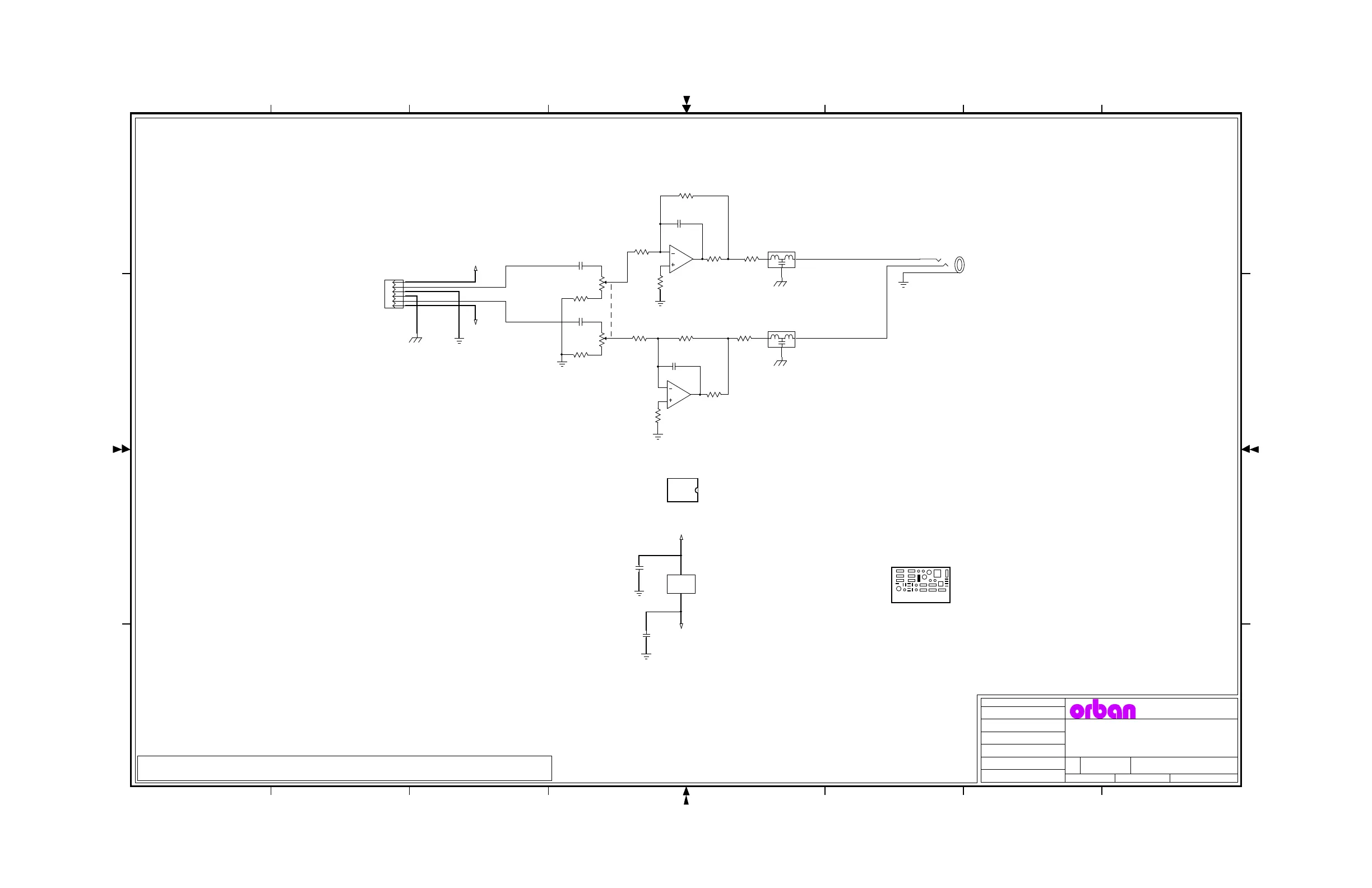

8400 Headphone Board
From Interface Board
12
5%
C1
1uF, 50v
1
2
3
20%
1000pF,50v
T-filter
L1
1%
R1
10.0K
110.0
R2
1%
10.0
R3
1%
10.0
R4
1%
12
68pF, 100v
5%
C2
1%
R5
10.0K
AGND
12
5%
C3
1uF, 50v
1
2
3
20%
1000pF,50v
T-filter
L2
1%
R6
10.0K
110.0
R7
1%
10.0
R8
1%
10.0
R9
1%
AGND
1%
R10
49.9K
12
68pF, 100v 5%
C4
1%
R11
10.0K
AGND
CwCw
a3
a2
a1b3
b2
b1
Dual Pot
R12
10K 20%
AGND
3
1
2
Headphone Jack
J1
2
3
1
OPA2134PA
aU1
6
5
7
OPA2134PA
bU1
SOCKET
8-PIN
DIP
Socket/DIP8
SU1
84
OPA2134PA
cU1
R13
1%
49.9k
12
C6
20%
0.1uF,50v
AGND
AGND
CHASSIS
CHASSIS
+15vA
-15vA
AGND
-15vA
+15vA
1
2
3
4
5
6
J2
Molex 70545-0040
12
C5
20%
0.1uF,50v
CHASSIS
Ref: PCB
32091.000.02
Left
Right
