51

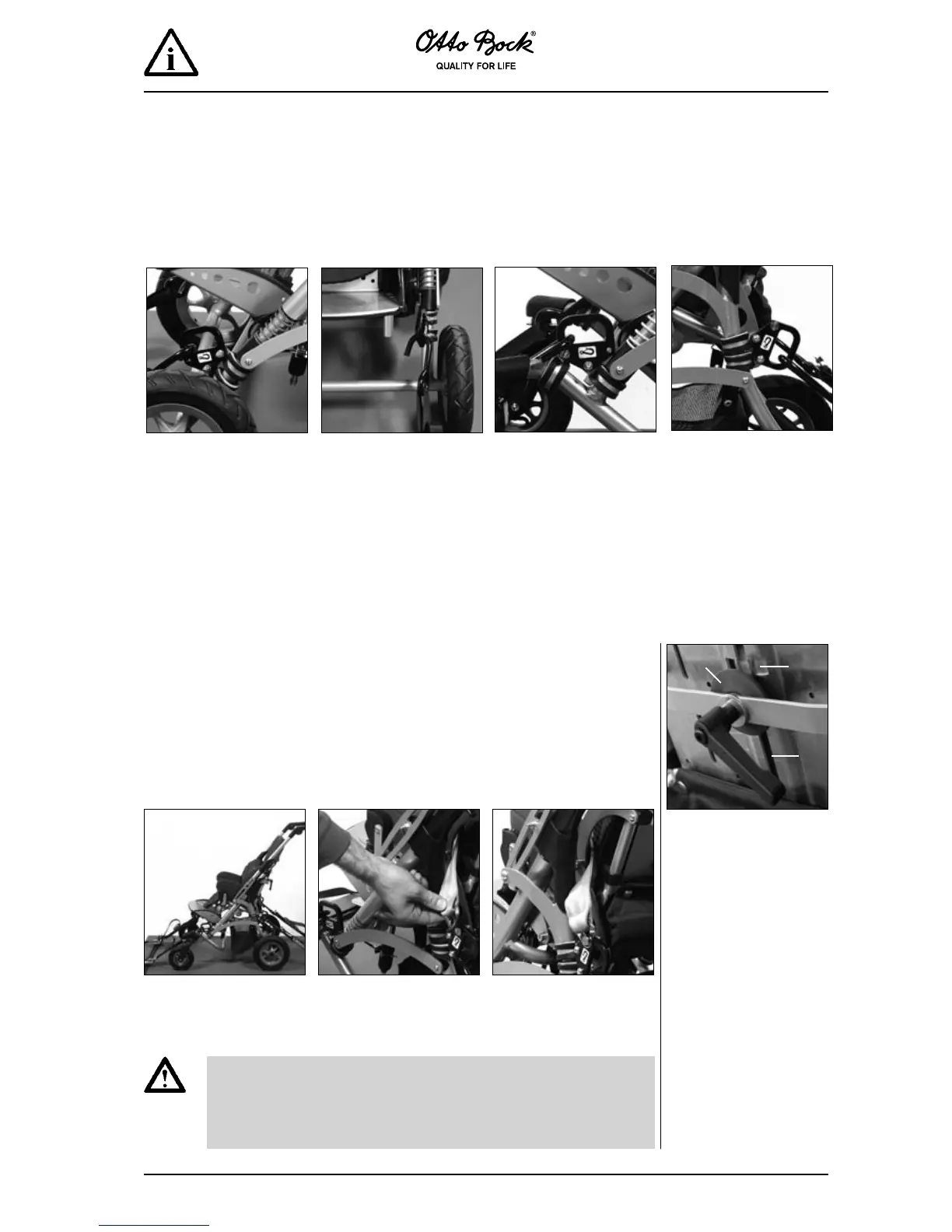

5 Product Specic Instructions - Rehab Buggy
– Kimba Spring –
For assembly of the xation kit HR32909700/HR32919700 you will need the following tools: a ring wrench size
10, an Allen wrench size 4, pointed pliers
Guidance for tting the Pelvic Belt
Assembly tip: Important - Only attach the anchor plates to the frame at the
indicated points, using the pipe clips and screws provided. Use pointed pliers
to keep the pipe clips closed whilst assembling the anchoring plate and tightening
the screws. Do not fully tighten the screws until the pipe clips and anchoring plates
have been positoned correctly. To check this fold the buggy and check the anchor-
ing plates do not make contact with the frame.
Models with rigidly mounted
front wheels
Adjust the spring system to
maximal initial spring tension.
Assemble two D20 pipe clips
around the front frame on either
side of the unit. Then attach the
anchor plates using the screws
provided so the nuts and hook
symbol are facing outwards.
Adjust the position of the front
anchoring plates by rotating
them inwards by about 15°
-Folding test!
All models
Assemble two D25 pipe clips
around the rear frame on either
side of the unit and attach the
anchor plates using the screws
provided so the nuts are on the
inside and the hook symbol is
facing outwards.
Attaching the anchoring points to the product
This rehab buggy is equipped with back angle and seat tilt adjustment.
Before starting you must close the locking mechanism of the back angle
adjustment. Using the seat tilt adjustment you then bring the backrest
into almost upright position . Observe the specications in the User
Instructions Manual for this rehab buggy.
Models with swiveled front
wheels
Adjust the spring system to
maximal initial spring tension.
Assemble two D25 pipe clips
around the front frame on either
side of the unit. Then attach the
anchor plates using the screws
provided so the nuts and hook
symbol are facing outwards.
Kimba Spring showing the cor-
rect postioning of the tie-down
straps.
Locking of the back angle
adjustment
Loosen the screws. Pull the
locking disk . Never unlock
the locking mechanism during
transport in a motor vehicle.
A
C
B
Pass one end of the pelvic belt through under the folding lever.
Now clip the pelvic belt buckle onto the "Anchor Pin" on the side
frame anchoring plate. Then repeat on the opposite side for the
other half of the pelvic belt.
