55
6 Product Specic Instructions – Power Wheelchairs
– A200 –

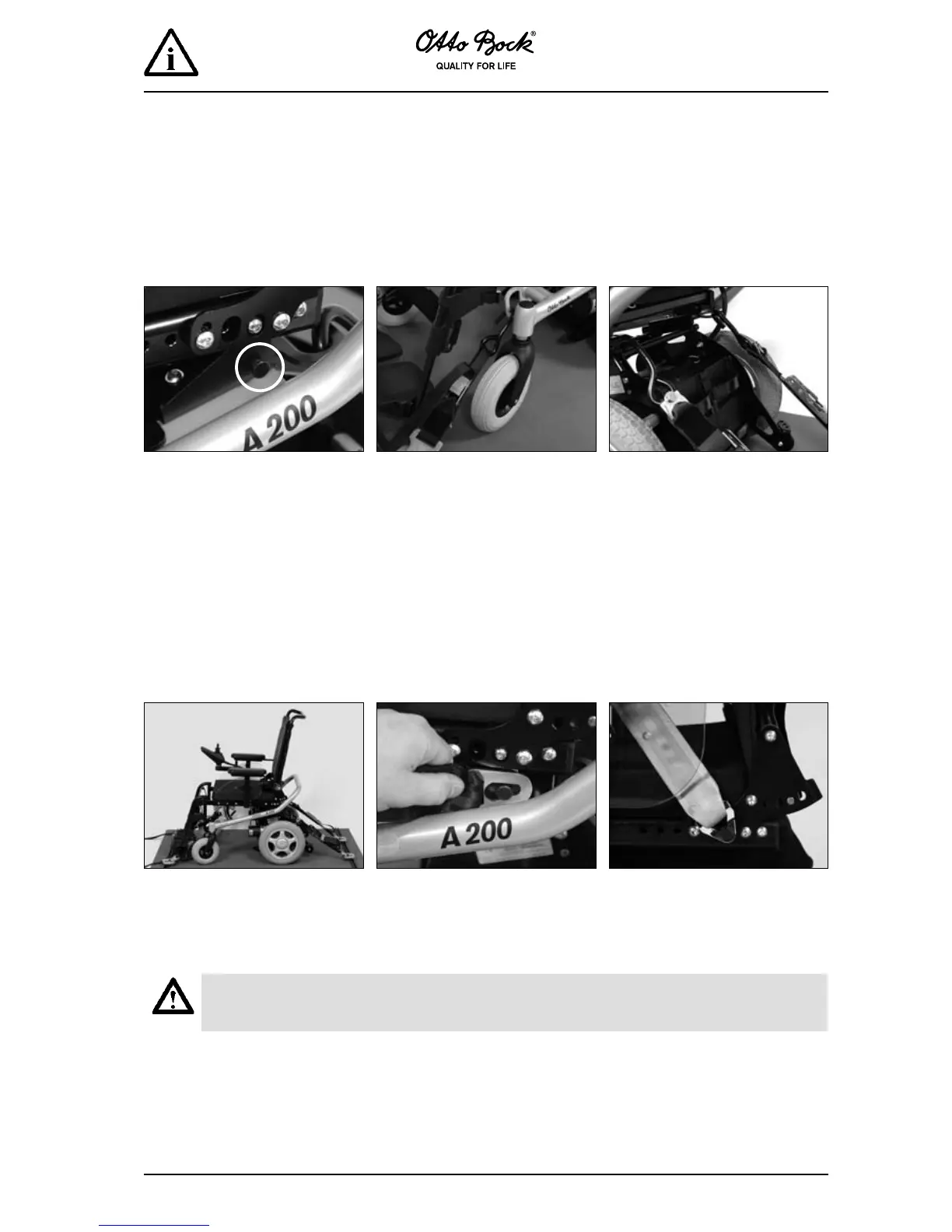

For assembly of the 491S00=SK024 xation kit you will need the following tools:
ring wrenches sizes 13 and 17, Allen wrench size 10
On the left and right side, screw the
included „Anchor Pins“ into the bore
holes provided in the seat angle.
No extra brackets are required
for the front of the wheelchair as
the cross tube has two integral
anchoring brackets.
No extra brackets are required
for the rear of the wheelchair as
the seat angle has two integral
anchoring brackets.
Pass one end of the pelvic belt through the space between the armrest
skirt guard and seat cushion. Now clip the pelvic belt buckle onto the
"Anchor Pin" previously screwed to the backrest side frame anchoring
plate. Then repeat on the opposite side for the other half of the pelvic belt.
Attaching the anchoring points to the product
A200 showing the correct position-
ing of the tie-down straps.
This power wheelchair is equipped with back angle adjustment. Before starting your wheelchair
adjust the backrest to almost upright position and check if the locking mechanism on either side
has engaged. Observe the specications in the Instructions for Use Manual of the power wheelchair.
Guidance for tting the Pelvic Belt
